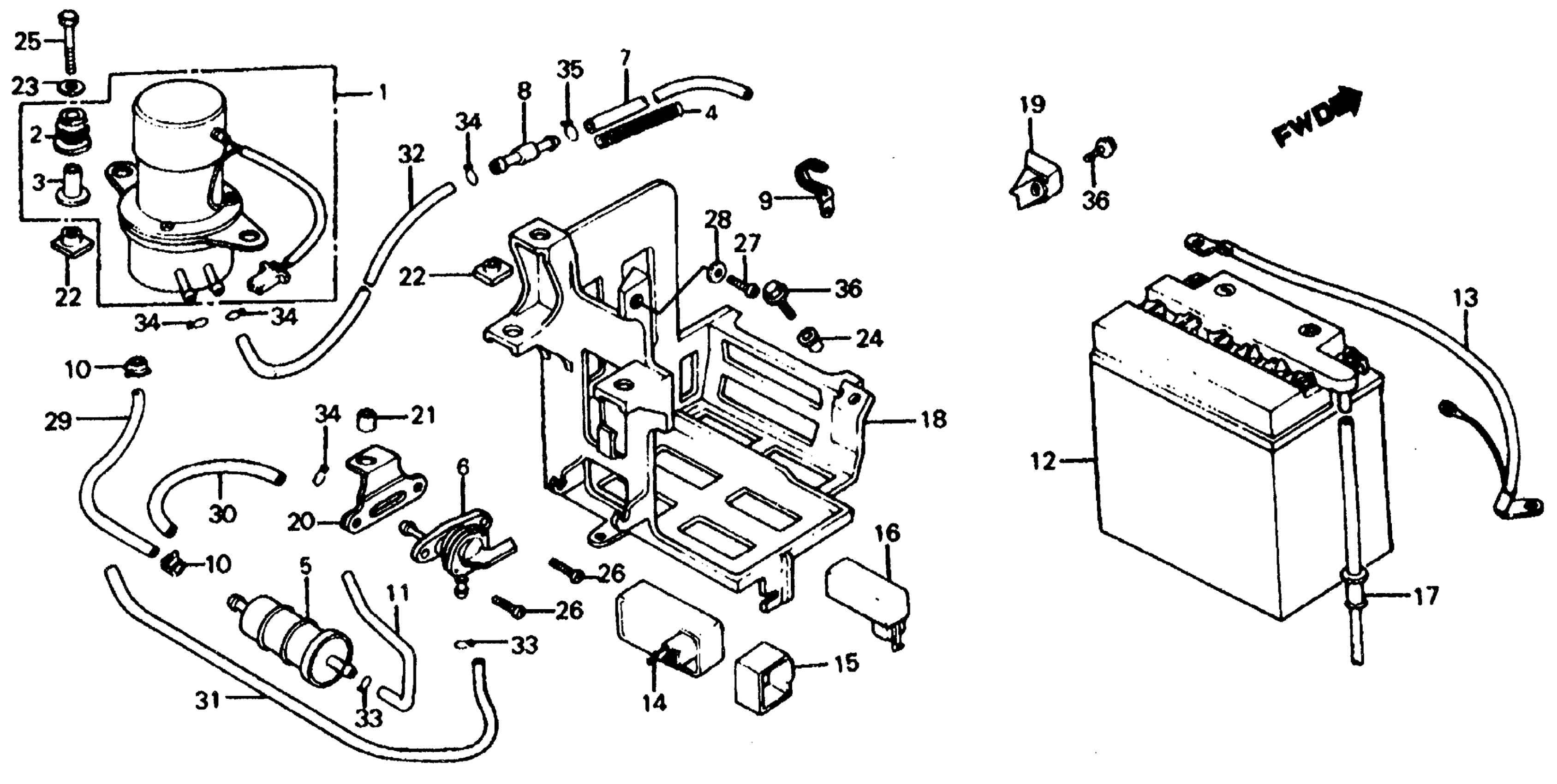

Honda VF700CA (84) MAGNA, JPN, VIN# JH2RC210-EM000002 TO JH2RC210-EM014552 BATTERY + FUEL PUMP 84 Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MB1-025

Unavailable

2

RUBBER, FUEL PUMP SETTING (NOT AVAILABLE)

16711-605-300

Unavailable

3

COLLAR, FUEL PUMP DISTANCE

16712-MB1-000

Unavailable

4

SPRING, FUEL TUBE COVER

16715-MB1-000

Unavailable

5

FILTER, FUEL

16900-371-004

$30.23

6

PETCOCK ASSY. (NOT AVAILABLE)

16950-MB1-005

Unavailable

7

TUBE C, FUEL (NOT AVAILABLE)

16955-MB1-701

Unavailable

8

JOINT, FUEL TUBE (NOT AVAILABLE)

16959-MB1-000

Unavailable

9

CLAMP, FUEL TUBE

16960-MB1-000

Unavailable

10

CLIP, FUEL HOSE

16969-MB1-000

$5.10

11

TUBE B, FUEL (NOT AVAILABLE)

17512-MB1-700

Unavailable

12

BATTERY (YB14-A2) This part replaces 31500-MB1-671.

31500-MW3-720AH

$70.40

12

BATTERY (YB14-A2) This part replaces 31500-MB1-672.

31500-MW3-720AH

$70.40

12

BATTERY (YB14-A2) This part replaces 31500-MW3-720.

31500-MW3-720AH

$70.40

13

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MB1-000

Unavailable

14

RELAY, FUEL CUT

36100-MB1-701

$90.87

15

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

16

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

17

TUBE, BATTERY

31502-MB1-405

Unavailable

17

TUBE, BATTERY BREATHER This part replaces 50238-MB1-000.

31502-MB1-405

Unavailable

18

BOX, BATTERY

50320-MB1-700

Unavailable

19

PLATE, BATTERY HOLDER

50322-MB1-700

$7.26

20

STAY, PETCOCK

50330-MB1-000

$7.95

21

COLLAR, FUEL VALVE STAY

50331-MB1-000

Unavailable

22

NUT, SPECIAL (6MM)

90302-MB1-000

$6.08

23

WASHER (6MM) (NOT AVAILABLE)

90506-634-000

Unavailable

24

WASHER (6X20)

90512-300-000

$3.08

25

BOLT, HEX. (6X32) This part replaces 92000-06032-0H.

92101-06032-0H

Unavailable

25

BOLT, HEX. (6X32)

92101-06032-0H

Unavailable

26

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, PAN (6X22)

93500-06022-0A

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

30

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

31

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

32

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

33

CLIP, TUBE (A11) (NOT AVAILABLE)

95002-01110

Unavailable

34

CLIP, TUBE (A12)

95002-01120

$2.75

35

CLIP, TUBE (B10)

95002-02100

$1.90

36

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

36

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
