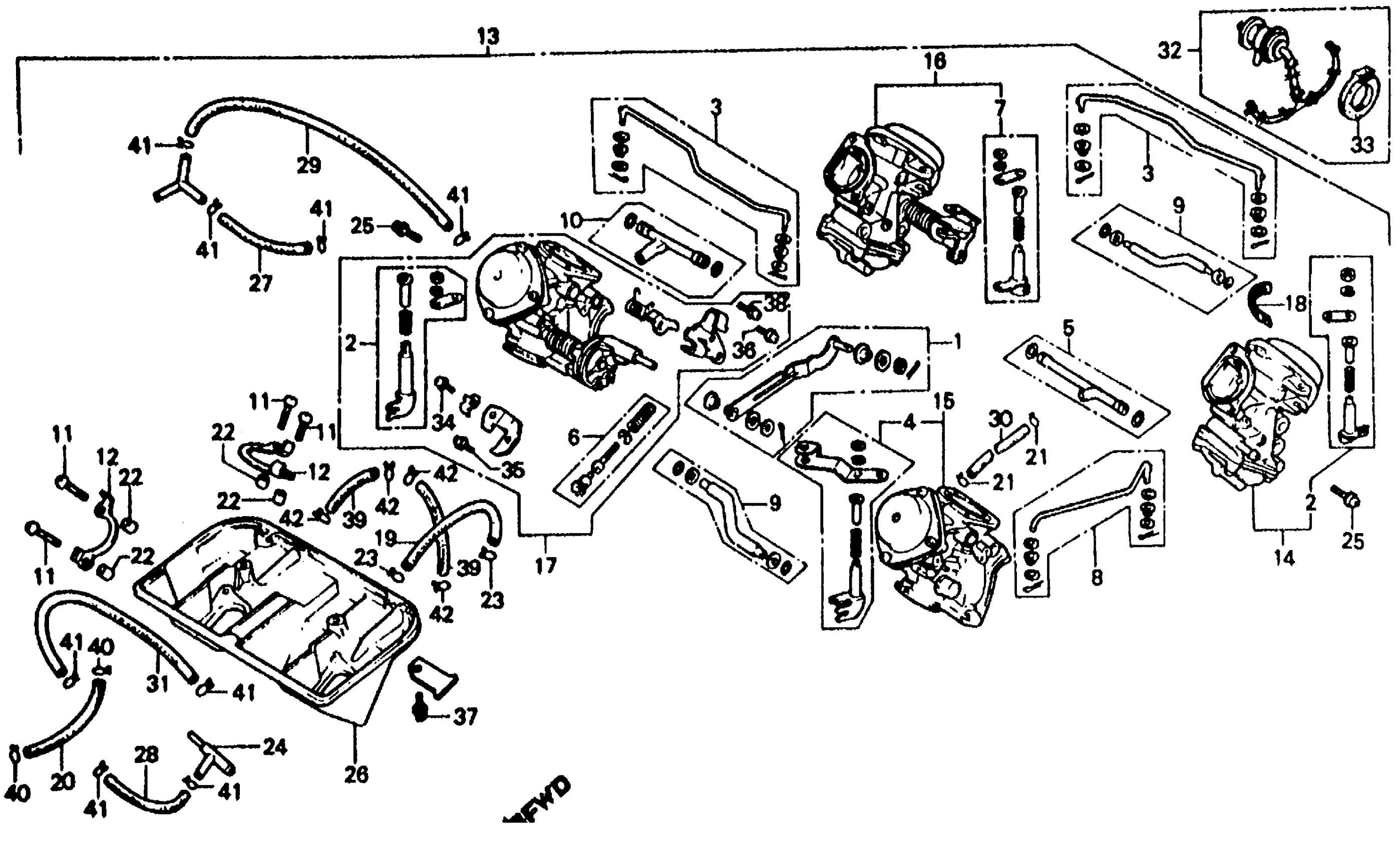

Honda VF500FAC (86) 500 INTERCEPTOR, JPN, VIN# JH2PC121-GM200001 TO JH2PC121-GM202293 CARBURETOR III Diagram

#

Description
Price

1

LEVER SET A, LINK

16017-KE7-013

Unavailable

2

LINK SET, STARTER (NOT AVAILABLE)

16018-KE7-003

Unavailable

3

ROD SET A, STARTER LINK (NOT AVAILABLE)

16019-KE7-003

Unavailable

4

LINK B SET, STARTER (NOT AVAILABLE)

16025-KE7-003

Unavailable

5

JOINT SET, FUEL

16027-MB6-671

Unavailable

6

SCREW SET B

16028-KE7-003

Unavailable

7

LINK C SET, STARTER (NOT AVAILABLE)

16031-KE7-003

Unavailable

8

ROD SET, STARTER LINK

16032-MF2-711

Unavailable

9

JOINT SET, FUEL

16034-MF2-711

Unavailable

10

JOINT SET, FUEL

16047-KE7-003

Unavailable

11

SCREW, PAN

16080-MB0-671

$2.16

12

WASHER, TONGUED (NOT AVAILABLE)

16090-KE7-003

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-MM1-752.

16100-MM1-753

Unavailable

13

CARBURETOR ASSY.

16100-MM1-753

Unavailable

14

CARBURETOR ASSY. 1

16101-MM1-751

Unavailable

15

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-MM1-751

Unavailable

16

CARBURETOR ASSY. 3

16103-MM1-751

Unavailable

17

CARBURETOR ASSY. 4

16104-MM1-751

Unavailable

19

TUBE

16143-MM1-751

Unavailable

20

TUBE

16144-MM1-751

Unavailable

21

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.73

22

PIN, KNOCK

16178-MB0-671

$4.98

23

CLIP, TUBE

16179-MB6-671

Unavailable

24

T-JOINT This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

24

T-JOINT

17194-MN5-000

$12.39

25

SCREW, PAN

16181-KE7-003

Unavailable

26

BASE, AIR CLEANER (NOT AVAILABLE)

16188-MM1-751

Unavailable

27

TUBE

16192-MM1-751

Unavailable

28

TUBE

16191-ML7-711

Unavailable

28

TUBE This part replaces 16195-MM1-751.

16191-ML7-711

Unavailable

29

TUBE

16198-MM1-751

Unavailable

30

TUBE This part replaces 16199-KE7-003.

16143-KAZ-405

Unavailable

31

TUBE

16199-MM1-751

Unavailable

32

VALVE ASSY., AIR VENT CONTROL

17300-MM1-751

Unavailable

33

RUBBER, SETTING

17305-MJ4-771

$12.46

34

SCREW, PAN (4X12)

93500-04012-0A

$1.49

34

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

35

SCREW-WASHER (4X8)

93892-04008-08

$1.49

36

SCREW-WASHER (4X16)

93892-04016-08

$1.49

37

SCREW-WASHER (5X8)

93892-05008-08

$1.49

38

SCREW-WASHER (5X12)

93892-05012-08

$1.49

39

BULK HOSE, FUEL (7.5X8000) (7.5X110) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$103.82

40

CLIP, TUBE (B7)

95002-02070

$1.80

41

CLIP, TUBE (B8)

95002-02080

$1.80

42

CLIP, TUBE (B12)

95002-02120

$2.00
