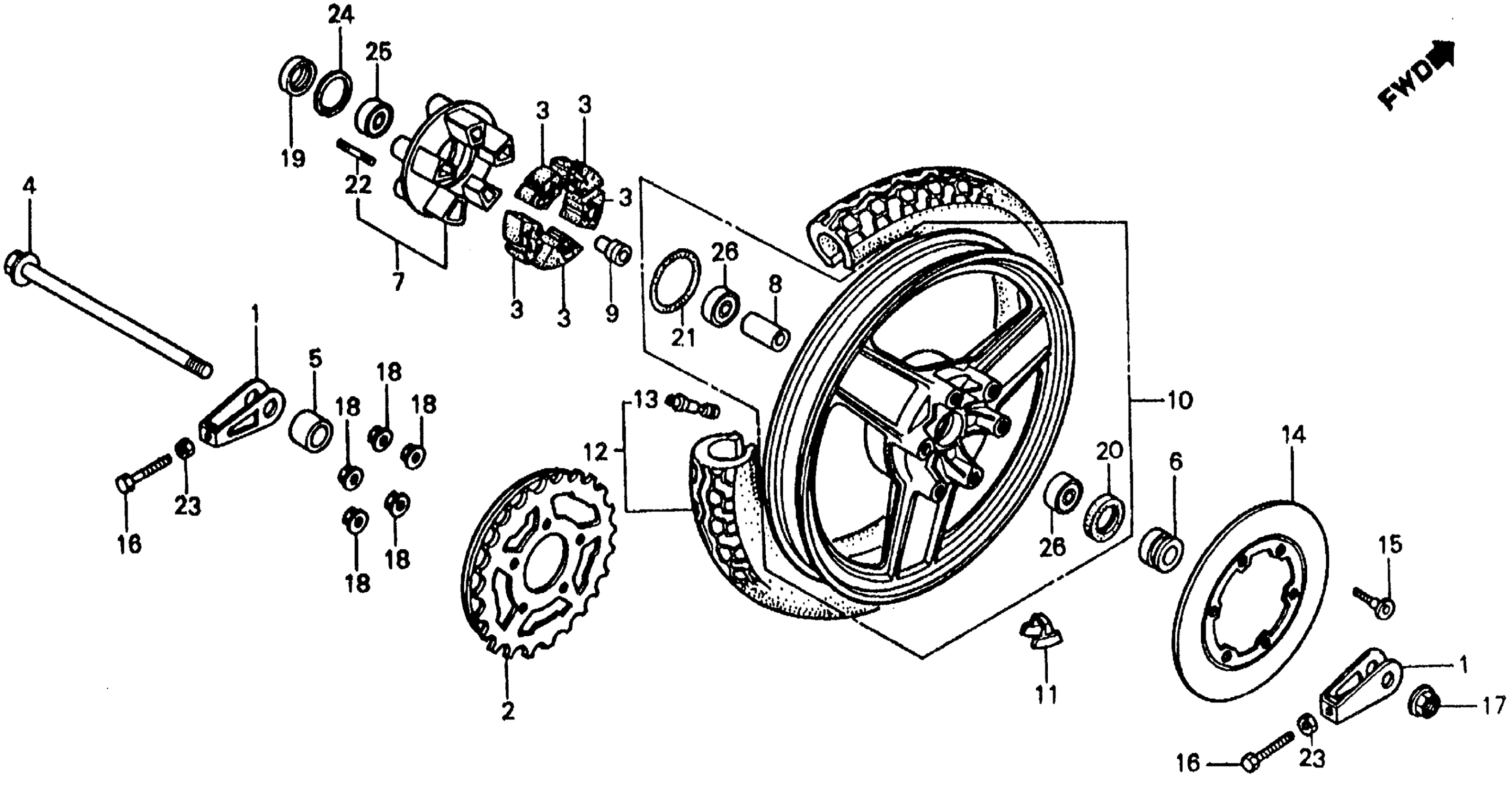

Honda VF500FAC (85) 500 INTERCEPTOR, JPN, VIN# JH2PC121-FM100001 TO JH2PC121-FM101566 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN

40543-MA6-000

Unavailable

2

SPROCKET, FINAL DRIVEN (44T) This part replaces 41200-MF2-000.

41200-MN4-000

Unavailable

2

SPROCKET, FINAL DRIVEN (44T) This part replaces 41200-MJ8-000.

41200-MN4-000

Unavailable

2

SPROCKET, FINAL DRIVEN (44T)

41200-MN4-000

Unavailable

3

DAMPER, RR. WHEEL

41241-MA6-000

$17.42

4

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-KE7-000

Unavailable

5

COLLAR, RR. WHEEL SIDE

42311-KE7-010

Unavailable

6

COLLAR, RR. BRAKE SIDE

42313-MJ6-000

Unavailable

7

FLANGE ASSY., FINAL DRIVEN

42610-KE7-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE

42620-KAZ-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MC4-000.

42620-KAZ-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MK5-680.

42620-KAZ-000

Unavailable

9

COLLAR B, RR. AXLE DISTANCE

42625-MA6-000

Unavailable

10

WHEEL, RR.

42650-MF2-670

Unavailable

11

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

11

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

11

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

11

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

12

TIRE ASSY., RR. (110/90-18) (61H K627) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MF2-671.

42710-MF2-672

Unavailable

12

TIRE ASSY., RR. (110/90-18) (61H K627) (DUNLOP) (NOT AVAILABLE)

42710-MF2-672

Unavailable

13

VALVE, RIM (BS)

42753-425-003

$11.00

13

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

14

DISK, RR. BRAKE (NOT AVAILABLE)

43351-MF2-000

Unavailable

15

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

15

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

16

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

17

NUT, RR. AXLE U (16MM)

90305-MC0-003

Unavailable

18

NUT, HEX. (10MM)

90308-357-000

$4.85

19

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

19

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

19

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

20

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

20

DUST SEAL (30X47X8)

91253-443-762

$12.13

21

O-RING (61X2)

91302-MA6-003

$5.17

22

BOLT, STUD (10X45)

92716-10045-0E

$2.75

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

24

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

24

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

25

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

26

BEARING, RADIAL BALL (6303UU)

96150-63030-10

$27.83
