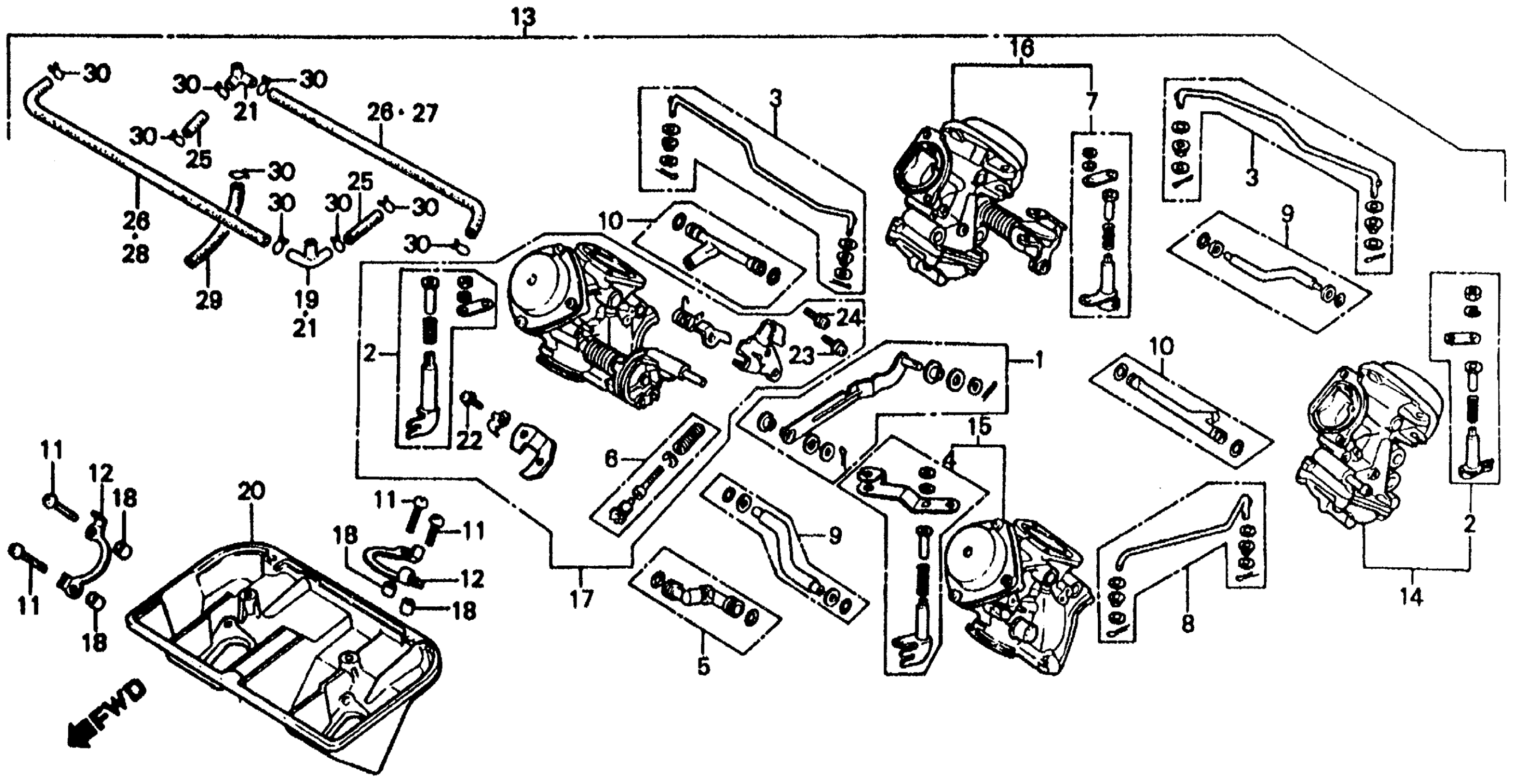

Honda VF500FAC (84) 500 INTERCEPTOR, JPN, VIN# JH2PC121-EM000005 TO JH2PC121-EM001814 CARBURETOR I Diagram

#

Description
Price

1

LEVER SET A, LINK

16017-MJ8-004

Unavailable

2

LINK A SET, STARTER This part replaces 16018-MB0-671.

16018-MK3-771

Unavailable

2

LINK A SET, STARTER

16018-MK3-771

Unavailable

3

ROD SET A, STARTER LINK

16019-MJ8-004

Unavailable

4

LINK B SET, STARTER

16025-MJ8-004

Unavailable

5

JOINT SET,FUEL This part replaces 16027-MJ8-004.

16027-KE7-013

Unavailable

6

SCREW SET B

16028-KE7-003

Unavailable

7

LINK C SET, STARTER

16031-MJ8-004

Unavailable

8

ROD SET B, STARTER LINK

16032-MJ8-004

Unavailable

9

JOINT SET, FUEL (NOT AVAILABLE)

16034-KE7-003

Unavailable

10

JOINT SET, FUEL

16047-KE7-003

Unavailable

11

SCREW, PAN (NOT AVAILABLE)

16080-KE8-004

Unavailable

12

WASHER, TONGUED

16090-MJ8-004

Unavailable

13

CARBURETOR ASSY. | Use up to Engine SN 2004314

16100-MF2-681

Unavailable

13

CARBURETOR ASSY. | Use from Engine SN 2004315

16100-MF2-682

Unavailable

13

CARBURETOR ASSY. | Use from Engine SN 2004315

16100-MF2-683

Unavailable

14

CARBURETOR ASSY. 1 | Use up to Engine SN VD57A A

16101-MF2-681

Unavailable

14

CARBURETOR ASSY. 1 | Use from Engine SN VD57A B

16101-MF2-681

Unavailable

14

CARBURETOR ASSY. 1 | Use from Engine SN VD57A B

16101-MF2-682

Unavailable

15

CARBURETOR ASSY. 2 | Use up to Engine SN VD57A A

16102-MF2-681

Unavailable

15

CARBURETOR ASSY. 2 | Use from Engine SN VD57A B

16102-MF2-681

Unavailable

15

CARBURETOR ASSY. 2 | Use from Engine SN VD57A B

16102-MF2-682

Unavailable

16

CARBURETOR ASSY. 3 | Use up to Engine SN VD57A A

16103-MF2-681

Unavailable

16

CARBURETOR ASSY. 3 | Use from Engine SN VD57A B

16103-MF2-681

Unavailable

16

CARBURETOR ASSY. 3 | Use from Engine SN VD57A B

16103-MF2-682

Unavailable

17

CARBURETOR ASSY. 4 | Use up to Engine SN VD57A A

16104-MF2-681

Unavailable

17

CARBURETOR ASSY. 4 | Use from Engine SN VD57A B

16104-MF2-681

Unavailable

17

CARBURETOR ASSY. 4 | Use from Engine SN VD57A B

16104-MF2-682

Unavailable

18

PIN, KNOCK

16178-MB0-671

$4.98

19

T-JOINT | Use from Engine SN VD57A B This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

19

T-JOINT | Use from Engine SN VD57A B

17194-MN5-000

$12.39

20

BASE, AIR CLEANER

16188-MF2-004

Unavailable

21

JOINT, VACUUM TUBE (C) (NOT AVAILABLE) | Use up to Engine SN VD57A A

17203-MG9-640

Unavailable

22

SCREW-WASHER (4X8)

93892-04008-08

$1.49

22

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

23

SCREW-WASHER (4X16)

93892-04016-08

$1.49

23

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

24

SCREW-WASHER (5X12)

93892-05012-08

$1.49

24

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

25

BULK HOSE, FUEL (3.5X3000) (3.5X30)

95001-35003-60M

$20.85

26

BULK HOSE, FUEL (3.5X3000) (3.5X150) | Use up to Engine SN VD57A A

95001-35003-60M

$20.85

27

BULK HOSE, FUEL (3.5X3000) (3.5X240) | Use from Engine SN VD57A B

95001-35003-60M

$20.85

28

BULK HOSE, FUEL (3.5X3000) (3.5X360) | Use from Engine SN VD57A B

95001-35003-60M

$20.85

29

BULK HOSE, FUEL (3.5X3000) (3.5X700)

95001-35003-60M

$20.85

30

CLIP, TUBE (B8)

95002-02080

$1.80
