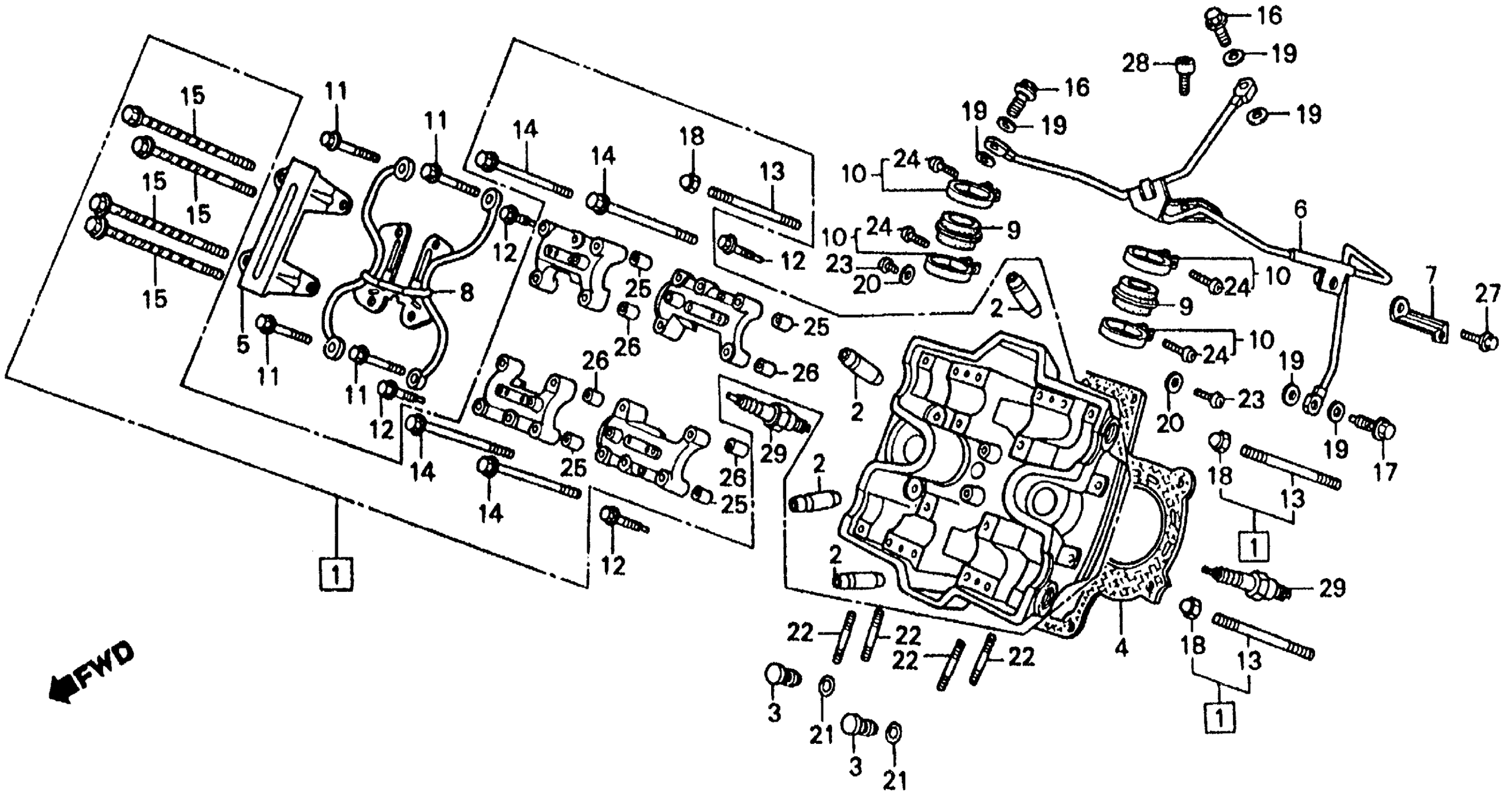

Honda VF500FA (86) 500 INTERCEPTOR, JPN, VIN# JH2PC120-GM200001 TO JH2PC120-GM202293 FRONT CYLINDER HEAD II Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., FR.

12010-MF2-711

Unavailable

2

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

3

CAP, WATER JACKET (NOT AVAILABLE)

12229-KE7-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-MJ8-020.

12251-MJ8-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-MJ8-306

Unavailable

5

GUIDE C, CAM CHAIN (NOT AVAILABLE)

14544-MJ8-010

Unavailable

6

PIPE, OIL FEEDER

15301-MM1-670

Unavailable

7

PLATE, OIL FEEDER PIPE SETTING

15305-MF2-000

Unavailable

8

PIPE, OIL PASSAGE

15311-MF2-710

Unavailable

9

INSULATOR, CARBURETOR

16211-MF2-711

Unavailable

10

BAND, INSULATOR This part replaces 16219-KE7-000.

16219-KE7-010

Unavailable

10

BAND, INSULATOR

16219-KE7-010

Unavailable

11

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

12

BOLT, FLANGE (6X60)

90003-MF2-710

Unavailable

13

BOLT, STUD (8X89)

90005-MF2-710

Unavailable

14

BOLT, UBS (8X130)

90008-KE8-010

Unavailable

15

BOLT, UBS (8X151)

90012-KE8-000

Unavailable

16

BOLT, OIL (10MM)

90044-MF2-710

Unavailable

17

BOLT, OIL CONTROL

90045-MF2-710

Unavailable

18

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

19

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

20

WASHER, SEALING (5MM)

90452-323-000

$1.59

21

O-RING (7X1.7) This part replaces 91303-KE7-003.

91312-107-000

$3.18

21

O-RING (7X1.7)

91312-107-000

$3.18

22

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

22

BOLT, STUD (6X50) This part replaces 92700-06045-0E.

92700-06050-0E

$1.54

22

BOLT, STUD (6X50)

92700-06050-0E

$1.54

23

SCREW, PAN (5X8)

93500-05008-0G

$1.49

24

SCREW, PAN (5X28)

93500-05028-0G

$1.49

25

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

27

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

28

BOLT, SOCKET (6X50)

96700-06050-07

Unavailable

29

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

29

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

29

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

29

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
