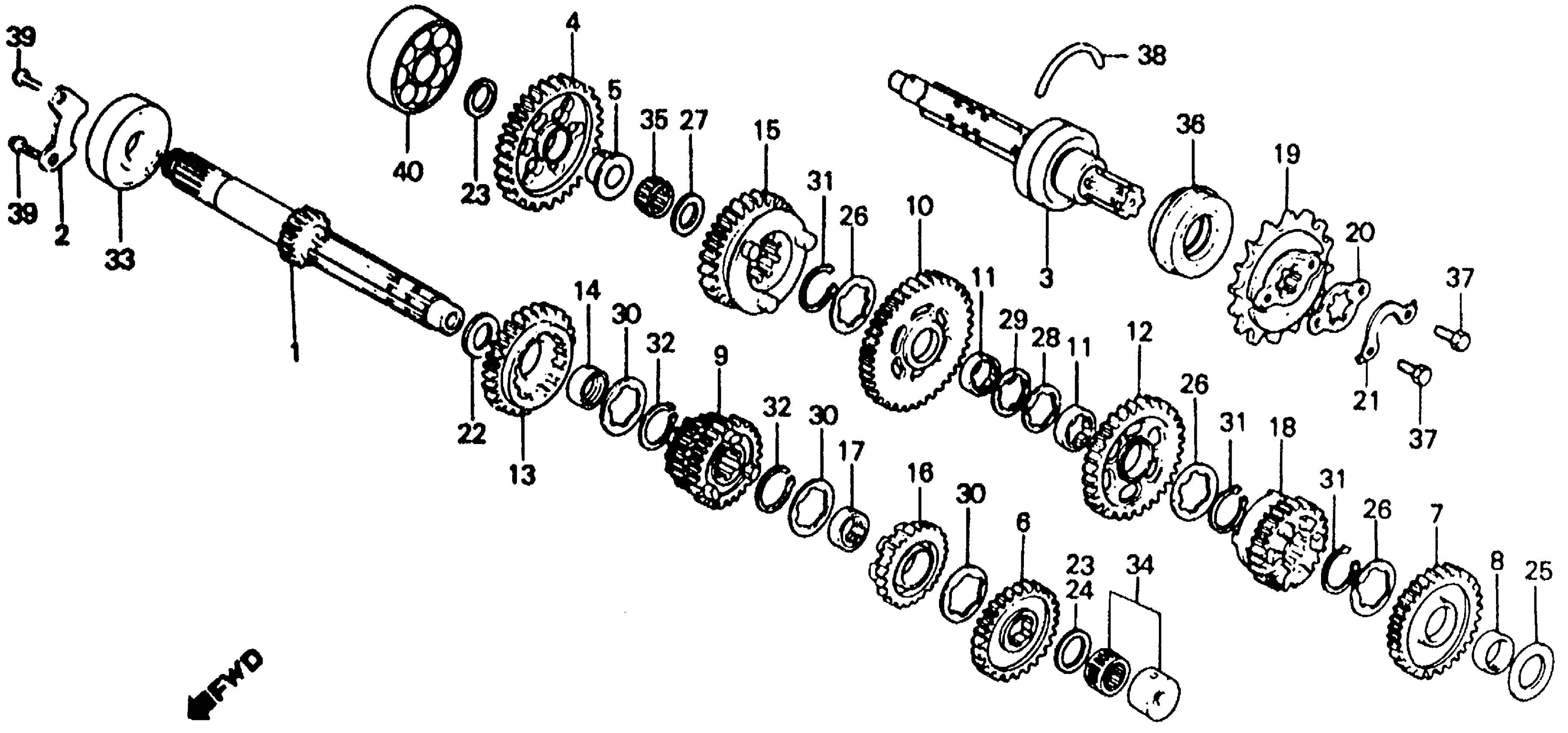

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23211-MJ8-000

Unavailable

2

PLATE, BEARING SETTING

23212-KE7-000

Unavailable

3

COUNTERSHAFT (NOT AVAILABLE)

23220-MJ8-010

Unavailable

4

GEAR, COUNTERSHAFT LOW (43T) (NOT AVAILABLE)

23421-MJ8-000

Unavailable

5

COLLAR (17X10)

23422-MJ8-000

Unavailable

6

GEAR, MAINSHAFT SECOND (17T) This part replaces 23431-MF2-000.

23431-MF2-010

Unavailable

6

GEAR, MAINSHAFT SECOND (17T)

23431-MF2-010

Unavailable

7

GEAR, COUNTERSHAFT SECOND (40T)

23441-MF2-000

Unavailable

8

COLLAR (25X9) (NOT AVAILABLE)

23442-MJ8-000

Unavailable

9

GEAR, MAINSHAFT THIRD & FOURTH (20T/22T)

23451-MF2-000

Unavailable

10

GEAR, COUNTERSHAFT THIRD (37T)

23461-MF2-000

Unavailable

11

COLLAR, SPLINE (25X9)

23462-MJ8-000

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (34T) This part replaces 23481-MF2-000.

23481-ML0-780

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (34T)

23481-ML0-780

Unavailable

13

GEAR, MAINSHAFT FIFTH (24T) This part replaces 23491-MF2-000.

23491-ML0-720

Unavailable

13

GEAR, MAINSHAFT FIFTH (24T)

23491-ML0-720

Unavailable

14

COLLAR (22X9)

23495-KE8-000

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (32T)

23501-MF2-000

Unavailable

16

GEAR, MAINSHAFT SIXTH (26T)

23511-MF2-000

Unavailable

17

COLLAR, SPLINE (22X12)

23512-MJ8-000

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (30T)

23521-MF2-000

Unavailable

19

SPROCKET,DRIVE 15 This part replaces 23801-KE7-600.

23801-KE7-P00

Unavailable

19

SPROCKET,DRIVE 15 This part replaces 23801-KE7-601.

23801-KE7-P00

Unavailable

20

PLATE, FIXING

23811-MJ8-000

Unavailable

21

PLATE, FIXING BOLT LOCK

23815-MJ8-000

Unavailable

22

WASHER, THRUST (22.2MM)

90401-KE7-000

$4.20

23

WASHER, THRUST (17.2MM) | Use up to Engine SN 2105803

90403-KE7-000

$4.02

23

WASHER, THRUST (17.2MM) | Use from Engine SN 2105804

90403-KE7-000

$4.02

24

WASHER, THRUST (17.2MM) | Use from Engine SN 2105804 to 2110530 This part replaces 90403-MF2-000.

90403-MF2-010

Unavailable

24

WASHER, THRUST (17.2MM) | Use from Engine SN 2105804

90403-MF2-010

Unavailable

25

WASHER, THRUST (25.2X34) (NOT AVAILABLE)

90446-430-000

Unavailable

26

WASHER, SPLINE (25MM)

90451-KE8-000

Unavailable

28

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

29

WASHER, LOCK (25MM)

90462-323-000

$3.77

30

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

31

CIRCLIP (25MM)

90601-107-000

$3.74

32

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

33

BEARING, BALL (5205)

91004-KE7-000

Unavailable

34

BEARING, NEEDLE (17X34X18) This part replaces 91021-MJ8-003.

91021-MF2-711

Unavailable

34

BEARING, NEEDLE (17X34X18)

91021-MF2-711

Unavailable

36

OIL SEAL (34X52X13)

91205-KE8-003

Unavailable

37

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

37

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014-0A.

92101-06014-0A

$1.49

37

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92100-06014.

92101-06014-0A

$1.49

37

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

38

SET-RING (520)

95015-25200

Unavailable

39

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

39

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

40

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
