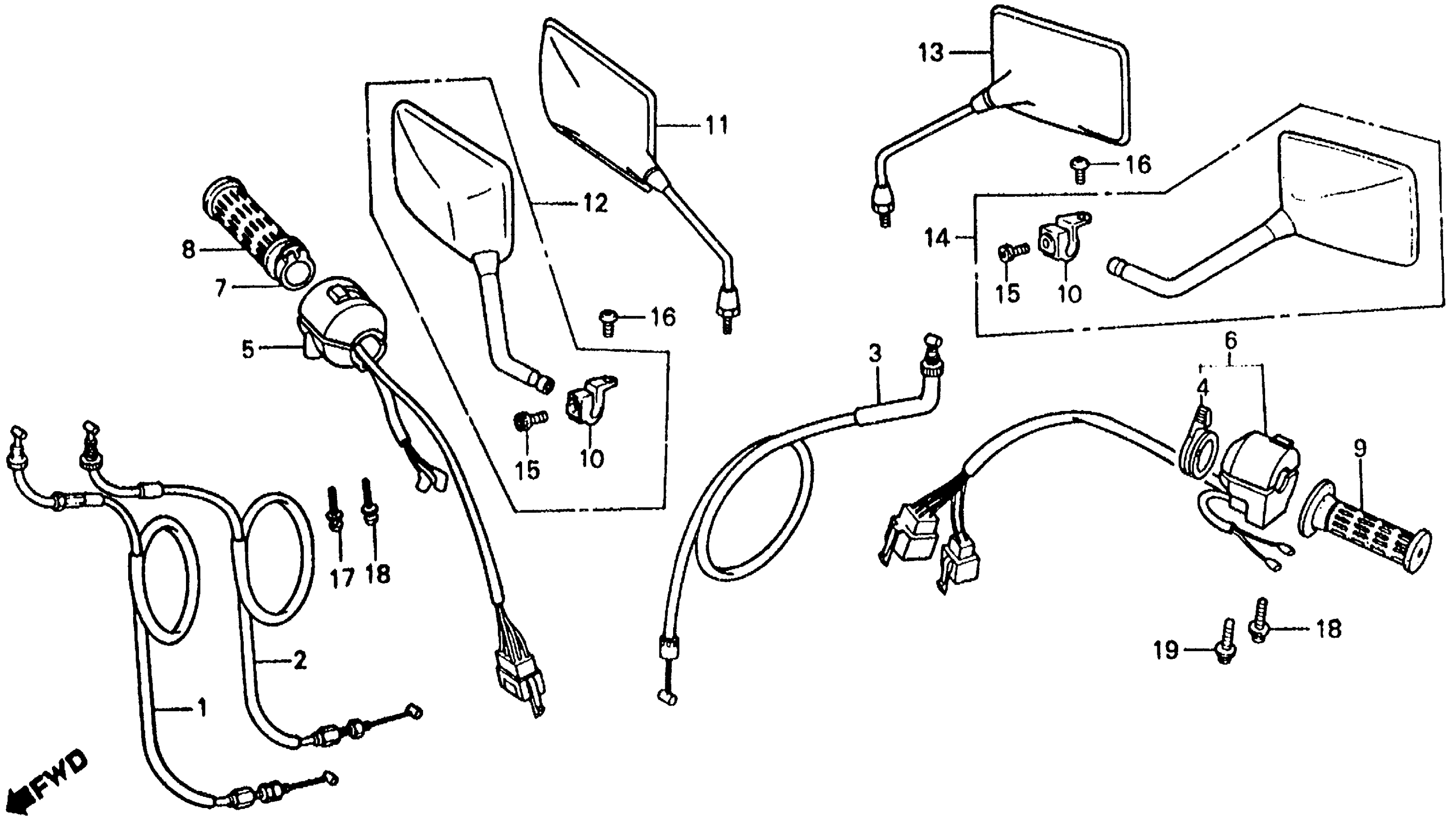

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 SWITCH + CABLE Diagram

CABLE A, THROTTLE This part replaces 17910-MF2-000.

17910-MV4-000

Unavailable

CABLE A, THROTTLE

17910-MV4-000

Unavailable

CABLE COMP,B THRO This part replaces 17920-MF2-000.

17920-KM3-405

Unavailable

CABLE COMP,CHOKE This part replaces 17950-MF2-000.

17950-KT7-405

Unavailable

LEVER, CHOKE This part replaces 17962-KE8-700.

17962-KE8-701

Unavailable

LEVER, CHOKE

17962-KE8-701

Unavailable

SWITCH ASSY., STARTER STOP

35130-MF2-P00

Unavailable

SWITCH ASSY., STARTER STOP This part replaces 35130-MF2-670.

35130-MF2-P00

Unavailable

SWITCH ASSY., STARTER STOP This part replaces 35130-MF2-782.

35130-MF2-P00

Unavailable

SWITCH ASSY., STARTER STOP This part replaces 35130-MF2-780.

35130-MF2-P00

Unavailable

SWITCH ASSY., STARTER STOP This part replaces 35130-MF2-781.

35130-MF2-P00

Unavailable

SWITCH ASSY., TURN SIGNAL This part replaces 35200-MF2-670.

35200-MF2-671

Unavailable

SWITCH ASSY., TURN SIGNAL

35200-MF2-671

Unavailable

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLEBAR

53165-390-780

$10.88

GRIP, L. HANDLEBAR

53166-390-780

$10.88

MIRROR, R. (NOT AVAILABLE)

88110-KE7-000

Unavailable

MIRROR, L. BACK (NOT AVAILABLE)

88120-KE7-000

Unavailable

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X28)

93892-05028-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49
