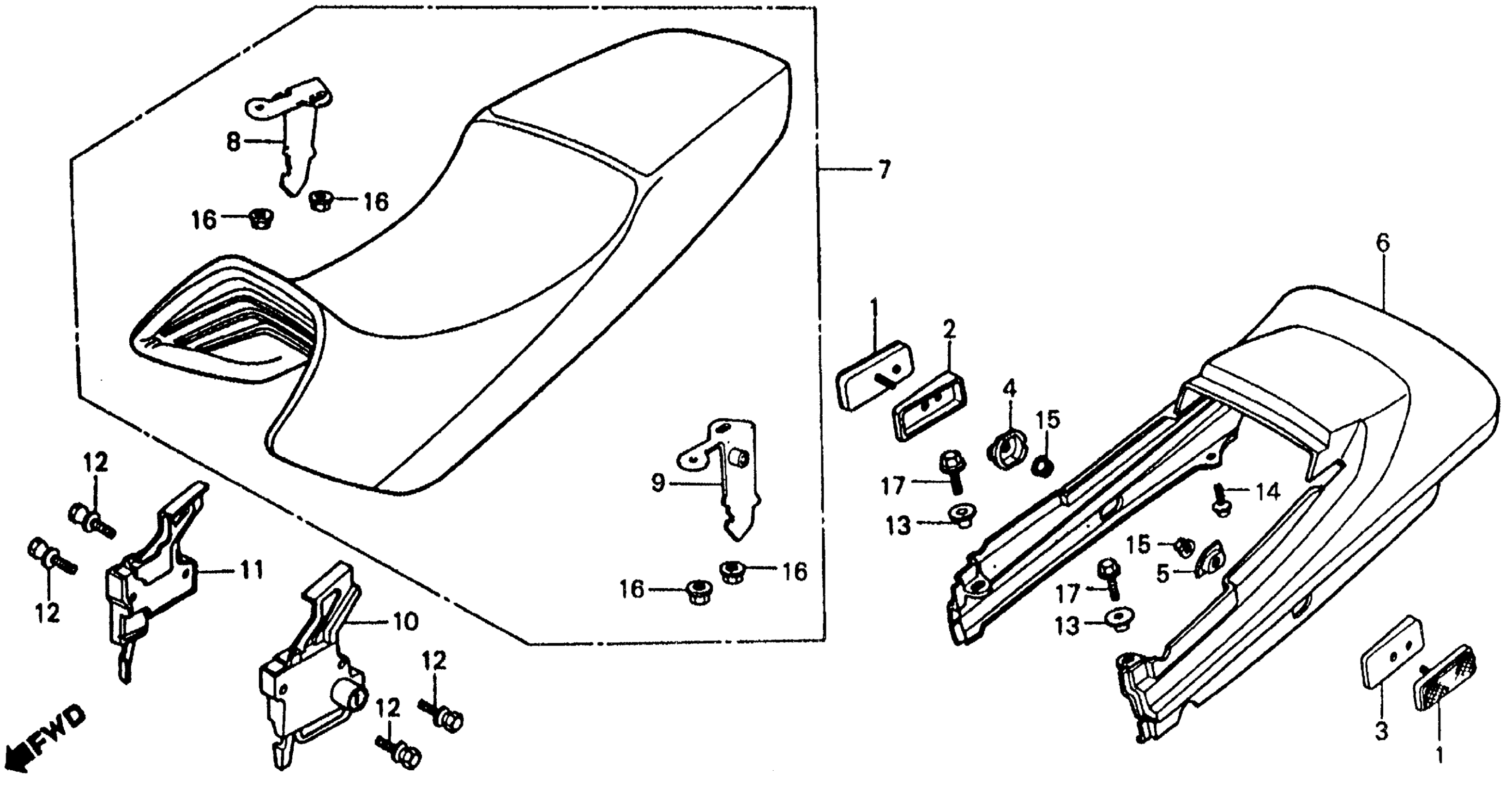

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 SEAT + REAR COWL Diagram

REFLECTOR, REFLEX

33741-MC7-612

$14.43

BASE, R. RR. REFLEX REFLECTOR

33743-MF2-670

Unavailable

BASE, L. RR. REFLEX REFLECTOR

33744-MF2-670

Unavailable

BRACKET, R. RR. REFLEX REFLECTOR

33745-MF2-670

Unavailable

BRACKET, L. RR. REFLEX REFLECTOR

33746-MF2-670

Unavailable

COWL SET, RR. *R124CU* (WL) (CANDY ALAMOANA RED)

772A1-MF2-780ZA

Unavailable

COWL SET, RR. *PB127CU* (WL) (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)

772A1-MF2-780ZB

Unavailable

SEAT, DOUBLE *NH1* (BLACK)

77200-KE7-000ZA

Unavailable

SEAT, DOUBLE *NH1* (BLACK) This part replaces 77200-MF2-780ZA.

77200-KE7-000ZA

Unavailable

STAY, R. SEAT LOCK (NOT AVAILABLE)

77202-KE7-000

Unavailable

STAY, L. SEAT LOCK

77203-KE7-000

Unavailable

LOCK ASSY., L. SEAT (NOT AVAILABLE)

77220-KE7-007

Unavailable

LEVER ASSY., R. SEAT

77240-KE7-007

Unavailable

BOLT, SPECIAL (6X27)

90104-KE8-000

Unavailable

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

SCREW-WASHER (5X16)

93891-05016-07

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
