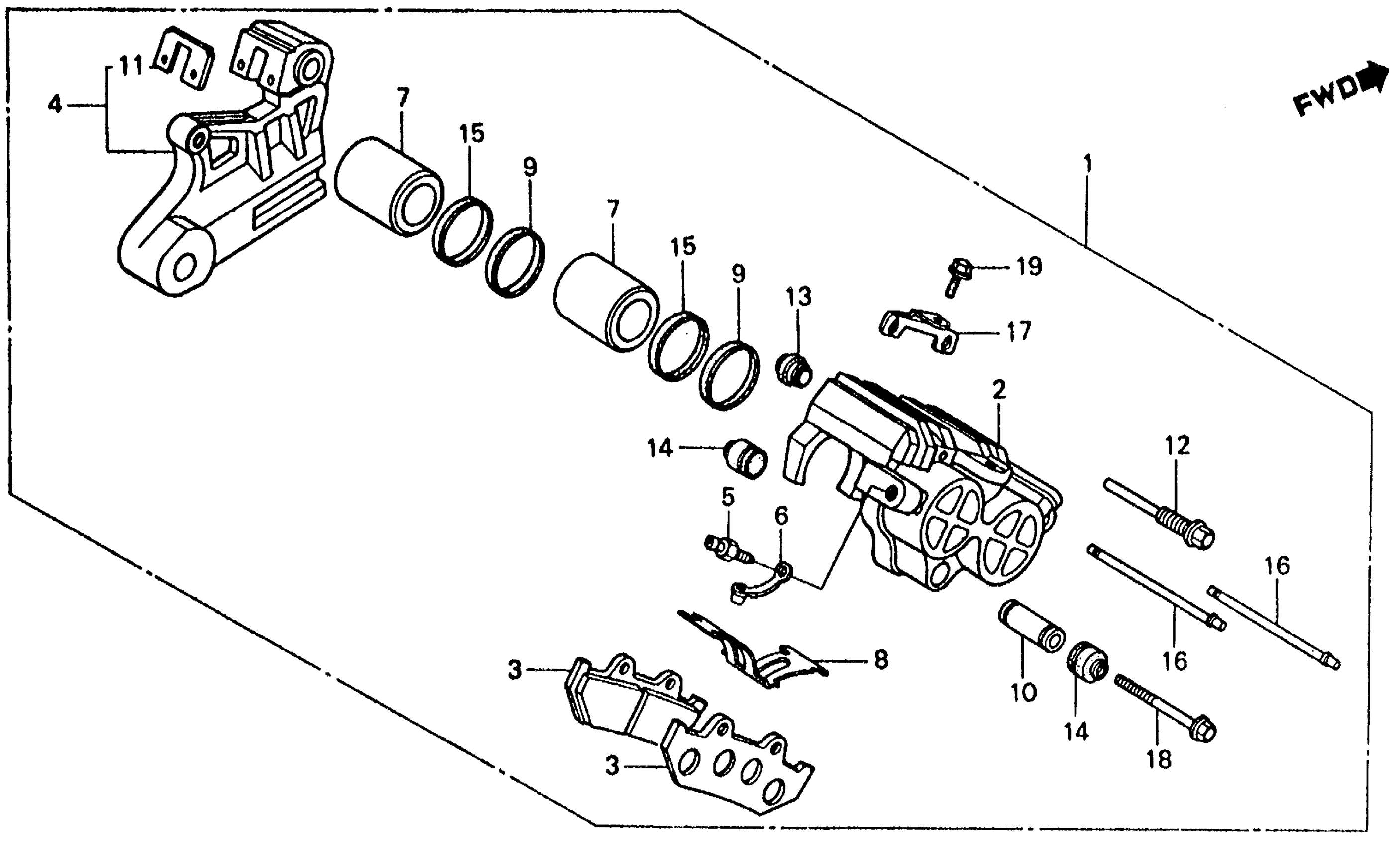

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 REAR BRAKE CALIPER Diagram

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

CALIPER ASSY., RR.

43100-MF2-006

Unavailable

CALIPER ASSY., RR. This part replaces 43100-MF2-007.

43100-MF2-006

Unavailable

CALIPER, RR.

43101-MJ6-006

Unavailable

PAD SET This part replaces 43105-MC7-007.

06435-MC7-405

Unavailable

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

BRACKET, RR.

43110-MJ6-006

Unavailable

SCREW, BLEEDER

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MA3-006

$50.26

SPRING, PAD

45108-MA3-006

$6.28

DUST SEAL

45109-166-006

$6.41

SLEEVE

45111-MA3-006

$13.38

RETAINER, BRACKET

45112-445-631

$8.98

PIN, BOLT

45131-MA3-006

$17.59

BOOT B

45133-MA3-006

$5.46

BOOT, PIN

45133-166-016

$3.85

SEAL, PISTON

45209-166-006

$8.64

PIN, HANGER

45215-MA3-006

$12.77

PLATE

45217-MJ0-006

Unavailable

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
