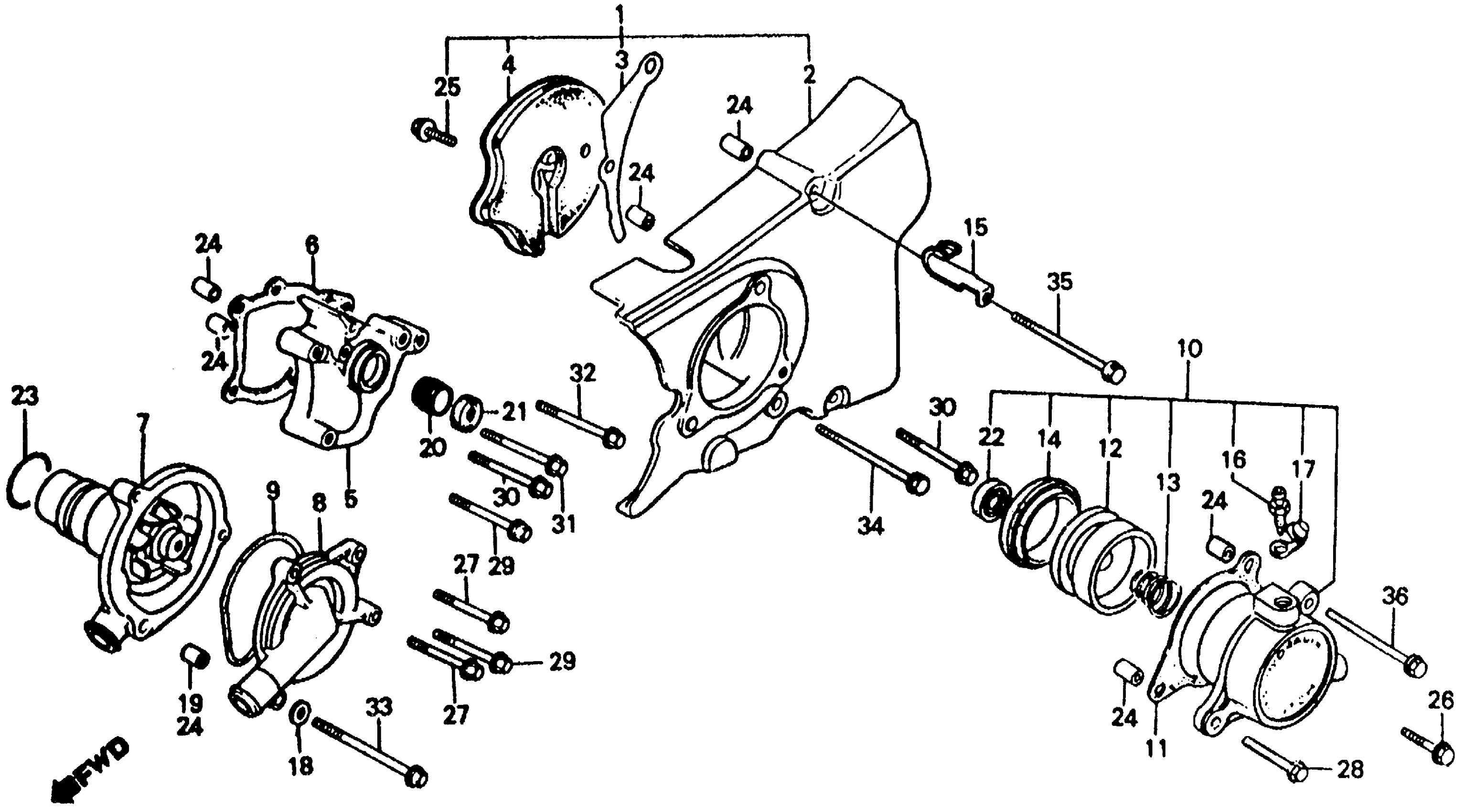

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 LEFT CRANKCASE COVER + WATER PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 2103857

11340-MF2-010

Unavailable

2

COVER, L. CRANKCASE | Use up to Engine SN 2103856 This part replaces 11341-MF2-000.

11341-MF2-010

Unavailable

2

COVER, L. CRANKCASE | Use up to Engine SN 2103856

11341-MF2-010

Unavailable

3

GASKET, L. This part replaces 11343-KE7-000.

11343-KE7-306

Unavailable

4

PLATE, L. CRANKCASE COVER (NOT AVAILABLE) | Use up to Engine SN 2103856

11350-KE7-000

Unavailable

4

PLATE, L. CRANKCASE COVER | Use from Engine SN 2103857

11350-MJ8-000

Unavailable

5

COVER, SHIFT (NOT AVAILABLE)

11630-KE7-000

Unavailable

6

GASKET, SHIFT COVER This part replaces 11632-KE8-010.

11632-MY7-000

$11.82

6

GASKET, SHIFT COVER This part replaces 11632-ML7-000.

11632-MY7-000

$11.82

6

GASKET, SHIFT COVER This part replaces 11632-ML7-306.

11632-MY7-000

$11.82

6

GASKET, SHIFT COVER This part replaces 11632-MR7-780.

11632-MY7-000

$11.82

6

GASKET, SHIFT COVER

11632-MY7-000

$11.82

7

WATER PUMP | Use up to Engine SN 2104375 This part replaces 19200-MF2-000.

19200-ML0-721

Unavailable

7

WATER PUMP | Use up to Engine SN 2105803 This part replaces 19200-MF2-010.

19200-ML0-721

Unavailable

7

WATER PUMP This part replaces 19200-MF2-020.

19200-ML0-721

Unavailable

7

WATER PUMP This part replaces 19200-ML0-720.

19200-ML0-721

Unavailable

7

WATER PUMP

19200-ML0-721

Unavailable

8

COVER, WATER PUMP | Use up to Engine SN 2105803 This part replaces 19221-MF2-000.

19221-MF2-010

$90.11

8

COVER, WATER PUMP

19221-MF2-010

$90.11

9

GASKET This part replaces 19226-KE7-000.

19226-KE7-010

Unavailable

10

CYLINDER ASSY., CLUTCH SLAVE

22860-MF2-003

Unavailable

11

GASKET, SLAVE CYLINDER This part replaces 22862-KE7-000.

22862-MGJ-D00

$4.98

11

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.98

12

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

13

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

14

CUP, PISTON

22865-MJ8-003

$11.50

15

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

16

SCREW, BLEEDER

43352-568-003

$7.95

17

CAP, BLEEDER

43353-461-771

$5.05

18

WASHER, SEALING (6.2X12X1.2) | Use up to Engine SN 2108960 This part replaces 90461-357-000.

90463-KRM-840

$1.49

18

WASHER, SEALING (6.5MM) | Use from Engine SN 2108961 This part replaces 90461-MF2-710.

90463-ML7-000

$2.92

18

WASHER, SEALING (6.5MM) | Use from Engine SN 2108961

90463-ML7-000

$2.92

19

PIN, DOWEL (8X14)

90501-MB0-000

$3.11

20

BEARING, NEEDLE (19X13X12) (NOT AVAILABLE)

91002-459-773

Unavailable

21

OIL SEAL (13X22X5)

91204-KE8-003

$3.12

22

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

23

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

24

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

25

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

26

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

26

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

27

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

27

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

28

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

28

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

29

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

29

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

30

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

30

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

31

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

31

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

32

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$2.16

32

BOLT, FLANGE (6X45)

96001-06045-07

$2.16

33

BOLT, FLANGE (6X65) This part replaces 96000-06065-07.

96001-06065-07

$1.97

33

BOLT, FLANGE (6X65)

96001-06065-07

$1.97

34

BOLT, FLANGE (6X70) This part replaces 96000-06070-07.

96001-06070-07

$2.15

34

BOLT, FLANGE (6X70)

96001-06070-07

$2.15

35

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

35

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

35

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

36

BOLT, FLANGE (6X100) This part replaces 96000-06100-07.

96001-06100-07

$2.15

36

BOLT, FLANGE (6X100)

96001-06100-07

$2.15
