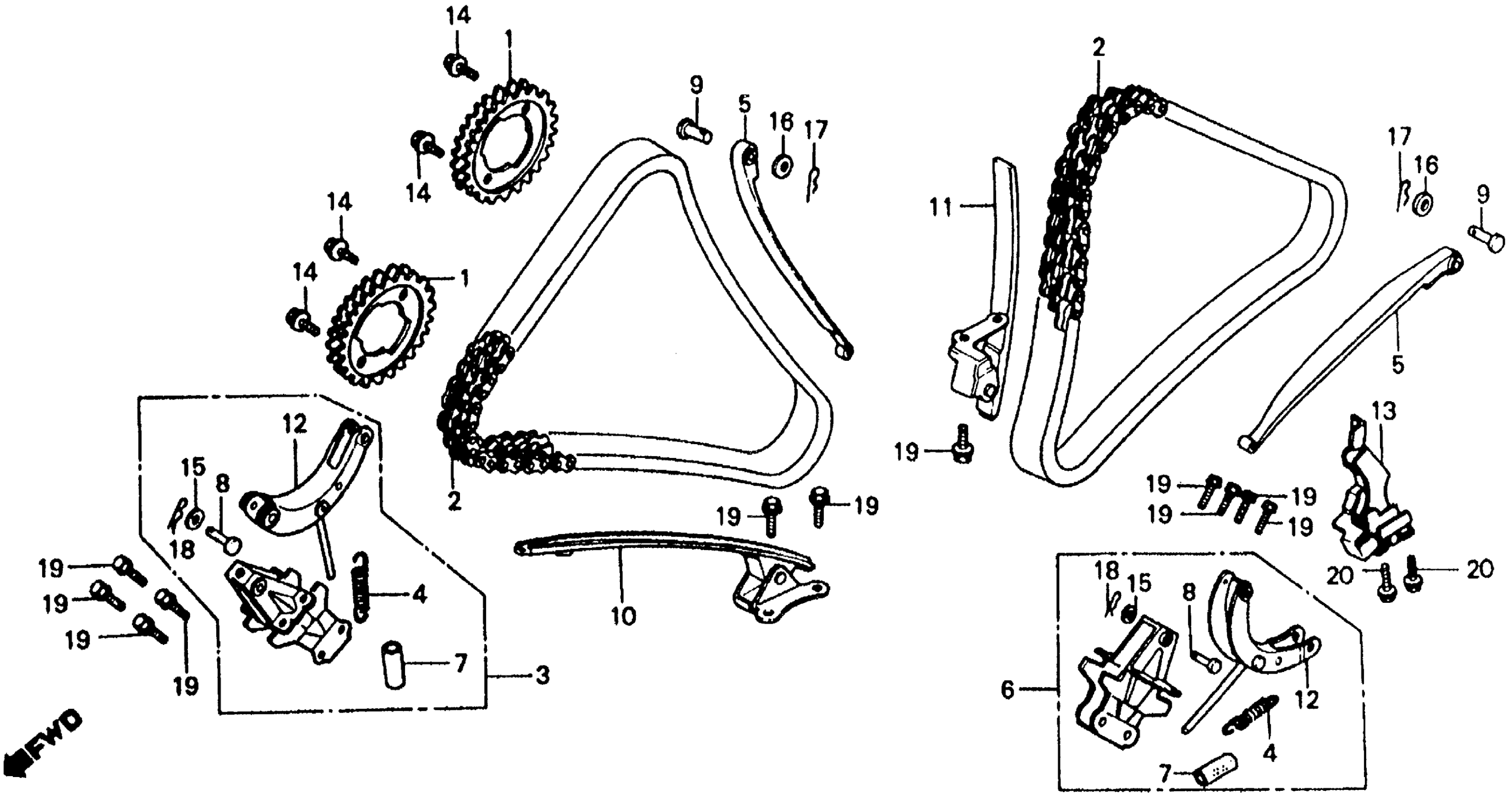

Honda VF500FA (85) 500 INTERCEPTOR, JPN, VIN# JH2PC120-FM100001 TO JH2PC120-FM107254 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM This part replaces 14321-MJ8-000.

14321-KM3-000

Unavailable

2

CHAIN, CAM (25SP-2-130)

14401-MJ8-003

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER | Use up to Engine SN 2101566 This part replaces 14510-MJ8-000.

14510-MJ8-050

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER | Use up to Engine SN 2105853 This part replaces 14510-MJ8-010.

14510-MJ8-050

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER | Use up to Engine SN 2108960 This part replaces 14510-MJ8-020.

14510-MJ8-050

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER This part replaces 14510-MJ8-030.

14510-MJ8-050

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER This part replaces 14510-MJ8-040.

14510-MJ8-050

Unavailable

3

BRACKET B, CAM CHAIN TENSIONER

14510-MJ8-050

Unavailable

4

SPRING, TENSIONER

14514-KE7-000

Unavailable

5

TENSIONER, CAM CHAIN | Use up to Engine SN 2105853 This part replaces 14515-MJ8-000.

14515-MJ8-020

Unavailable

5

TENSIONER, CAM CHAIN This part replaces 14515-MJ8-010.

14515-MJ8-020

Unavailable

5

TENSIONER, CAM CHAIN

14515-MJ8-020

Unavailable

6

BRACKET A, CAM CHAIN TENSIONER | Use up to Engine SN 2101566 This part replaces 14520-MJ8-000.

14520-MJ8-050

$115.08

6

BRACKET A, CAM CHAIN TENSIONER | Use up to Engine SN 2105853 This part replaces 14520-MJ8-010.

14520-MJ8-050

$115.08

6

BRACKET A, CAM CHAIN TENSIONER | Use up to Engine SN 2108960 This part replaces 14520-MJ8-020.

14520-MJ8-050

$115.08

6

BRACKET A, CAM CHAIN TENSIONER This part replaces 14520-MJ8-030.

14520-MJ8-050

$115.08

6

BRACKET A, CAM CHAIN TENSIONER This part replaces 14520-MJ8-040.

14520-MJ8-050

$115.08

6

BRACKET A, CAM CHAIN TENSIONER

14520-MJ8-050

$115.08

7

TUBE, TENSIONER SPRING This part replaces 14525-MB0-010.

14525-MB0-020

Unavailable

7

TUBE, TENSIONER SPRING

14525-MB0-020

Unavailable

8

PIN (8X43.2)

14526-MB0-000

Unavailable

9

PIN A, ARM

14533-MB0-000

Unavailable

10

GUIDE B, CAM CHAIN TENSIONER

14540-MJ8-010

Unavailable

11

GUIDE A, CAM CHAIN TENSIONER

14542-MJ8-010

Unavailable

12

ARM, CAM CHAIN TENSIONER | Use up to Engine SN 2105853 This part replaces 14550-MJ8-000.

14550-MJ8-020

Unavailable

12

ARM, CAM CHAIN TENSIONER | Use up to Engine SN 2108960 This part replaces 14550-MJ8-010.

14550-MJ8-020

Unavailable

12

ARM, CAM CHAIN TENSIONER

14550-MJ8-020

Unavailable

13

HOLDER ASSY., CAM CHAIN TENSIONER

14560-MJ8-010

Unavailable

14

BOLT, FLANGE KNOCK (7X12)

90081-426-000

Unavailable

15

WASHER, THRUST (8MM) This part replaces 90401-KE8-000.

90504-VD6-851

$3.33

16

WASHER (6MM) This part replaces 90485-KE8-000.

90485-VM0-000

$2.92

17

PIN, SPECIAL LOCK (6MM)

90704-MB0-000

Unavailable

18

PIN, LOCK (8MM)

94251-08000

$1.49

19

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

20

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

20

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
