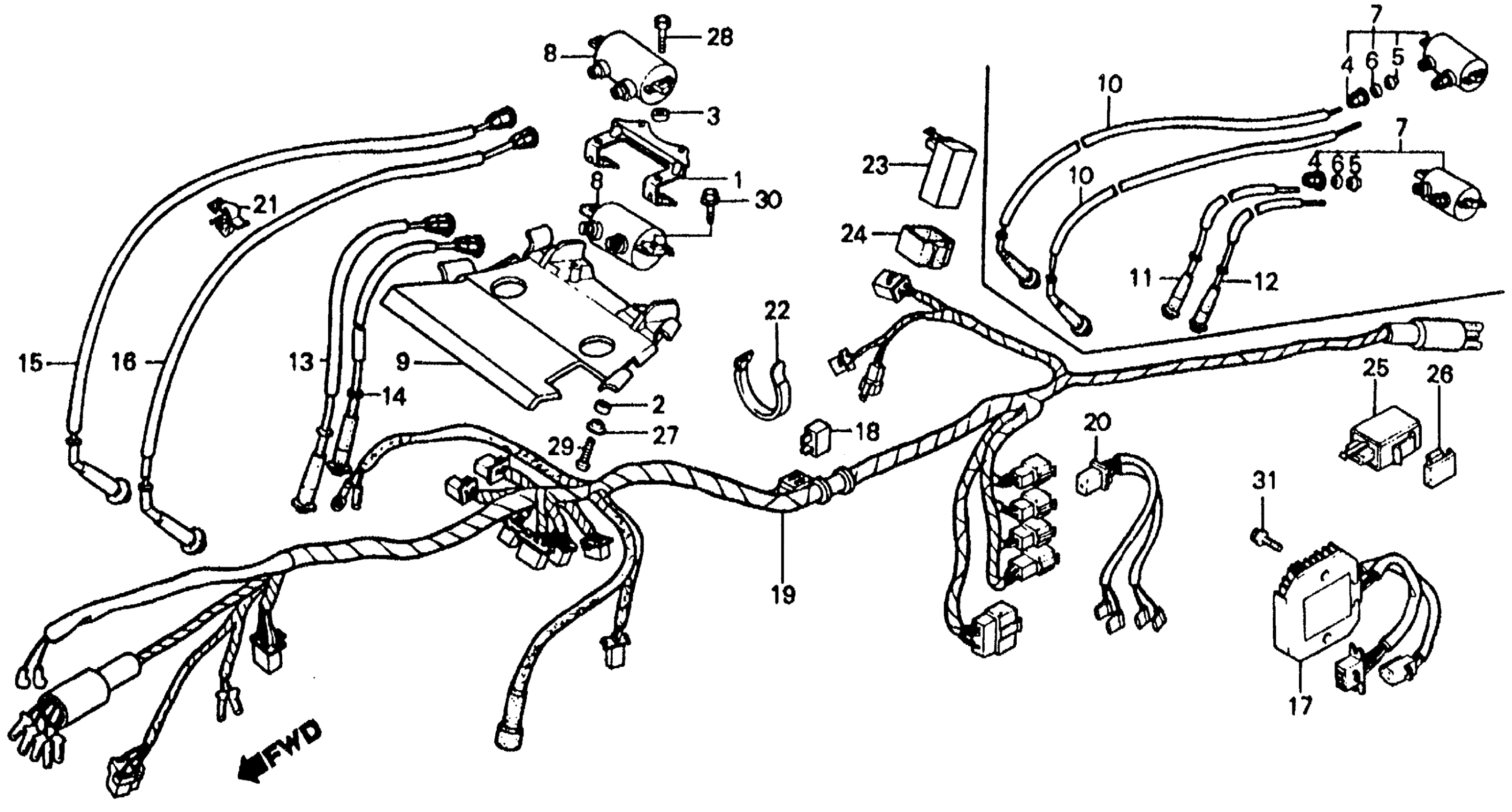

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 WIRE HARNESS + IGNITION COIL Diagram

STAY, IGNITION COIL

30405-KE7-000

Unavailable

COLLAR, IGNITION COIL

30407-KE7-000

Unavailable

COLLAR, IGNITION COIL

30407-MF2-000

Unavailable

CAP, SCREW

30501-428-003

Unavailable

SEAL, RUBBER

30502-428-003

$1.49

WASHER, CAP

30503-428-003

$1.52

COIL, IGNITION This part replaces 30510-MB0-701.

30510-MB0-703

Unavailable

COIL, IGNITION

30510-MB0-703

Unavailable

COVER, IGNITION COIL (NOT AVAILABLE)

30530-MF2-000

Unavailable

CAP 1, IGNITION (NOT AVAILABLE)

30731-MJ8-670

Unavailable

CAP 3, IGNITION

30733-MF2-000

Unavailable

CAP 4, IGNITION (NOT AVAILABLE)

30734-KE7-153

Unavailable

RECTIFIER ASSY., REGULATOR

31600-KAB-901

Unavailable

RECTIFIER ASSY., REGULATOR This part replaces 31600-MF2-008.

31600-KAB-901

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS This part replaces 32100-MF2-000.

32100-MF2-010

Unavailable

WIRE HARNESS

32100-MF2-010

Unavailable

SUB-WIRE, IGNITION

32115-MF2-000

Unavailable

CLIP, WIRE HARNESS

32161-393-003

$3.07

BAND B1, CABLE

32161-404-000

$2.23

RELAY, FUEL CUT

36100-MB1-701

$90.87

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

BOLT, HEX. (6X25) This part replaces 92000-06025-4J.

92101-06025-4J

$1.49

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

SCREW, PAN (6X25)

93500-06025-4J

$1.82

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
