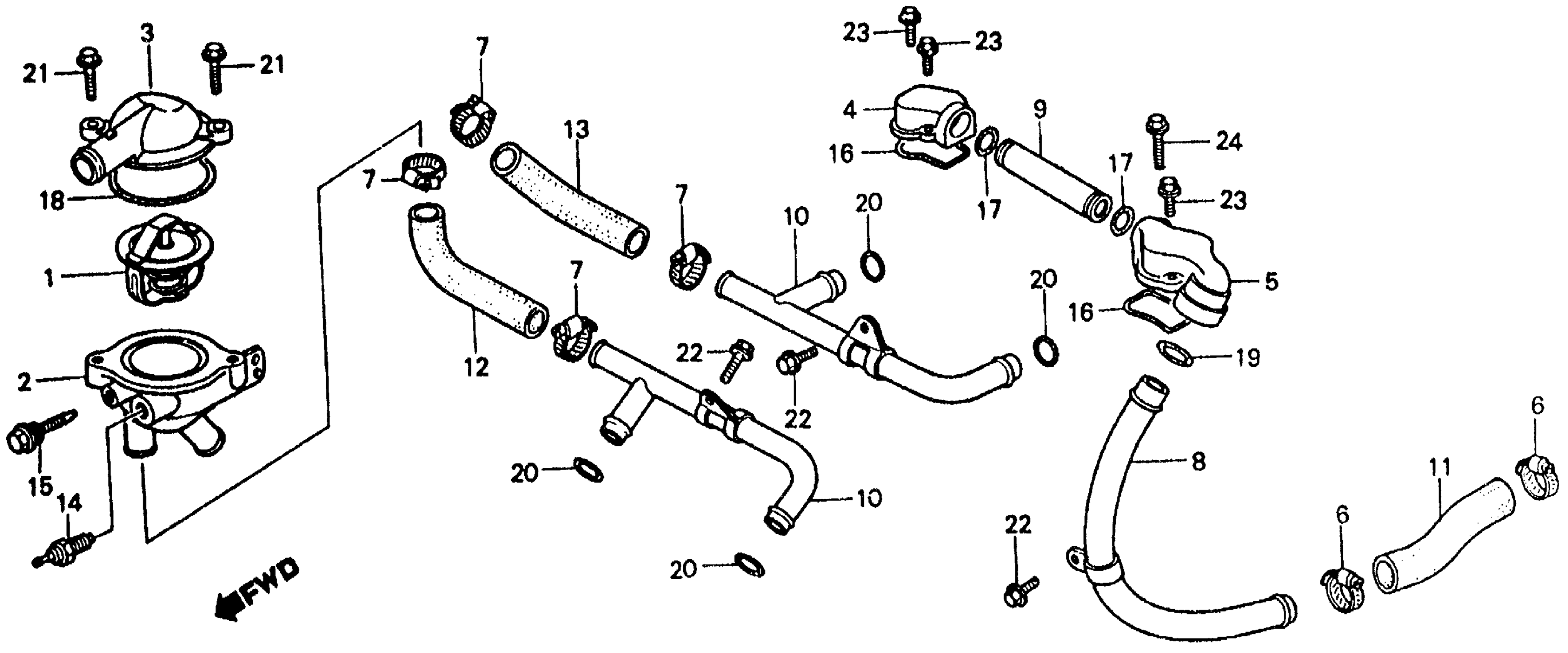

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$52.78

2

CASE, THERMOSTAT

19311-MF2-000

Unavailable

3

COVER, THERMOSTAT

19315-MF2-000

Unavailable

4

CAP A, CONNECTING

19508-MB0-000

Unavailable

5

CAP B, CONNECTING PIPE

19509-KE7-000

Unavailable

6

CLAMP, WATER HOSE

19503-MB1-870

$12.56

6

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

7

CLAMP B, WATER HOSE

19517-MJ8-000

Unavailable

8

PIPE A, WATER (NOT AVAILABLE)

19521-KE7-000

Unavailable

9

PIPE B, WATER

19522-KE7-000

Unavailable

10

PIPE C, WATER (NOT AVAILABLE)

19523-KE7-000

Unavailable

11

HOSE A, WATER (NOT AVAILABLE)

19525-KE7-000

Unavailable

12

HOSE B, WATER

19526-MF2-000

Unavailable

13

HOSE C, WATER

19527-MF2-000

Unavailable

14

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

15

BOLT, SPECIAL (8MM)

90042-MB6-000

Unavailable

16

GASKET, CONNECTING CAP

91301-MB0-000

$4.10

17

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

18

O-RING (54X2)

91307-MB0-003

$3.23

19

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

20

O-RING (13X3.0)

91302-MB6-830

$1.95

20

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.95

21

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

21

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

22

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

22

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

23

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

23

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

24

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

24

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
