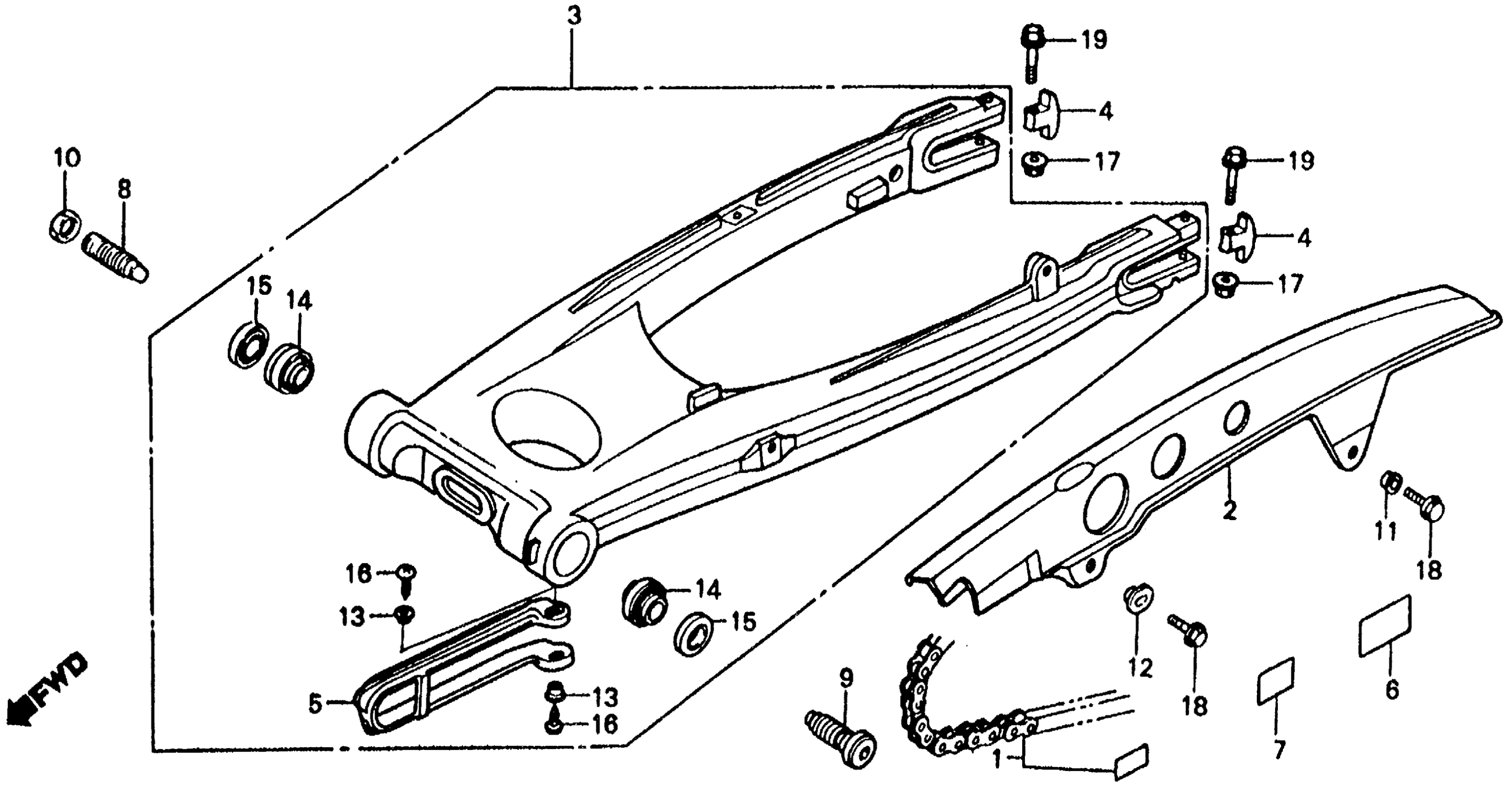

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 SWINGARM + CHAIN CASE Diagram

CHAIN SET, DRIVE (50V3-108L) (DAIDO)

405C3-MJ8-003

Unavailable

CHAIN SET, DRIVE (RK50F0-108L) (TAKASAGO)

405C3-MJ8-005

Unavailable

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-KE7-000

Unavailable

SWINGARM ASSY., RR.

52110-KE7-000

Unavailable

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-MA6-000

Unavailable

SLIDER, CHAIN (NOT AVAILABLE)

52170-KE7-000

Unavailable

MARK, TIRE CAUTION

87505-MF2-670

Unavailable

MARK, DRIVE CHAIN CAUTION

87507-MF2-670

Unavailable

BOLT, R. SWINGARM PIVOT This part replaces 90121-MF2-000.

90121-MJ8-000

Unavailable

BOLT, R. SWINGARM PIVOT

90121-MJ8-000

Unavailable

BOLT, L. SWINGARM PIVOT

90122-MF2-000

Unavailable

NUT, PIVOT LOCK

90301-KE8-000

Unavailable

WASHER (6X20)

90512-KF9-900

$3.06

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

WASHER (6X9)

90513-405-000

$2.09

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

BEARING (30203J) This part replaces 91066-MC7-003.

91066-MC7-004

Unavailable

BEARING (30203J)

91066-MC7-004

Unavailable

DUST SEAL (22X40X5)

91268-KE8-003

Unavailable

DUST SEAL (22X40X5) This part replaces 91268-KE8-006.

91268-KE8-003

Unavailable

SCREW, PAN (5X12)

93500-05012-0H

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X60) This part replaces 95800-06060-00.

95801-06060-00

$2.25

BOLT, FLANGE (6X60)

95801-06060-00

$2.25
