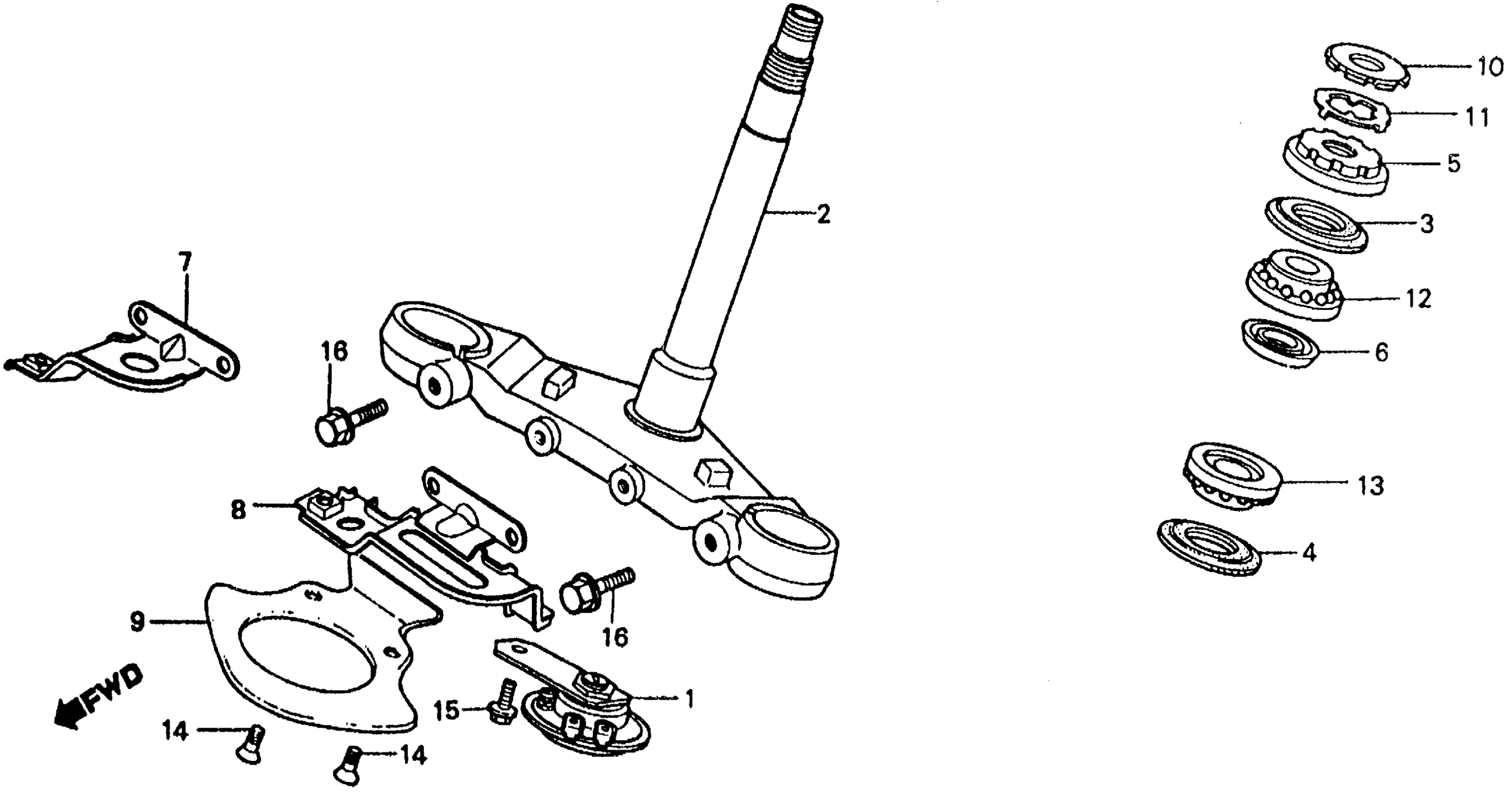

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 STEERING STEM + HORN Diagram

HORN (HIGH)

38110-KAY-008

Unavailable

HORN (HIGH) This part replaces 38110-MB2-004.

38110-KAY-008

Unavailable

STEM, STEERING

53200-MF2-000

Unavailable

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-MB2-000

$34.39

HOLDER, GREASE

53223-371-010

Unavailable

STAY, HORN This part replaces 61405-MF2-670.

61405-MF2-672

Unavailable

STAY, HORN This part replaces 61405-MF2-671.

61405-MF2-672

Unavailable

STAY, HORN

61405-MF2-672

Unavailable

PROTECTOR, WIND

61406-MF2-670

Unavailable

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

SCREW, FLAT (5X12)

93600-05012-0G

$1.49

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BOLT, FLANGE (10X40) This part replaces 95700-10040-07.

95701-10040-07

$1.90

BOLT, FLANGE (10X40)

95701-10040-07

$1.90
