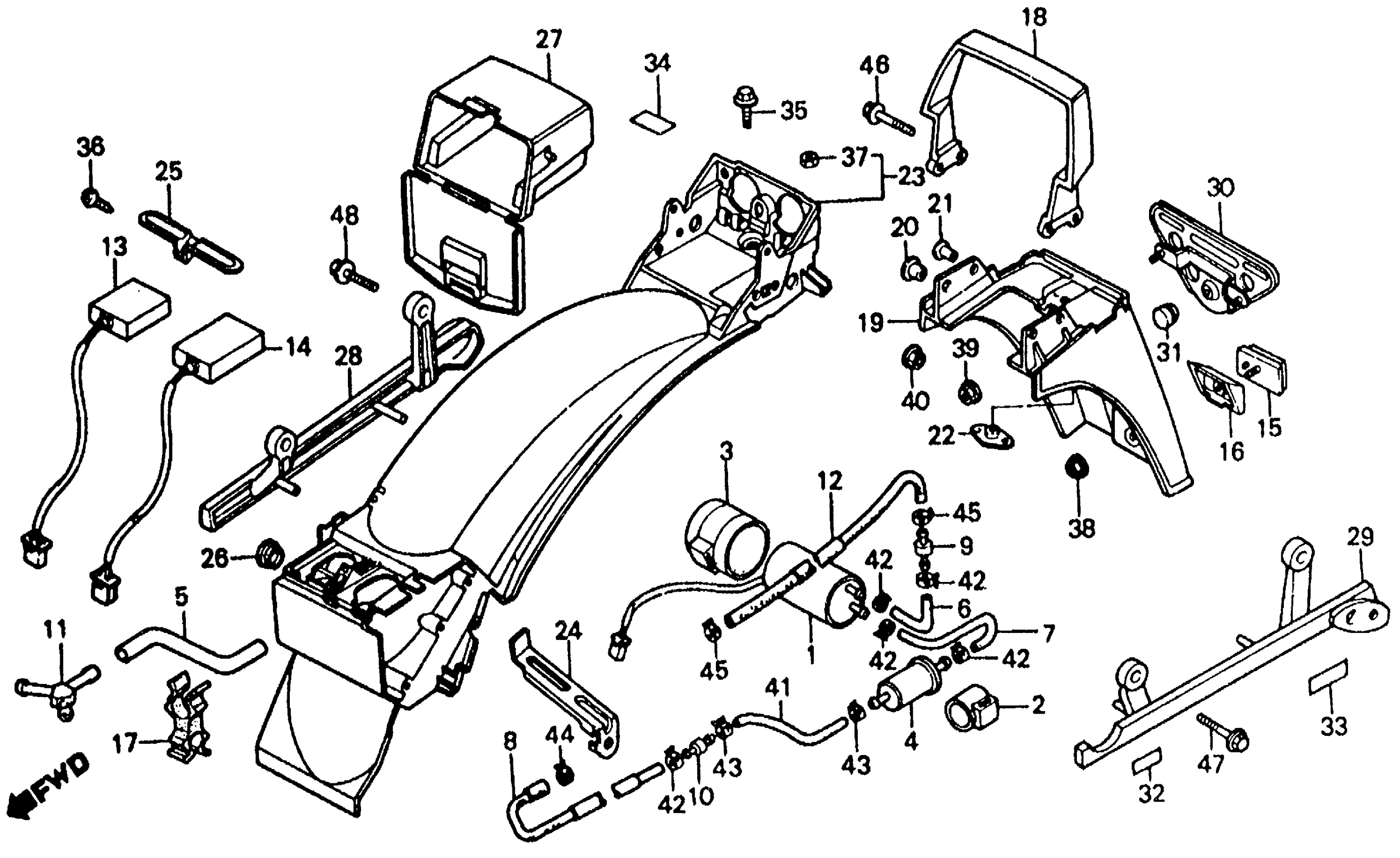

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 REAR FENDER + SPARK UNIT Diagram

#

Description
Price

1

PUMP ASSY., FUEL (NOT AVAILABLE) This part replaces 16710-MF2-000.

16710-MF2-005

Unavailable

1

PUMP ASSY., FUEL (NOT AVAILABLE)

16710-MF2-005

Unavailable

2

HOLDER, STRAINER

16711-MF2-000

$17.60

3

HOLDER, FUEL PUMP (NOT AVAILABLE)

16712-MF2-000

Unavailable

4

FILTER, FUEL

16900-371-004

$30.23

6

TUBE C, FUEL (NOT AVAILABLE)

16955-MF2-000

Unavailable

7

TUBE D, FUEL

16956-MF2-000

Unavailable

8

TUBE F, FUEL (NOT AVAILABLE)

16958-MF2-000

Unavailable

9

JOINT, FUEL TUBE (NOT AVAILABLE)

16959-MB1-000

Unavailable

10

JOINT, FUEL TUBE

16959-MF2-000

Unavailable

12

HOSE, FUEL (7.3X440) This part replaces 16960-MF2-000.

16960-MF2-010

Unavailable

12

HOSE, FUEL (7.3X440)

16960-MF2-010

Unavailable

13

MODULE, IGNITION CONTROL (CDI)

30400-MF2-671

Unavailable

14

MODULE ASSY., IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-MF2-671

Unavailable

15

REFLECTOR, REFLEX

33741-ME8-003

Unavailable

16

BASE, RR. REFLEX REFLECTOR

33747-MF2-670

Unavailable

18

GRAB RAIL, RR.

77310-KE7-000

Unavailable

19

FENDER A, RR. (NOT AVAILABLE) This part replaces 80100-KE7-000.

80100-MF2-910

Unavailable

19

FENDER A, RR. (NOT AVAILABLE)

80100-MF2-910

Unavailable

20

COLLAR, RR. FENDER SETTING (A)

80101-KE7-000

Unavailable

21

COLLAR B, RR. FENDER SETTING

80103-KE7-000

Unavailable

22

NUT, RR. FENDER

80104-KE7-000

Unavailable

23

FENDER B, RR. This part replaces 80105-MF2-000.

80105-MF2-020

Unavailable

23

FENDER B, RR.

80105-MF2-020

Unavailable

25

HOLDER, IGNITOR

80109-MF2-000

Unavailable

26

PLUG, FENDER

80123-ME5-000

$3.96

27

BOX, GLOVE (NOT AVAILABLE)

83500-KE7-000

Unavailable

28

GRIP, R. SIDE

84100-KE7-000

Unavailable

29

GRIP, L. SIDE

84200-KE7-000

Unavailable

30

BRACKET, NUMBER PLATE

84701-MF2-670

Unavailable

31

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

32

LABEL, HIGH ALTITUDE

87139-463-670

$7.08

33

LABEL, HELMET HOLDER

87511-323-670

$2.72

34

MARK, ACCESSORIES & LOADING CAUTION

87512-MF2-670

Unavailable

35

BOLT-WASHER (6X16)

93404-06016-08

$1.55

35

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

36

SCREW, TAPPING (4X12)

93903-14320

$1.49

37

NUT, HEX. (5MM)

94001-050800S

$1.49

38

NUT, FLANGE (5MM)

94050-05000

$1.49

39

NUT, FLANGE (6MM)

94050-06080

$1.49

40

NUT, FLANGE (8MM)

94050-08080

$1.49

41

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

42

CLIP, TUBE (D10)

95002-41000-08

$2.41

43

CLIP, TUBE (D12)

95002-41050-00

$1.85

44

CLAMP, TUBE (D12) This part replaces 95002-41200-00.

95002-41200-04

$2.34

44

CLIP, TUBE (D12)

95002-41200-04

$2.34

45

CLIP, TUBE (D12.5)

95002-41250-08

$2.34

46

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

46

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

47

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.62

47

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

47

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.62

48

BOLT, FLANGE (8X45) This part replaces 95700-08045-08.

95701-08045-08

$2.28

48

BOLT, FLANGE (8X45) (DENSO)

95701-08045-08

$2.28
