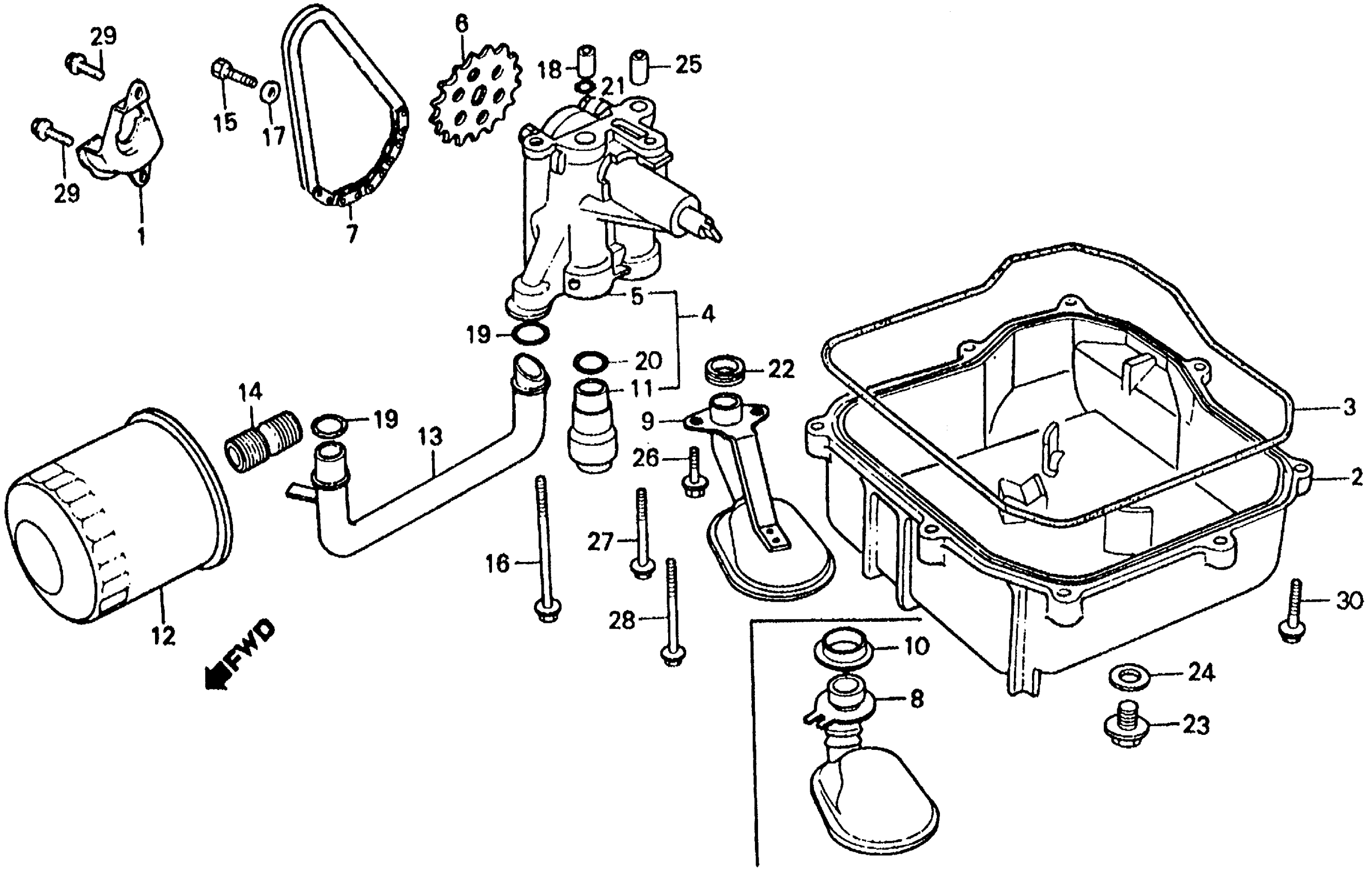

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 OIL FILTER + OIL PAN + OIL PUMP Diagram

#

Description
Price

1

COVER, OIL PUMP CHAIN

11141-KE7-000

Unavailable

2

PAN, OIL (NOT AVAILABLE)

11210-KE7-020

Unavailable

3

GASKET, OIL PAN

11315-KE7-000

Unavailable

5

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MJ8-000

Unavailable

6

SPROCKET, OIL PUMP DRIVEN (21T) This part replaces 15134-KE8-000.

15134-KE8-010

$35.39

6

SPROCKET, OIL PUMP DRIVEN (21T)

15134-KE8-010

$35.39

7

CHAIN, OIL PUMP

15140-415-003

$51.99

8

STRAINER, OIL

15153-KE7-000

Unavailable

10

GASKET, OIL STRAINER

15154-KE7-000

Unavailable

11

VALVE ASSY., RELIEF

15220-MB0-010

$44.08

12

FILTER, OIL This part replaces 15410-MB0-003.

15410-MJ0-405

$13.44

12

FILTER, OIL This part replaces 15410-MB3-003.

15410-MJ0-405

$13.44

12

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

12

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

12

FILTER, OIL

15410-MJ0-405

$13.44

13

PIPE, OIL

15511-KE7-000

Unavailable

14

BOSS, OIL FILTER

90019-MB0-000

$8.61

15

BOLT, HEX. (6X16) This part replaces 90021-KE8-000.

90021-KE8-010

$2.28

15

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

16

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

17

WASHER (6X2.3)

90488-MB0-000

$4.37

18

PIN, KNOCK (8X14)

90701-MB0-000

Unavailable

19

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

20

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

20

O-RING (14.8X2.2)

91313-MG7-004

$3.67

21

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

21

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

21

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

23

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

27

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

27

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

27

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

28

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

28

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

29

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

29

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

30

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

30

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
