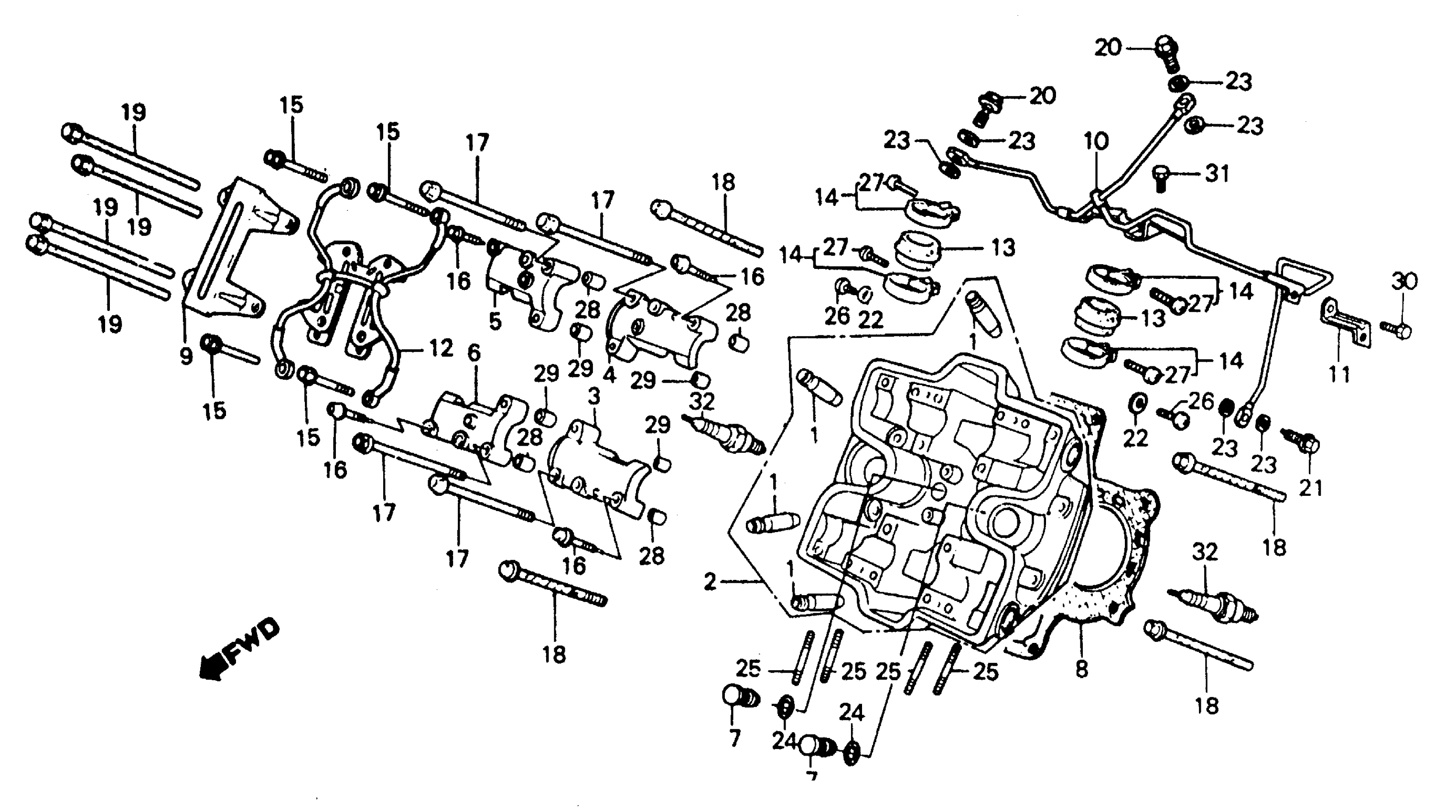

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 FRONT CYLINDER HEAD I Diagram

#

Description
Price

1

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

HEAD, FR. | Use up to Engine SN 2000094

12210-MJ8-000

Unavailable

2

HEAD, FR. | Use from Engine SN 2000095

12210-MJ8-010

Unavailable

2

HEAD, FR. | Use from Engine SN 2000095 This part replaces 12210-MJ8-020.

12210-MJ8-040

Unavailable

2

HEAD, FR. | Use from Engine SN 2000095 This part replaces 12210-MJ8-030.

12210-MJ8-040

Unavailable

2

HEAD, FR. | Use from Engine SN 2000095

12210-MJ8-040

Unavailable

2

HEAD, FR.

12210-MJ8-040

Unavailable

3

HOLDER A, CAMSHAFT This part replaces 12211-KE7-010.

12211-KM3-010

Unavailable

3

HOLDER A, CAMSHAFT

12211-KM3-010

Unavailable

4

HOLDER B, CAMSHAFT This part replaces 12212-KE7-010.

12212-KM3-010

Unavailable

4

HOLDER B, CAMSHAFT

12212-KM3-010

Unavailable

5

HOLDER C, CAMSHAFT This part replaces 12213-KE7-010.

12213-KE7-020

Unavailable

5

HOLDER C, CAMSHAFT

12213-KE7-020

Unavailable

6

HOLDER D, CAMSHAFT This part replaces 12214-KE7-010.

12214-KE7-020

Unavailable

6

HOLDER D, CAMSHAFT

12214-KE7-020

Unavailable

7

CAP, WATER JACKET (NOT AVAILABLE)

12229-KE7-000

Unavailable

8

GASKET, FR. CYL HD | Use up to Engine SN 2000094 This part replaces 12251-MJ8-000.

12251-MJ8-405

Unavailable

8

GASKET, CYLINDER HEAD | Use from Engine SN 2000095 This part replaces 12251-MJ8-010.

12251-MJ8-306

Unavailable

8

GASKET, CYLINDER HEAD | Use from Engine SN 2000095 This part replaces 12251-MJ8-020.

12251-MJ8-306

Unavailable

8

GASKET, CYLINDER HEAD | Use from Engine SN 2000095

12251-MJ8-306

Unavailable

9

GUIDE C, CAM CHAIN (NOT AVAILABLE)

14544-MJ8-010

Unavailable

10

PIPE, OIL FEEDER | Use up to Engine SN 2104430 This part replaces 15301-MJ8-000.

15301-MM1-670

Unavailable

10

PIPE, OIL FEEDER | Use up to Engine SN 2104430 This part replaces 15301-MJ8-010.

15301-MM1-670

Unavailable

10

PIPE, OIL FEEDER This part replaces 15301-MJ8-010.

15301-MM1-670

Unavailable

10

PIPE, OIL FEEDER | Use up to Engine SN 2104430

15301-MM1-670

Unavailable

10

PIPE, OIL FEEDER

15301-MM1-670

Unavailable

11

PLATE, OIL FEEDER PIPE SETTING

15305-MF2-000

Unavailable

12

PIPE, OIL PASSAGE

15311-MJ8-000

Unavailable

13

INSULATOR, CARBURETOR

16211-MJ8-000

$14.01

14

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

14

BAND, INSULATOR

16223-KS5-000

$14.20

15

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

16

BOLT, FLANGE (6X54)

90003-KE8-000

Unavailable

17

BOLT, UBS (8X130) This part replaces 90008-KE8-000.

90008-KE8-010

Unavailable

17

BOLT, UBS (8X130)

90008-KE8-010

Unavailable

18

BOLT, UBS (8X80)

90011-KE8-000

Unavailable

19

BOLT, UBS (8X151)

90012-KE8-000

Unavailable

20

BOLT, OIL (10MM) (NOT AVAILABLE) This part replaces 90044-KE8-010.

90044-KM3-000

Unavailable

21

BOLT, OIL CONTROL

90045-MJ8-000

Unavailable

22

WASHER, SEALING (5MM)

90452-323-000

$1.59

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

O-RING (7X1.7) This part replaces 91303-KE7-003.

91312-107-000

$3.18

24

O-RING (7X1.7)

91312-107-000

$3.18

25

BOLT, STUD (6X50) | Use from Engine SN 2013341 This part replaces 90063-235-000.

92700-06050-0E

$1.54

25

BOLT 2, STUD (6X32) | Use up to Engine SN 2013340 This part replaces 92700-06045.

92900-06032-0E

$2.45

25

BOLT 2, STUD (6X32) | Use up to Engine SN 2013340 This part replaces 92700-06045-0B.

92900-06032-0E

$2.45

25

BOLT, STUD (6X50) | Use from Engine SN 2013341 This part replaces 92700-06045-0E.

92700-06050-0E

$1.54

25

BOLT, STUD (6X50) | Use from Engine SN 2013341

92700-06050-0E

$1.54

25

BOLT 2, STUD (6X32) | Use up to Engine SN 2013340 This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

25

BOLT 2, STUD (6X32) | Use up to Engine SN 2013340

92900-06032-0E

$2.45

26

SCREW, PAN (5X8)

93500-05008-0G

$1.49

27

SCREW, PAN (5X28)

93500-05028-0G

$1.49

28

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

29

PIN A, DOWEL (10X16)

94301-10160

$2.28

30

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

30

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

31

BOLT, SOCKET (6X50)

96700-06050-07

Unavailable

32

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

32

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

32

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

32

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

32

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54

32

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62
