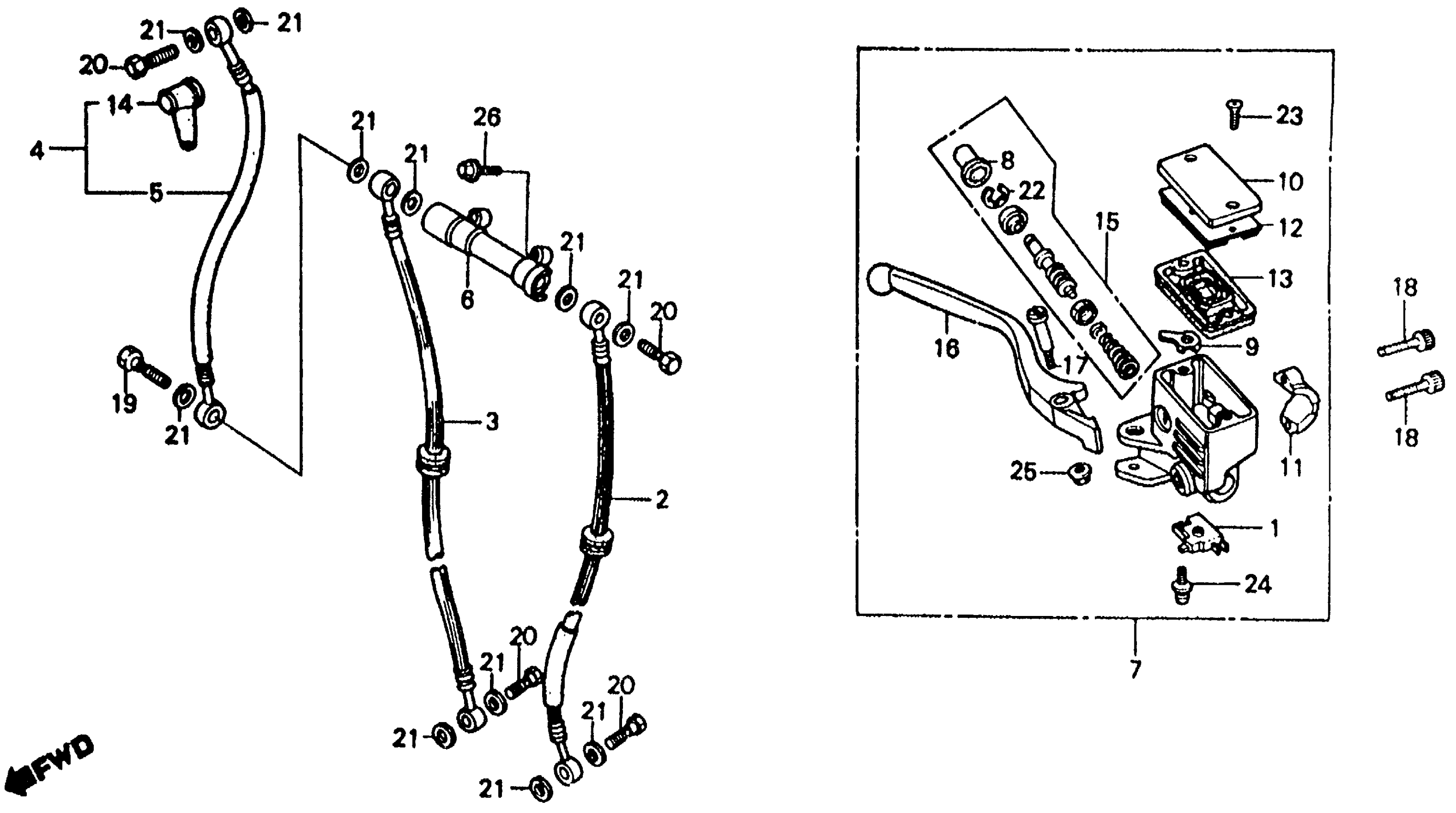

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-MF2-003

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45125-MF2-003

Unavailable

4

HOSE B, FR. BRAKE This part replaces 45126-MF2-003.

45126-MF2-861

Unavailable

4

HOSE B, FR. BRAKE

45126-MF2-861

Unavailable

6

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

7

CYLINDER SUB ASSY This part replaces 45500-MJ6-006.

45510-MJ6-405

Unavailable

8

BOOT

45504-410-003

$10.93

9

PROTECTOR

45512-MA6-006

$3.99

10

CAP, MASTER CYLINDER

45513-KE5-026

$37.51

11

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

12

PLATE, DIAPHRAGM

45518-MB4-671

$10.89

13

DIAPHRAGM

45520-MA5-672

$16.27

14

BOOT, MASTER CYLINDER

45522-422-000

$7.79

15

MASTER CYLINDER SET

45530-MA5-671

$64.38

16

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$16.06

17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

18

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

19

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

20

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$9.89

20

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$9.89

20

BOLT, OIL (10X22)

90145-KM3-751

$9.89

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

CIRCLIP

90651-MA5-671

$2.38

23

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

24

SCREW-WASHER (4X12)

93893-04012-08

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.64

26

BOLT, FLANGE (6X25)

95701-06025-07

$1.64
