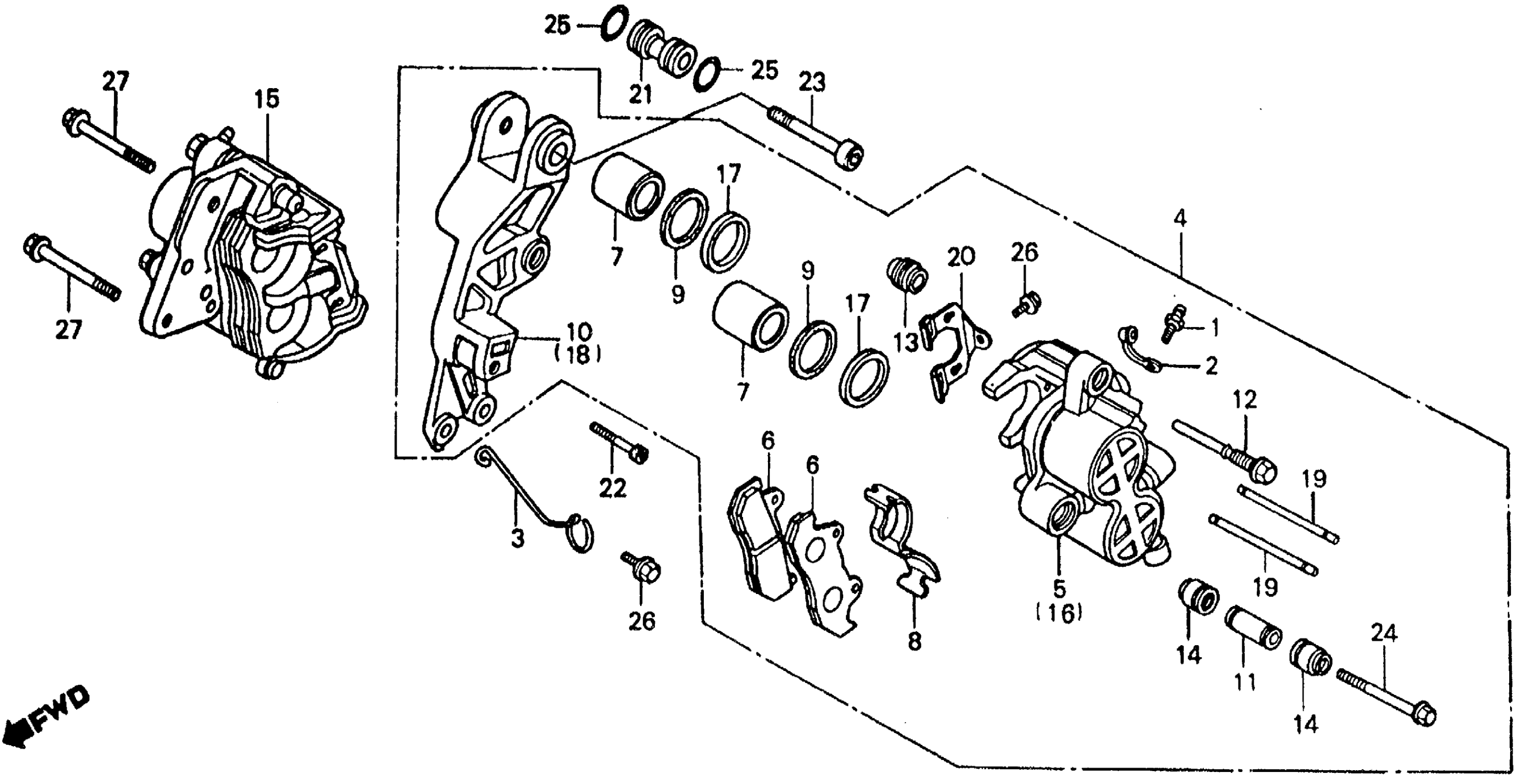

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 451A0-MC7-670.

06435-MC7-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

4

CALIPER ASSY., L. FR. This part replaces 45100-MF2-006.

45100-MF2-016

Unavailable

4

CALIPER ASSY., L. FR. This part replaces 45100-MF2-007.

45100-MF2-016

Unavailable

4

CALIPER ASSY., L. FR.

45100-MF2-016

Unavailable

5

CALIPER, L.

45101-MJ6-006

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-007.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR.

45110-MJ6-016

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

PIN, BOLT

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

15

CALIPER, R. FR. This part replaces 45200-MF2-006.

45200-MF2-026

Unavailable

15

CALIPER, R. FR. This part replaces 45200-MF2-016.

45200-MF2-026

Unavailable

15

CALIPER, R. FR. This part replaces 45200-MF2-017.

45200-MF2-026

Unavailable

16

CALIPER, R.

45201-MJ6-006

Unavailable

17

SEAL, PISTON

45209-166-006

$8.64

18

BRACKET, R. FR.

45210-MJ0-016

Unavailable

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MJ0-006

Unavailable

21

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

22

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

23

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

24

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

25

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

25

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

26

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

27

BOLT, FLANGE (10X32) This part replaces 95800-10032-07.

95801-10032-07

$3.21

27

BOLT, FLANGE (10X32)

95801-10032-07

$3.21
