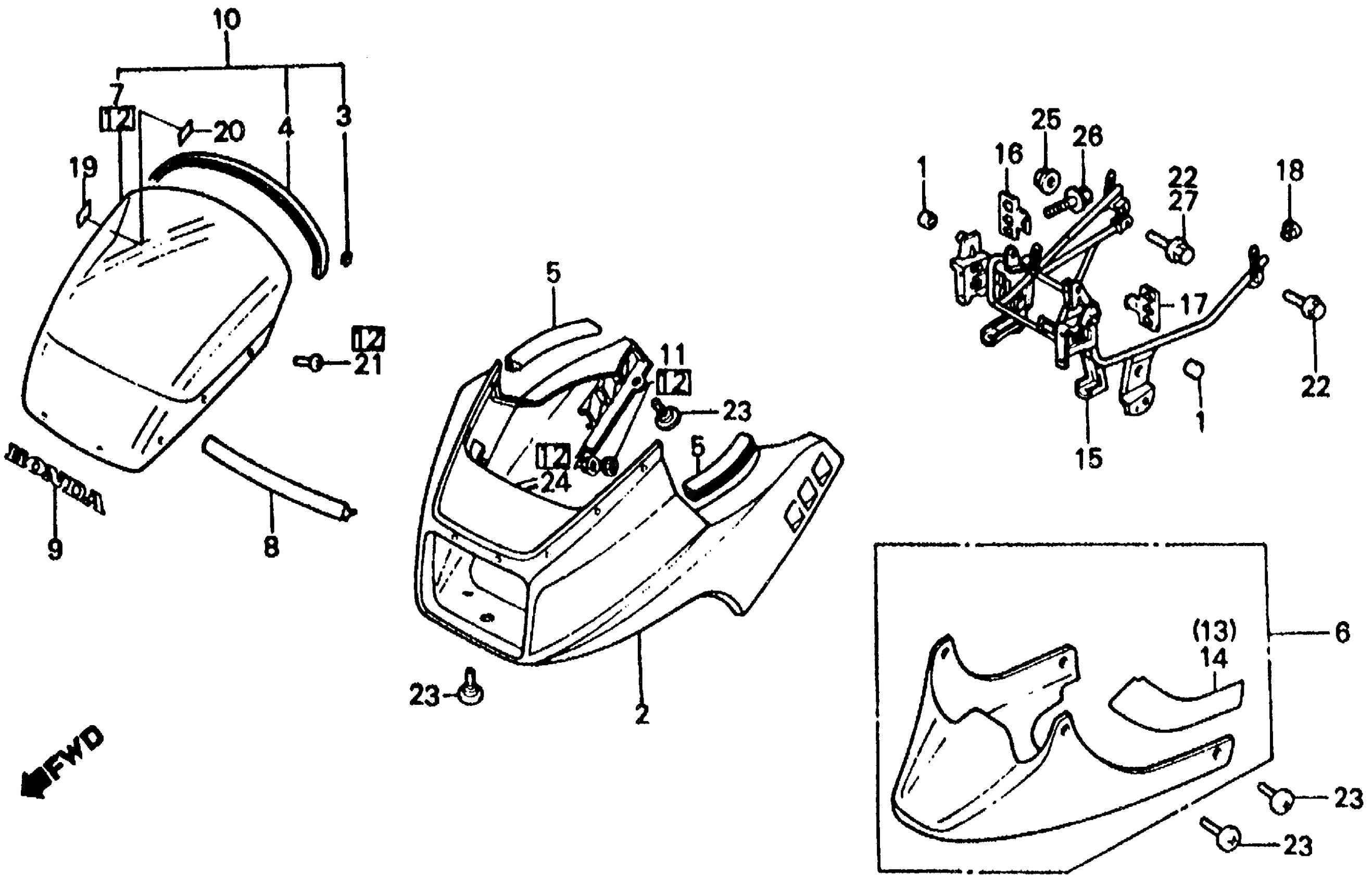

Honda VF500FA (84) 500 INTERCEPTOR, JPN, VIN# JH2PC120-EM000018 TO JH2PC120-EM007149 COWL Diagram

RUBBER, FR. FUEL TANK

17611-028-000

$4.07

COWL SET, FR. *R124CU* (TYPE1) (WL) (CANDY ALAMOANA RED)

641A0-MF2-000ZA

Unavailable

COWL SET, FR. *PB127CU* (TYPE2) (WL) (CANDY ALEUTIAN BLUE)

641A0-MF2-000ZB

Unavailable

CLIP, SCREEN MOLDING

64102-MA3-720

$4.00

MOLDING, WINDSCREEN This part replaces 64105-MF2-000.

64105-MJ4-505

Unavailable

RUBBER, COWL SIDE SEAL

64121-MF2-000

Unavailable

COWL (LOWER) *NH138* (WL) (SHASTA WHITE)

642A4-MF2-000ZA

Unavailable

WINDSCREEN (NOT AVAILABLE)

64200-MF2-000

Unavailable

RUBBER, SCREEN BASE

64201-MF2-000

Unavailable

MARK, WINDSCREEN (NOT AVAILABLE) This part replaces 64206-MF2-670.

80103-KT8-710

Unavailable

MARK, WINDSCREEN (NOT AVAILABLE)

80103-KT8-710

Unavailable

WINDSCREEN (NOT AVAILABLE) This part replaces 64208-MF2-000.

64225-MF2-315

Unavailable

WINDSCREEN (NOT AVAILABLE) This part replaces 64208-MF2-010.

64225-MF2-315

Unavailable

HEAT GUARD, R. COWL (LOWER)

64246-MF2-300

Unavailable

GUARD, L. COWL HEATER (LOWER)

64247-MF2-300

Unavailable

STAY, COWL (UPPER)

64501-MF2-000

Unavailable

PLATE, R. CONNECTOR HOLDER

64502-MF2-000

Unavailable

PLATE, L. CONNECTOR HOLDER

64503-MF2-000

$10.49

CAP, PIPE END

84102-MA3-770

Unavailable

LABEL, FAIRING MARK

87515-MF2-670

Unavailable

LABEL, WINDSCREEN CAUTION

87522-463-930

Unavailable

SCREW, SCREEN SETTING

90107-KE8-700

Unavailable

BOLT, FLANGE (8X18) This part replaces 90112-MA6-700.

95701-08018-07

$1.49

BOLT, FLANGE (8X18) This part replaces 95700-08018-07.

95701-08018-07

$1.49

BOLT, FLANGE (8X18)

95701-08018-07

$1.49

SCREW, FAIRING SETTING

90112-MC7-000

$6.48

NUT-WASHER (4MM)

90202-KE8-700

Unavailable

NUT, CAP (8MM)

90443-KF9-900

$4.27

NUT, CAP (8MM) This part replaces 90443-379-690.

90443-KF9-900

$4.27

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
