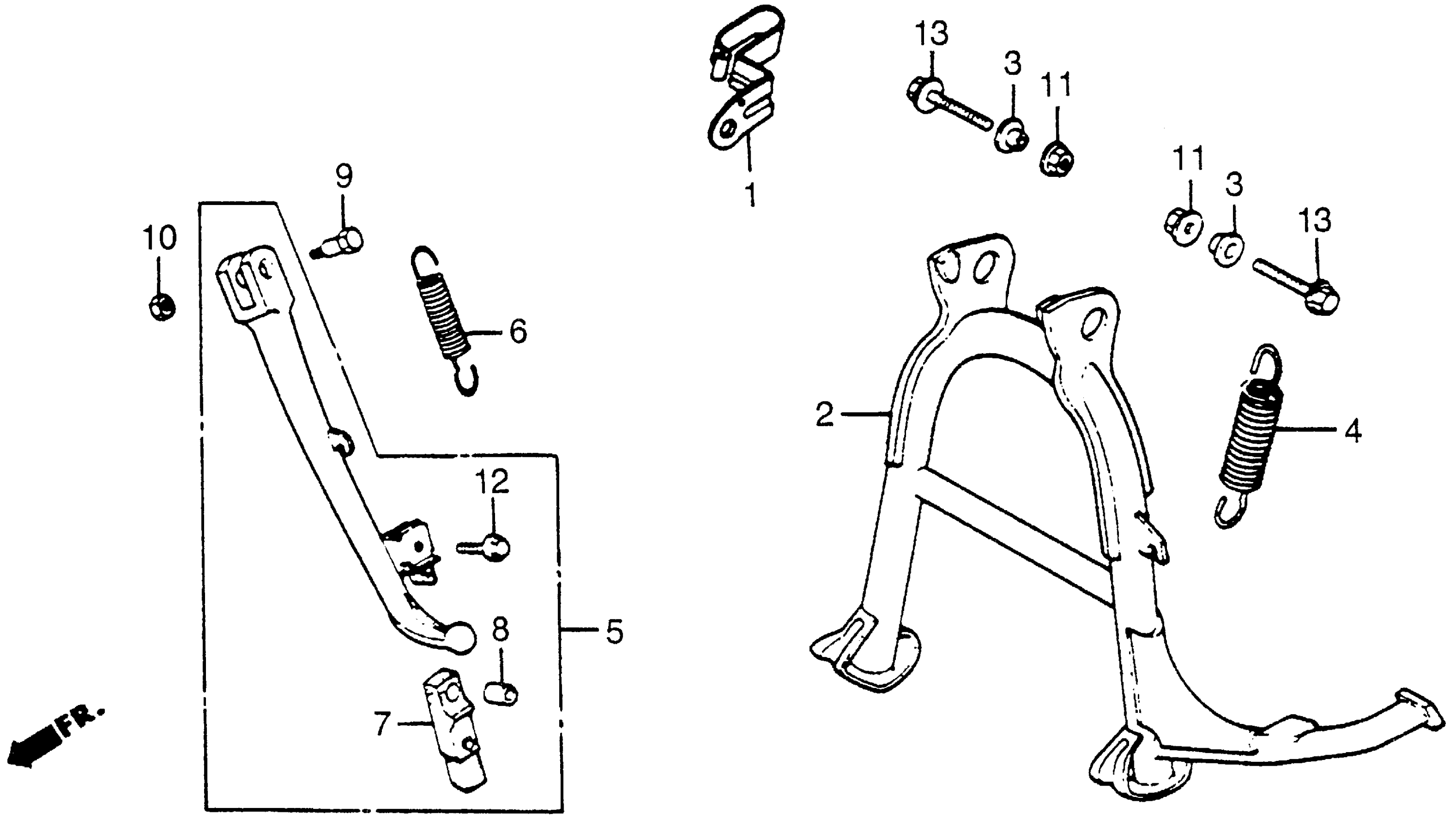

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 STAND Diagram

GUIDE, OVERFLOW TUBE

50178-MJ8-000

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-MJ8-000

Unavailable

COLLAR, MAIN STAND This part replaces 50503-MA6-000.

50503-MA6-010

$9.18

COLLAR, MAIN STAND

50503-MA6-010

$9.18

SPRING, MAIN STAND

50522-KE8-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MJ8-000

Unavailable

SPRING, SIDE STAND

50541-KE8-000

$3.80

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

NUT, HEX. (10MM)

94031-10070

Unavailable

NUT, FLANGE (10MM)

94050-10080

$3.24

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

BOLT, FLANGE (10X28)

95701-10028-08

$2.19

BOLT, FLANGE (10X28) This part replaces 95800-10028-08.

95701-10028-08

$2.19
