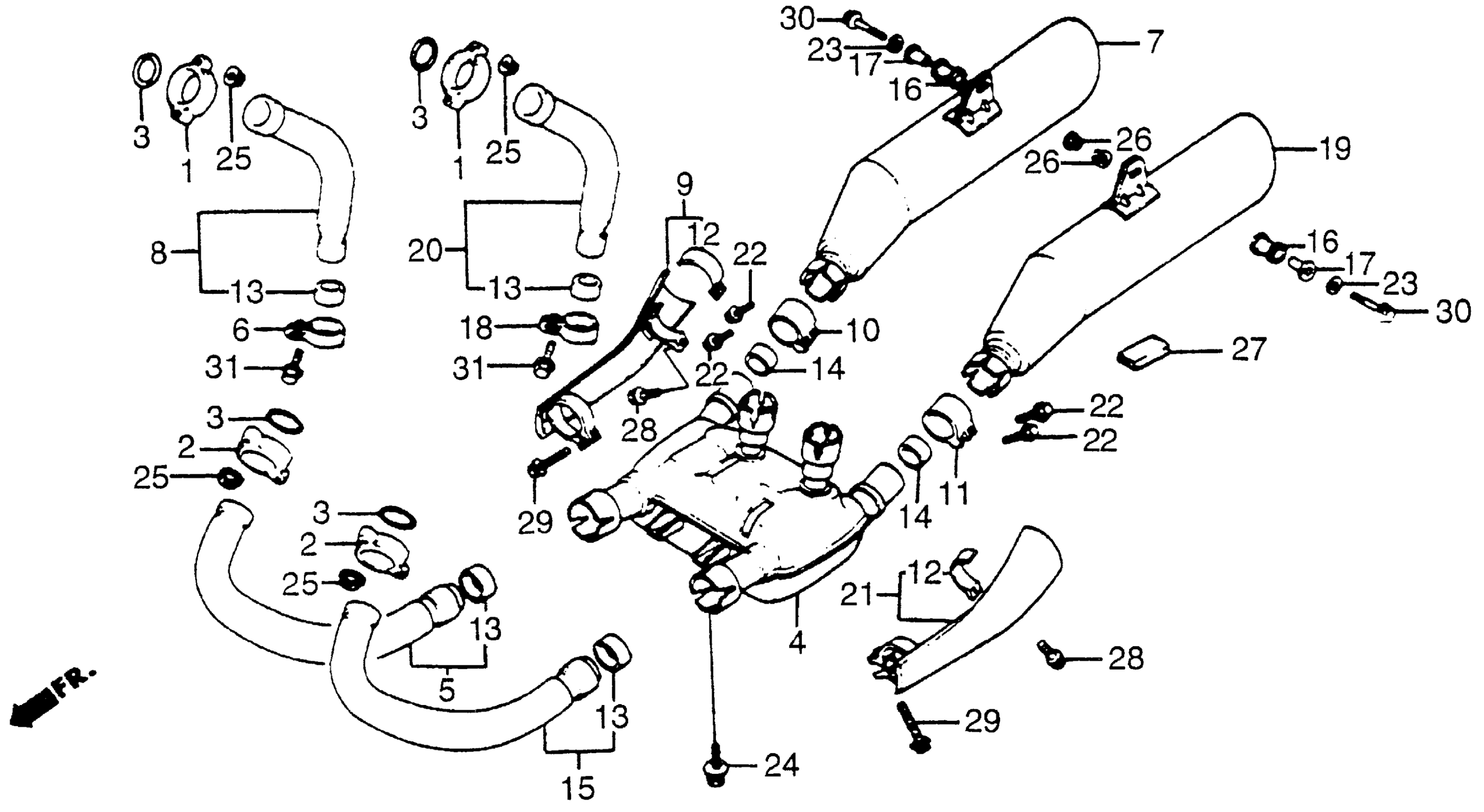

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-KE7-000

Unavailable

2

JOINT, EX. PIPE

18231-MJ8-000

Unavailable

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

CHAMBER, EX.

18310-MJ8-003

Unavailable

5

PIPE, R. FR. EX.

18320-MJ8-003

Unavailable

6

BAND, R. FR. EX. PIPE (NOT AVAILABLE)

18325-KE7-000

Unavailable

7

MUFFLER, R.

18330-MJ8-671

Unavailable

8

PIPE, R. RR. EX.

18370-MJ8-003

Unavailable

9

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18375-MJ8-003

Unavailable

10

BAND, R. MUFFLER

18376-MB4-003

$41.21

11

BAND, L. MUFFLER

18377-MB4-003

$41.16

12

BAND A (NOT AVAILABLE)

18380-MB3-000

Unavailable

13

GASKET, MUFFLER This part replaces 18391-KE8-000.

18391-KE8-010

Unavailable

13

GASKET, MUFFLER

18391-KE8-010

Unavailable

14

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

14

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$16.06

15

PIPE, L. FR. EX. (NOT AVAILABLE)

18420-MJ8-003

Unavailable

16

RUBBER, MUFFLER MOUNTING

18421-KE7-000

Unavailable

17

COLLAR, MUFFLER SETTING

18422-KE7-000

Unavailable

18

BAND, L. FR. EX. PIPE (NOT AVAILABLE)

18425-KE7-000

Unavailable

19

MUFFLER, L.

18430-MJ8-671

Unavailable

20

PIPE, L. RR. EX.

18470-MJ8-003

Unavailable

21

PROTECTOR, L. CHAMBER

18475-MJ8-003

Unavailable

22

BOLT, FLANGE (8X37) | Use up to Frame SN FM100811

90118-471-000

$3.19

22

BOLT, FLANGE (8X40) | Use from Frame SN FM100812 This part replaces 95800-08040-00.

95801-08040-00

$1.49

22

BOLT, FLANGE (8X40) | Use from Frame SN FM100812

95801-08040-00

$1.49

22

BOLT, FLANGE (8X40) | Use from Frame SN FM100812 This part replaces 95821-08040-00.

95801-08040-00

$1.49

23

WASHER (8.5X26)

90504-MA6-000

$1.66

24

BOLT-WASHER (8X20)

93404-08020-08

$1.83

24

BOLT-WASHER (8X20) This part replaces 93484-08020-08.

93404-08020-08

$1.83

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

NUT, FLANGE (8MM)

94050-08080

$1.49

27

RUBBER A, STAND STOPPER

95011-61000

$1.49

28

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

29

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

29

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

30

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

30

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

31

BOLT, FLANGE (8X35)

95730-08035-00

Unavailable
