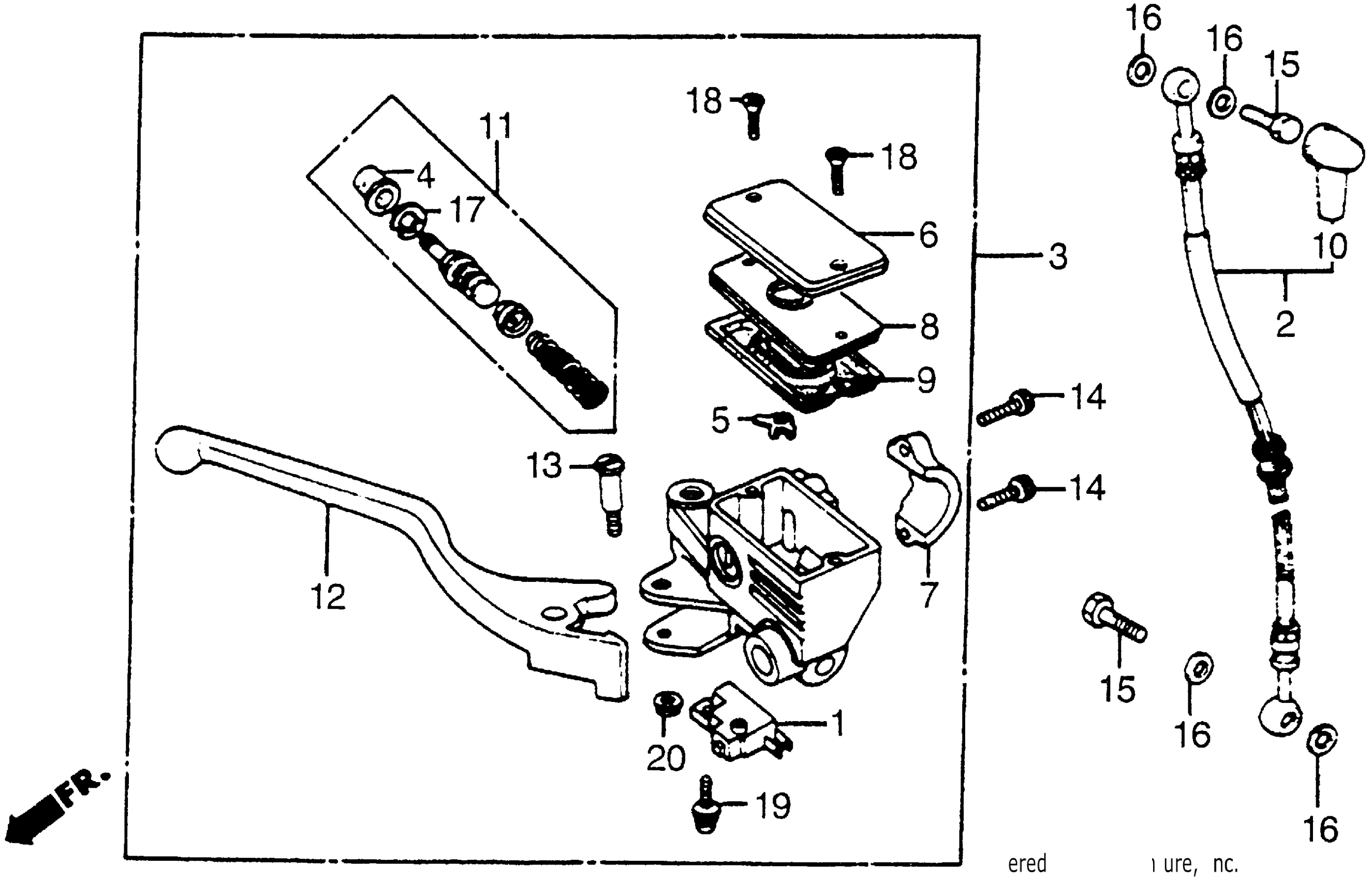

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 FRONT BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, FR. BRAKE (NOT AVAILABLE)

45126-MJ8-003

Unavailable

3

CYLINDER SUB-ASSY. This part replaces 45500-MF5-772.

45510-MF5-405

Unavailable

4

BOOT

45504-410-003

$12.16

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

7

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

8

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

9

DIAPHRAGM

45520-MA5-672

$18.13

10

BOOT, MASTER CYLINDER

45522-422-000

$8.68

11

MASTER CYLINDER SET

45530-MA4-671

$47.76

12

LEVER, R. HANDLE | Use up to Frame SN FM100811 This part replaces 53175-KE8-006.

53175-MK7-671

$17.88

12

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

12

LEVER, R. HANDLE | Use up to Frame SN FM100811 This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

13

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

14

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

15

BOLT, OIL (10X22)

90145-KM3-751

$11.02

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

CIRCLIP

90651-MA5-671

$2.66

18

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

18

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

19

SCREW-WASHER (4X12)

93893-04012-08

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

20

NUT, FLANGE (6MM) | Use up to Frame SN FM100393

94050-06000

$1.49

20

NUT, CAP (6MM) | Use from Frame SN FM100394

90201-415-000

$2.05
