- VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071
FRAME

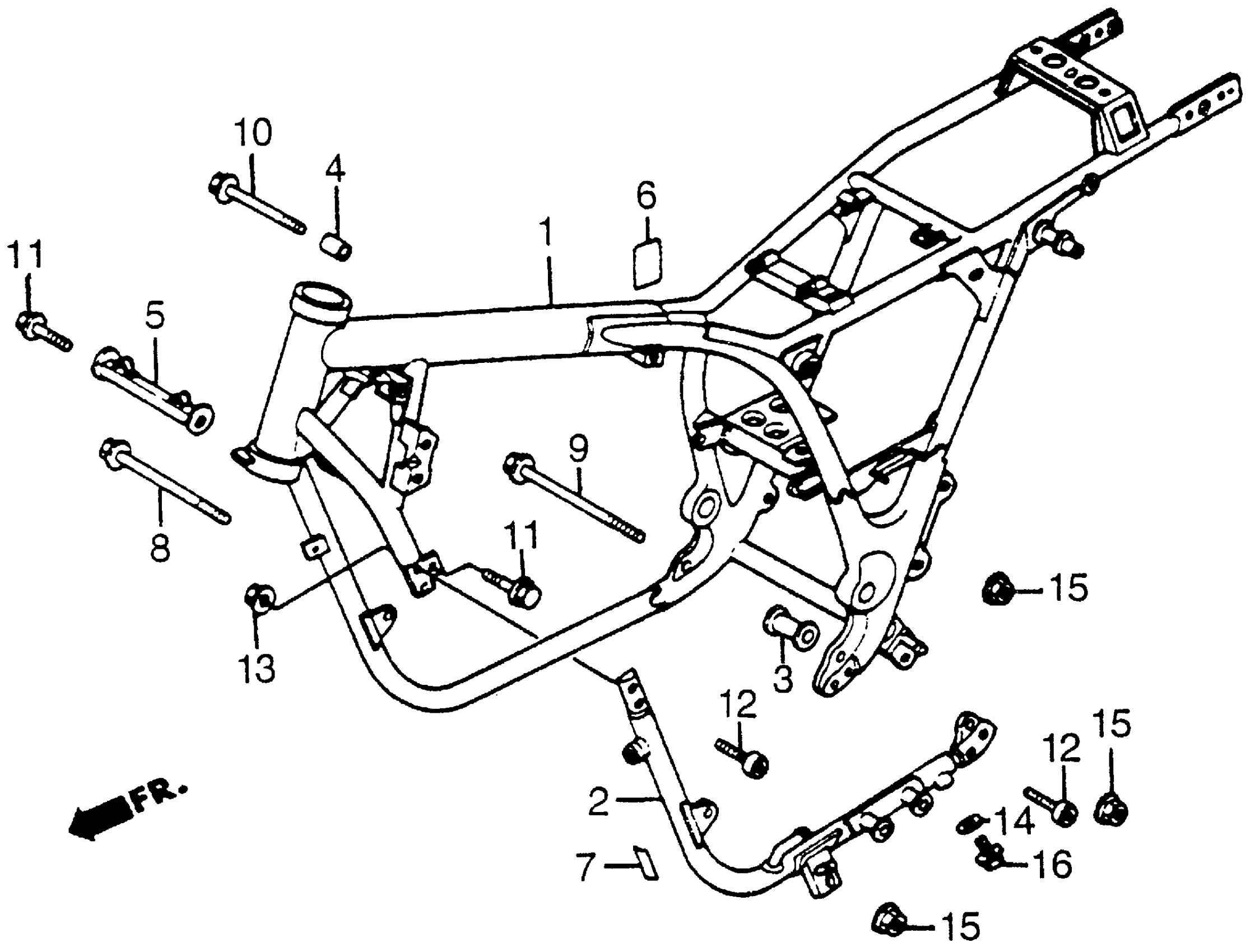

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 FRAME Diagram
#
Description
Price
1
FRAME *NH1* (BLACK)
50100-MJ8-681ZA
Unavailable
2
SUB-FRAME *NH1* (BLACK)
50210-MJ8-680ZA
Unavailable
3
COLLAR, ENGINE MOUNTING
50213-KE7-000
Unavailable
4
COLLAR D, ENGINE SIDE (NOT AVAILABLE)
50218-KE8-000
Unavailable
5
STIFFENER, DOWN TUBE
50220-MJ8-000
Unavailable
6
LABEL, BATTERY CAUTION (NOT AVAILABLE)
87506-MJ8-670
Unavailable
7
MARK, RADIATOR CAUTION (NOT AVAILABLE)
87508-415-670
Unavailable
8
BOLT, FLANGE (10X260)
90101-KE8-000
Unavailable
9
BOLT, FLANGE (10X282)
90102-KE7-000
Unavailable
10
BOLT, FLANGE (10X194)
90103-KE7-000
Unavailable
11
BOLT, DOWN TUBE CROSS PIPE
90106-MJ8-000
Unavailable
12
BOLT, SOCKET (8X27)
90160-MJ8-000
Unavailable
13
NUT, FLANGE (8MM)
90208-425-870
Unavailable
