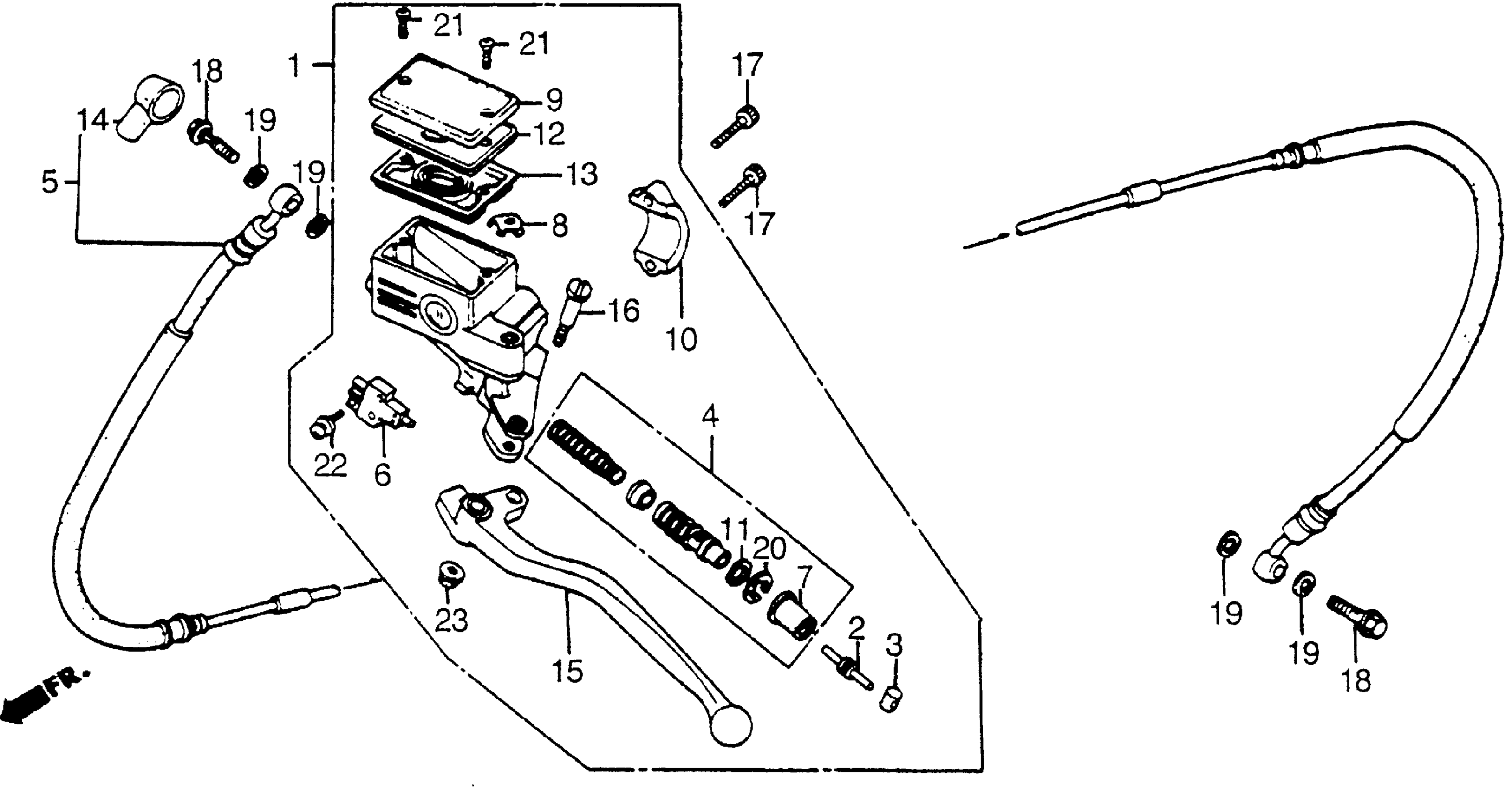

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-ME9-772

Unavailable

2

ROD, PUSH

22884-MB0-006

$20.66

3

BUSH

22885-MB0-006

$12.95

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

5

PIPE ASSY., CLUTCH (NOT AVAILABLE)

22900-MJ8-000

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

10

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.84

12

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

13

DIAPHRAGM

45520-MA5-672

$18.13

14

BOOT, MASTER CYLINDER

45522-422-000

$8.68

15

LEVER, L. HANDLEBAR

53178-KE8-006

$24.77

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

17

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

18

BOLT, OIL (10X22)

90145-KM3-751

$11.02

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

NUT, FLANGE (6MM) | Use up to Frame SN FM100393

94050-06000

$1.49

23

NUT, CAP (6MM) | Use from Frame SN FM100394

90201-415-000

$2.05
