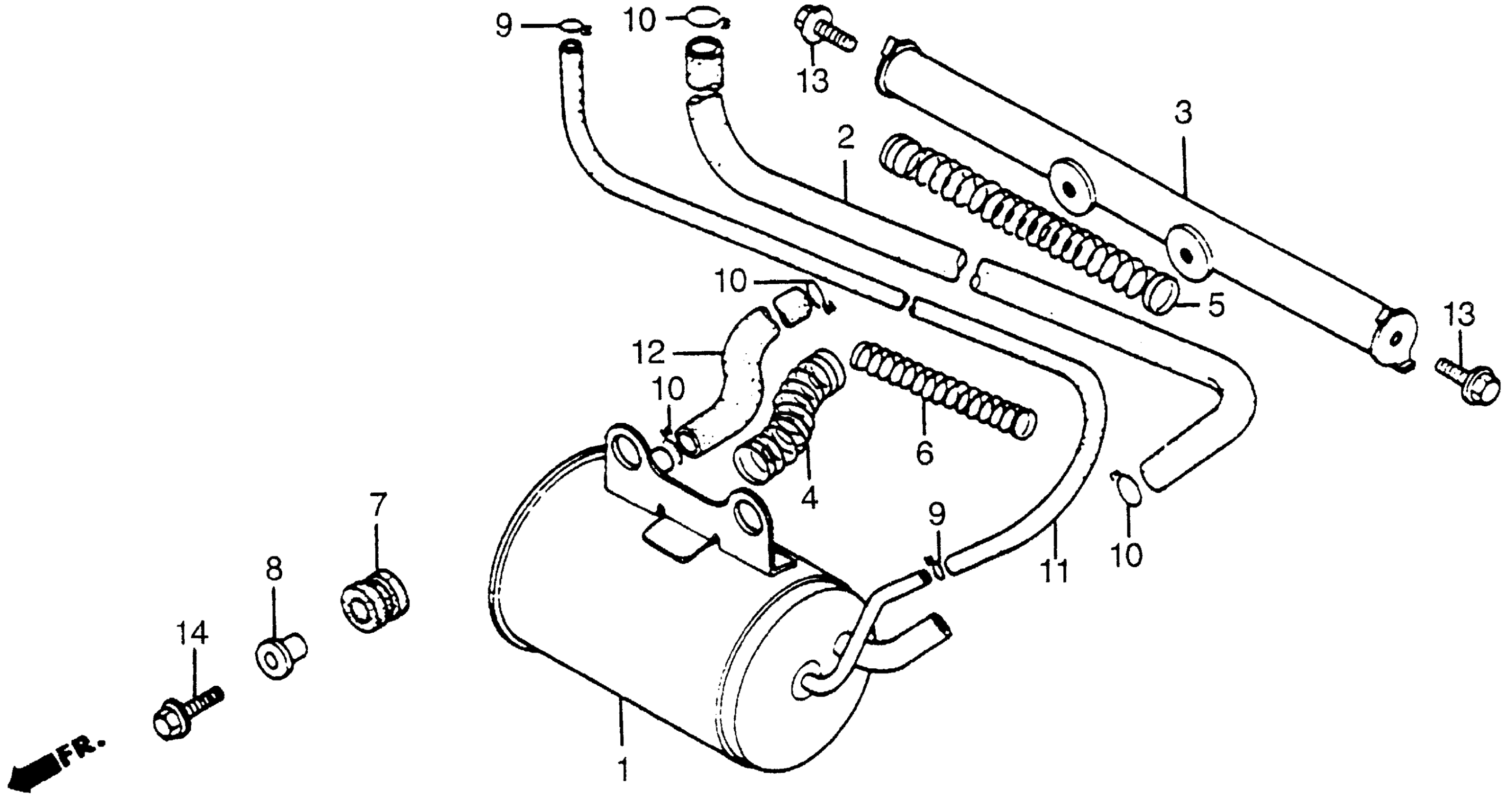

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 CANISTER Diagram

CANISTER

17410-MJ8-681

Unavailable

TUBE, CANISTER PURGE (NOT AVAILABLE)

17413-MJ8-680

Unavailable

STAY, CANISTER SETTING

17415-MJ8-680

Unavailable

SPRING, AIR PURGE TUBE COVER

17467-MJ8-680

Unavailable

SPRING, PURGE TUBE COVER | Use up to Frame SN FM100403

17468-MJ8-680

Unavailable

SPRING, FUEL TUBE COVER | Use from Frame SN FM100404

16715-MB0-950

Unavailable

SPRING, CHARGE TUBE COVER | Use up to Frame SN FM100403

17469-MJ8-680

Unavailable

SPRING, TUBE COVER (9MM) | Use from Frame SN FM100404 This part replaces 17469-ME9-750.

17469-MF8-790

Unavailable

SPRING, TUBE COVER (9MM) | Use from Frame SN FM100404

17469-MF8-790

Unavailable

RUBBER, CANISTER SETTING

19051-MB4-880

$3.13

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.69

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE, VACUUM (4.5X1000) (4.5X650)

95005-45001-20M

$34.14

BULK HOSE, VACUUM (8X1000) (8X75)

95005-80001-20M

$23.91

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
