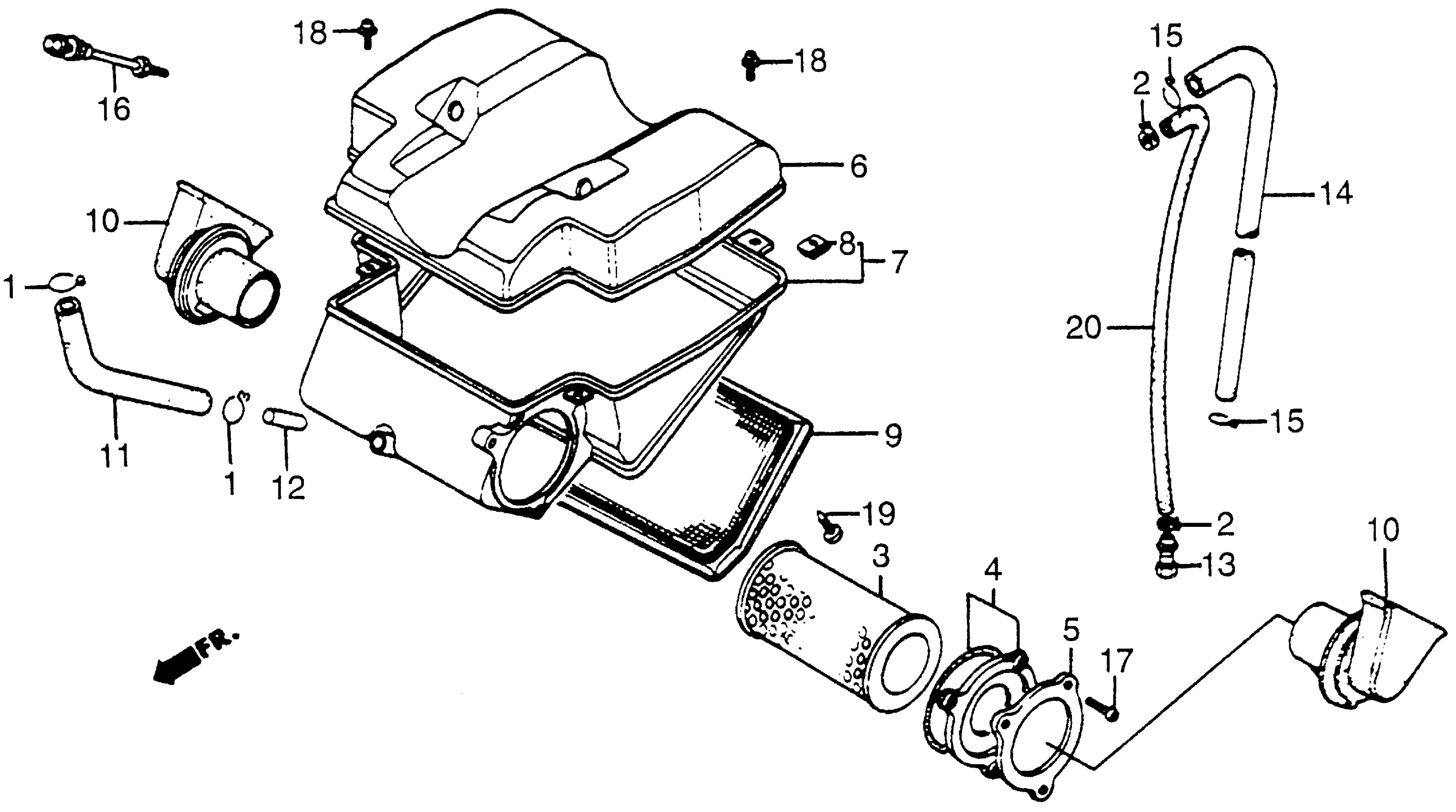

Honda VF500CAC (85) V30 MAGNA, JPN, VIN# JH2PC131-FM100004 TO JH2PC131-FM101071 AIR CLEANER Diagram

CLIP, BREATHER TUBE

15772-551-000

$2.05

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

CLIP, FUEL HOSE

16969-MB1-000

$5.10

ELEMENT, AIR CLEANER

17210-MJ8-000

Unavailable

CAP, AIR CLEANER ELEMENT (NOT AVAILABLE) | Use up to Frame SN FM100470 This part replaces 17211-MJ8-000.

17211-MJ8-010

Unavailable

CAP, AIR CLEANER ELEMENT (NOT AVAILABLE) | Use from Frame SN FM100471

17211-MJ8-010

Unavailable

PLATE, AIR CLEANER CAP | Use up to Frame SN FM100470

17212-MJ8-000

Unavailable

COVER, AIR CLEANER HOUSING

17220-MJ8-000

Unavailable

HOUSING, AIR CLEANER

17230-MJ8-000

Unavailable

CLAMP, AIR CLEANER HOUSING (NOT AVAILABLE)

17235-MJ8-000

Unavailable

TRAP, FLAME (NOT AVAILABLE)

17252-MJ8-000

Unavailable

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17254-MJ8-000

Unavailable

TUBE A, BREATHER

17351-MJ8-000

Unavailable

FILTER, BREATHER (NOT AVAILABLE)

17352-MJ8-000

Unavailable

PLUG, BREATHER TUBE

17370-419-700

$3.74

TUBE, BREATHER

17553-MJ8-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

BOLT, AIR CLEANER SETTING

90103-MJ8-000

Unavailable

SCREW-WASHER (5X16)

93891-05016-07

$1.49

SCREW-WASHER (5X14)

93891-05014-07

$1.49

SCREW, TAPPING (5X12)

93901-35210

$1.49

BULK HOSE, VINYL (8X12X8000) (8X12X650)

95003-23008-60M

Unavailable
