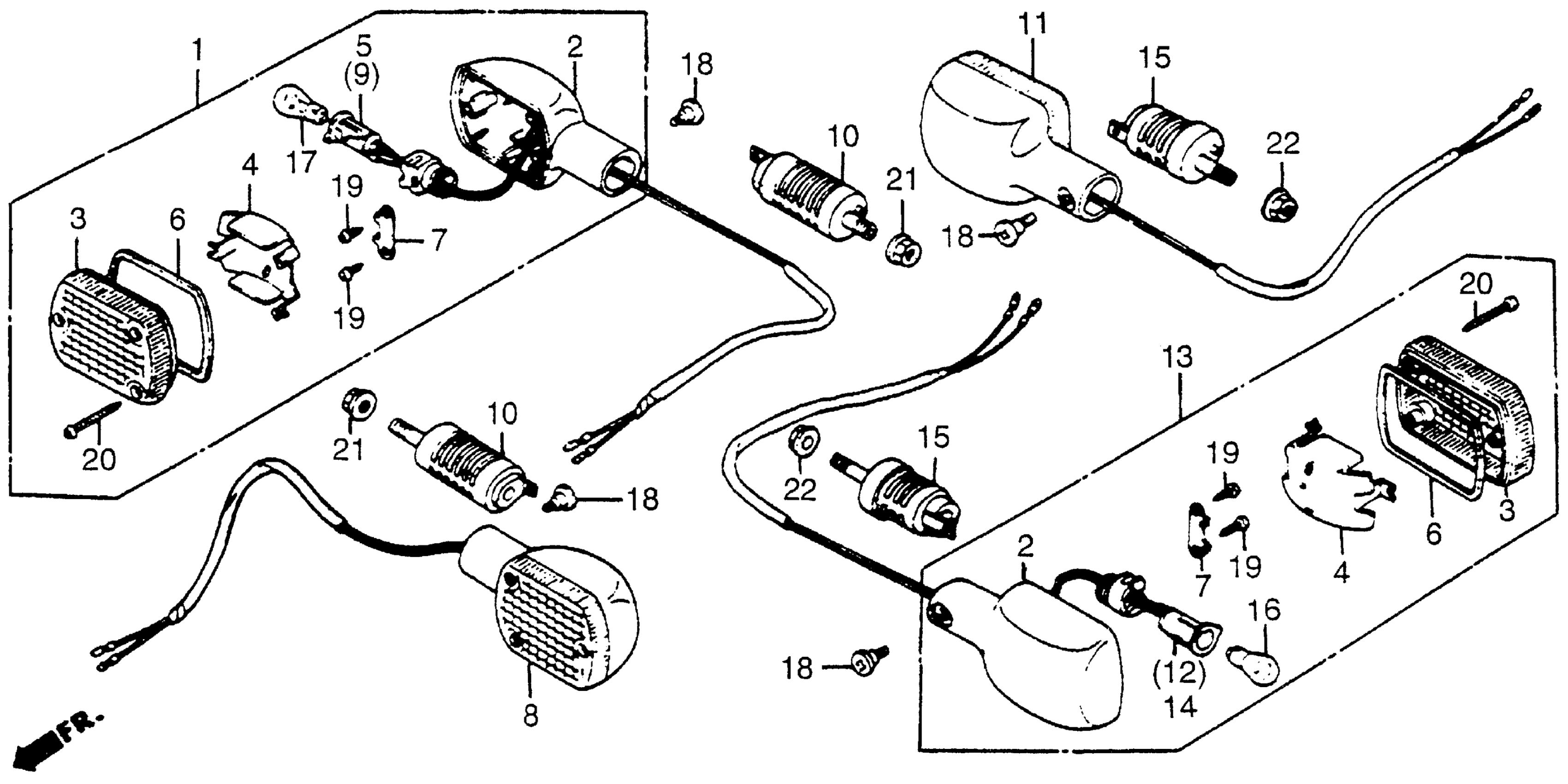

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY.

33400-MF5-405

Unavailable

1

TURN SIGNAL ASSY. This part replaces 33400-MF5-770.

33400-MF5-405

Unavailable

2

BASE, TURN SIGNAL

33401-MB1-003

$61.57

3

LENS, TURN SIGNAL

33402-MB1-003

$14.25

4

REFLECTOR, TURN SIGNAL

33403-MB1-671

Unavailable

5

WIRE, R. TURN SIGNAL This part replaces 33405-MF5-770.

33405-MM2-405

Unavailable

6

GASKET, LENS

33407-MB1-003

$5.35

7

HOLDER

33408-MB1-003

$3.59

8

TURN SIGNAL ASSY.

33400-MF5-405

Unavailable

8

TURN SIGNAL ASSY. This part replaces 33400-MF5-840.

33400-MF5-405

Unavailable

8

TURN SIGNAL ASSY. This part replaces 33450-MF5-770.

33400-MF5-405

Unavailable

9

WIRE, R. TURN SIGNAL This part replaces 33455-MF5-770.

33405-MM2-405

Unavailable

10

STAY, FR. TURN SIGNAL

33490-MB1-700

$42.28

11

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-MJ8-670

Unavailable

12

SOCKET, TURN SIGNAL This part replaces 33605-MF8-770.

33605-MK3-405

Unavailable

12

SOCKET, TURN SIGNAL

33605-MK3-405

Unavailable

13

TURN SIGNAL ASSY., L. RR.

33650-MJ8-670

Unavailable

14

SOCKET, TURN SIGNAL

33605-MK3-405

Unavailable

14

SOCKET, TURN SIGNAL This part replaces 33655-MF8-770.

33605-MK3-405

Unavailable

15

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33690-MJ8-000

Unavailable

16

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

17

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

18

SCREW, SPECIAL (6X8)

90380-MB1-000

$4.96

18

SCREW, SPECIAL (6X8) This part replaces 90380-ME9-000.

90380-MB1-000

$4.96

19

SCREW, TAPPING (4X12)

93901-34320

$1.49

20

SCREW, TAPPING (4X25)

93901-34610

$1.49

21

NUT, FLANGE (12MM)

94050-12000

$1.49

22

NUT, FLANGE (12MM)

94050-12080

$1.86
