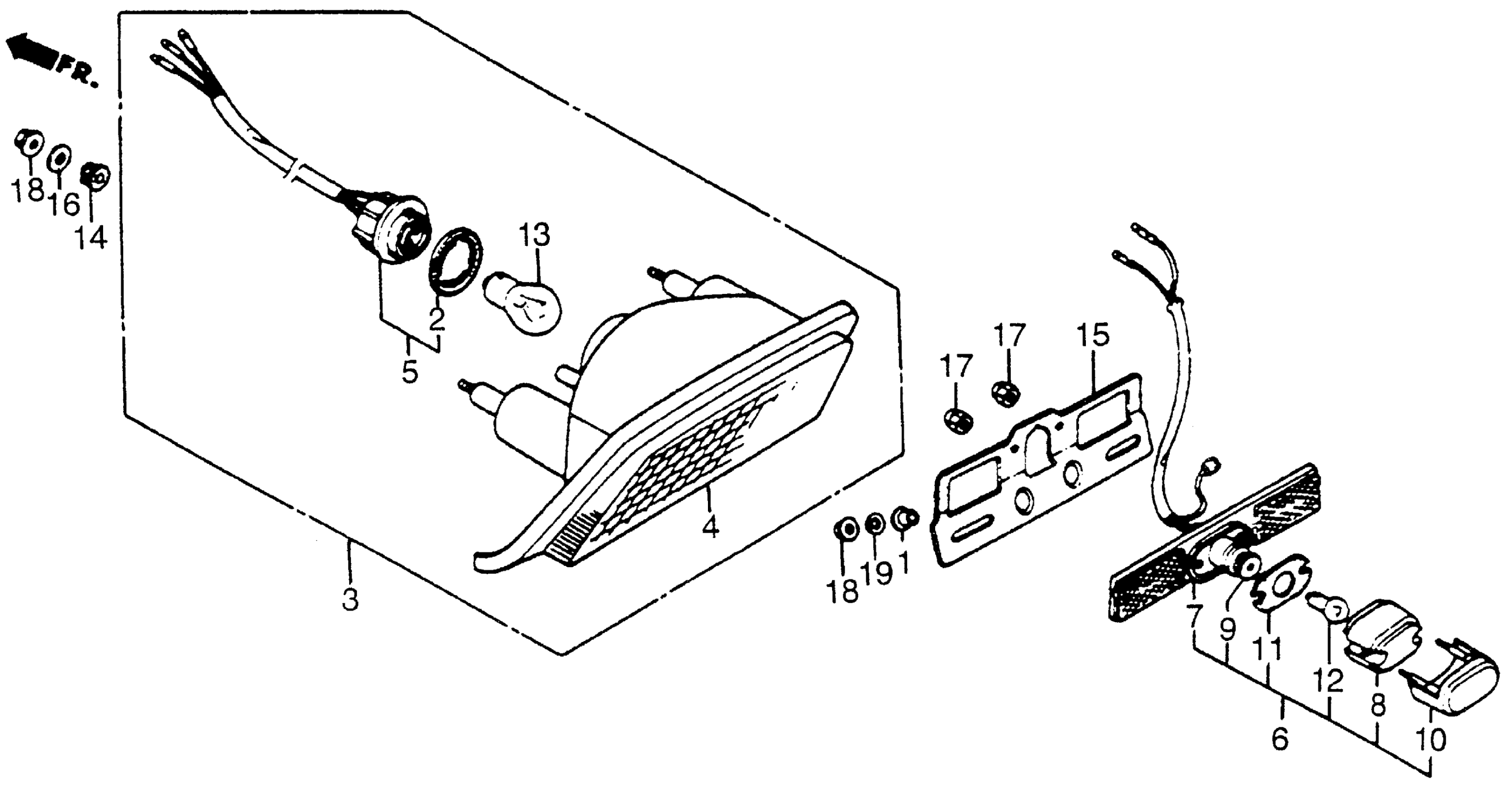

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 TAILLIGHT Diagram

#

Description
Price

1

COLLAR B, ROD END

31215-MJ3-000

Unavailable

2

GASKET, SEAL

33518-SA2-003

$4.38

3

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-MJ8-671

Unavailable

4

TAILLIGHT SUB-ASSY. (NOT AVAILABLE)

33704-MJ8-671

Unavailable

5

WIRE, TAILLIGHT

33705-MJ8-671

Unavailable

6

LIGHT ASSY., LICENSE

33720-MJ8-670

Unavailable

7

BASE (NOT AVAILABLE)

33721-MJ8-670

Unavailable

8

LENS, LICENSE LIGHT This part replaces 33722-MB1-003.

33722-MB1-013

$19.68

8

LENS, LICENSE

33722-MB1-013

$19.68

9

WIRE, LICENSE LIGHT

33725-MB4-671

Unavailable

9

WIRE, LICENSE LIGHT (NOT AVAILABLE) This part replaces 33725-ME9-770.

33725-MB4-671

Unavailable

10

COVER

33727-MB1-003

Unavailable

11

GASKET, LENS

33729-MB1-003

$6.30

12

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

12

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

13

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

13

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

14

RUBBER, TAILLIGHT

80201-MJ8-000

$5.03

15

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-MJ8-670

Unavailable

16

WASHER, TANK SETTING

90136-428-870

$1.56

17

NUT, CAP (4MM)

94021-04020-0S

Unavailable

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

WASHER, PLAIN (6MM)

94103-06800

$1.49
