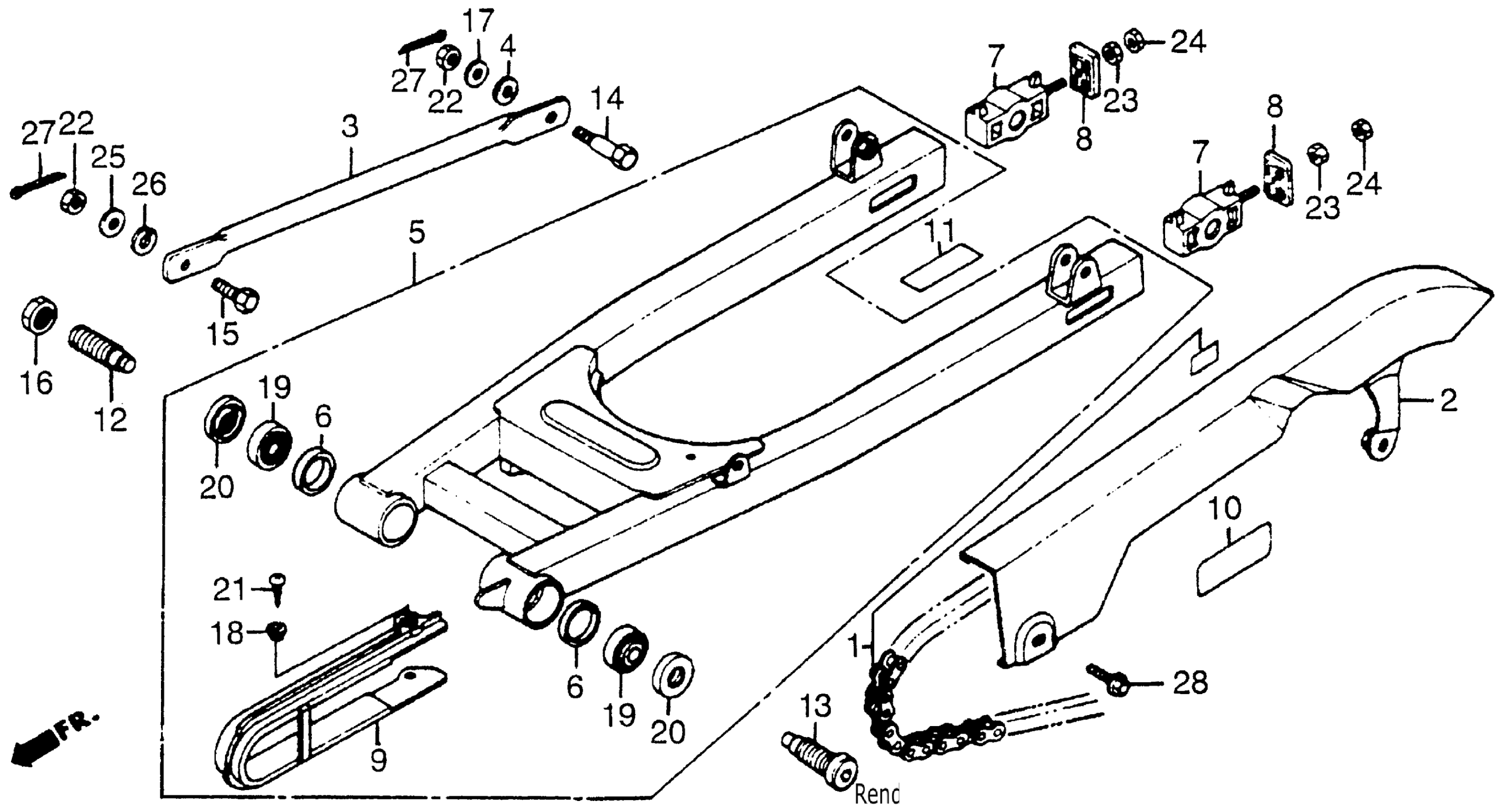

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (50V3-108LE)

405A3-MJ8-003

Unavailable

1

CHAIN SET, DRIVE (RK50F0-108LE)

405A3-MJ8-005

Unavailable

2

CASE, DRIVE CHAIN

40510-MJ8-000

Unavailable

3

ARM, RR. BRAKE STOPPER This part replaces 43431-415-000.

43431-415-010

Unavailable

3

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

4

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

5

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MJ8-000ZA

Unavailable

6

CAP, SWINGARM PIVOT (NOT AVAILABLE)

52118-MJ8-003

Unavailable

7

COLLAR, CHAIN TENSIONER

52120-KG4-000

Unavailable

8

PLATE, CHAIN TENSIONER (NOT AVAILABLE)

52121-KG4-000

Unavailable

9

SLIDER, CHAIN (NOT AVAILABLE)

52170-MJ8-000

Unavailable

10

LABEL, TIRE CAUTION

87505-MJ8-670

Unavailable

11

LABEL, DRIVE CHAIN CAUTION

87507-MJ8-670

Unavailable

12

BOLT, R. SWINGARM PIVOT

90121-MJ8-000

Unavailable

13

BOLT, L. SWINGARM PIVOT

90122-MJ8-000

Unavailable

14

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

15

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

16

NUT, PIVOT LOCK

90301-KE8-000

Unavailable

17

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

17

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

18

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

19

BEARING (30203J) This part replaces 91066-MC7-003.

91066-MC7-004

Unavailable

19

BEARING (30203J)

91066-MC7-004

Unavailable

20

DUST SEAL (22X40X5)

91268-KE8-003

Unavailable

20

DUST SEAL (22X40X5) This part replaces 91268-KE8-006.

91268-KE8-003

Unavailable

21

SCREW, TAPPING (5X12)

93901-25220

$1.49

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM)

94031-08000

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, COTTER (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49

28

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

28

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
