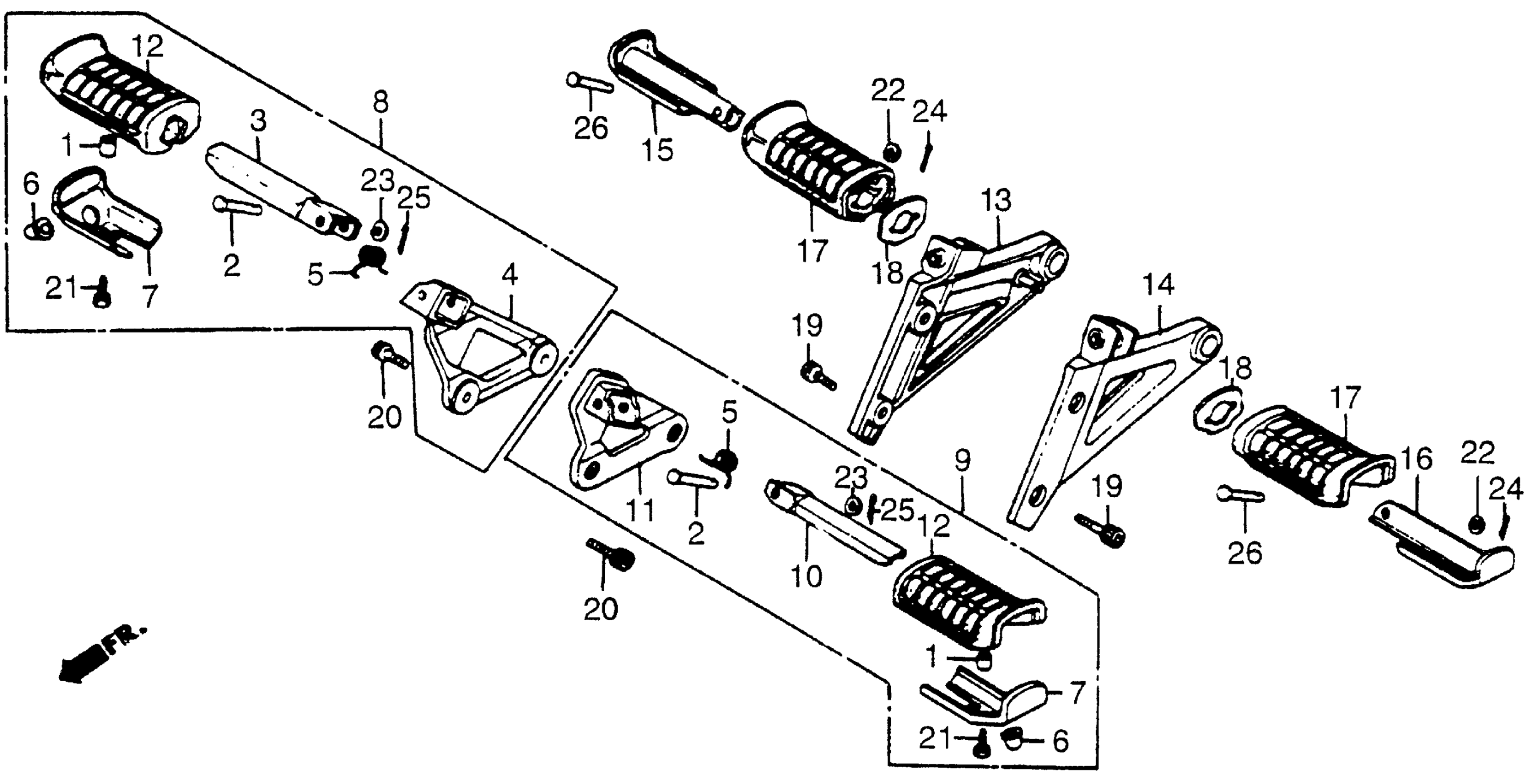

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

BAR, R. FOOTPEG

50612-MB1-000

Unavailable

4

BRACKET, R. STEP (NOT AVAILABLE)

50615-MJ8-000

Unavailable

5

SPRING, STEP RETURN

50617-MB1-700

$5.80

6

SLIDER, STEP

50618-MB1-000

$4.13

7

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

8

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MJ8-000

Unavailable

9

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MJ8-000

Unavailable

10

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

11

BRACKET, L. STEP

50645-MJ8-000

Unavailable

12

RUBBER, MAIN FOOTPEG

50661-ME9-000

Unavailable

13

HOLDER, R. PILLION STEP

50680-MJ8-000

Unavailable

14

HOLDER, L. PILLION STEP

50690-MJ8-000

Unavailable

15

BAR, R. PILLION STEP

50711-MB1-000

Unavailable

16

BAR, L. PILLION FOOTPEG

50712-MB1-000

Unavailable

17

RUBBER, PILLION STEP

50713-MB1-000

$15.82

18

WASHER, PILLION STEP

50714-MB1-000

Unavailable

19

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

19

BOLT, SOCKET (8X22) This part replaces 90119-MB4-000.

90119-KV0-000

Unavailable

20

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

20

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

PIN, COTTER (1.6X10)

94201-16100

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN C, PILLION FOOTPEG

95015-83000

$2.41
