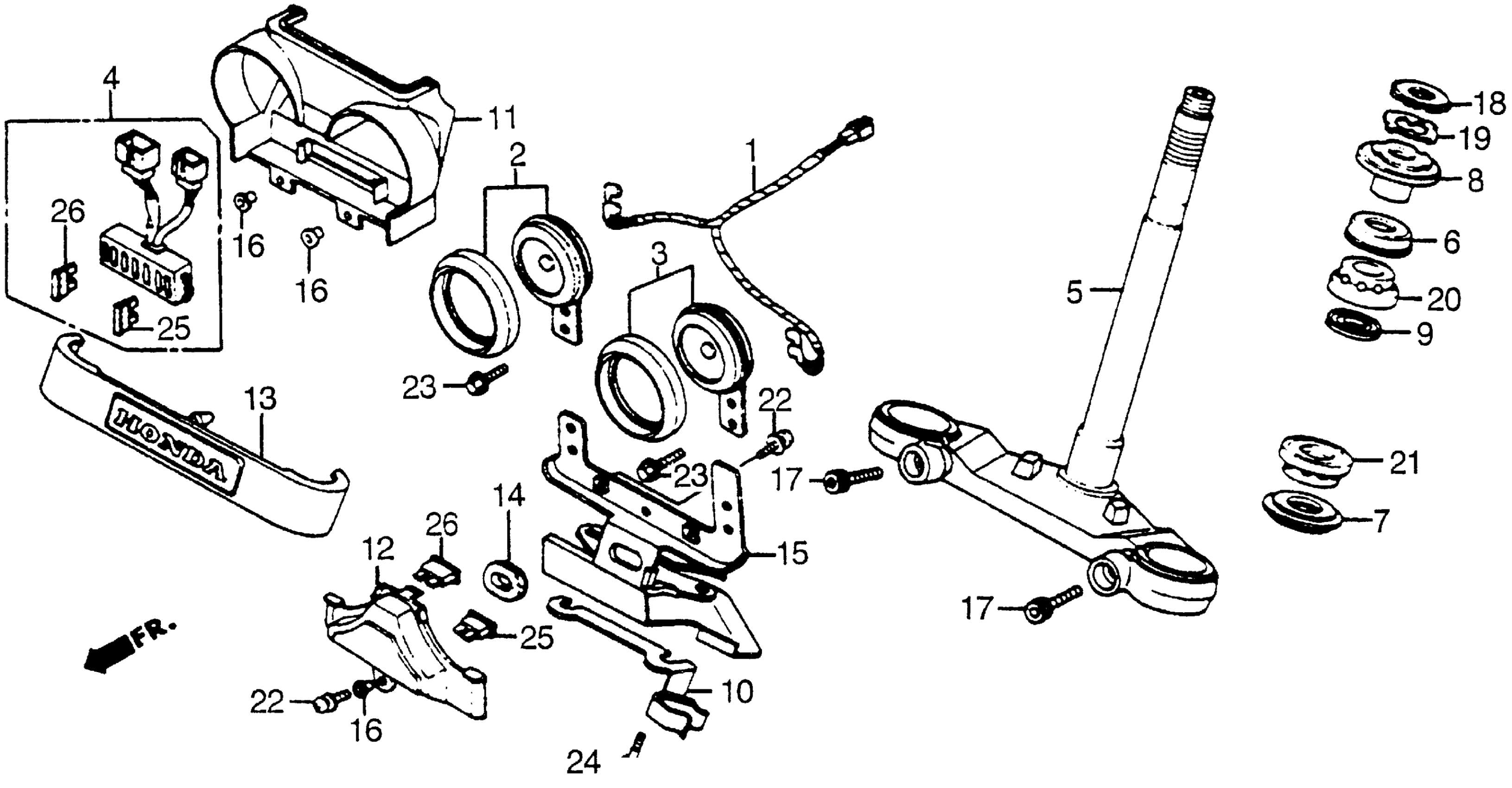

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 STEERING STEM Diagram

#

Description
Price

1

SUB-HARNESS, HORN

32106-MJ8-000

Unavailable

2

HORN ASSY. (HIGH) This part replaces 38110-MJ8-671.

38110-MJ8-672

Unavailable

2

HORN ASSY. (HIGH)

38110-MJ8-672

Unavailable

3

HORN ASSY. (LOW) This part replaces 38120-MJ8-671.

38120-MJ8-672

Unavailable

3

HORN ASSY. (LOW)

38120-MJ8-672

Unavailable

4

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MJ8-672

Unavailable

5

STEM, STEERING

53200-MJ8-000

Unavailable

6

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

7

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

8

THREAD, STEERING HEAD TOP

53220-MB2-000

$34.39

9

HOLDER, GREASE

53223-371-010

Unavailable

11

CASE, FUSE HOLDER

61305-MJ8-000

Unavailable

12

COVER, FUSE HOLDER

61306-MJ8-000

Unavailable

13

COVER, BRIDGE (LOWER) (NOT AVAILABLE)

61401-MJ8-770

Unavailable

14

GROMMET, COVER (LOWER)

61402-MJ8-000

Unavailable

15

STAY, HORN & FUSE BOX

61405-MJ8-000

Unavailable

16

COLLAR, SIDE COVER

61406-MB1-000

Unavailable

17

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

18

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

19

WASHER, LOCK

90506-425-830

$7.05

20

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

20

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

21

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

21

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

22

SCREW-WASHER (5X12)

93891-05012-07

$1.49

23

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

23

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

25

FUSE, BLADE (10A)

98200-31000

$1.49

26

FUSE, BLADE (15A)

98200-31500

$1.49
