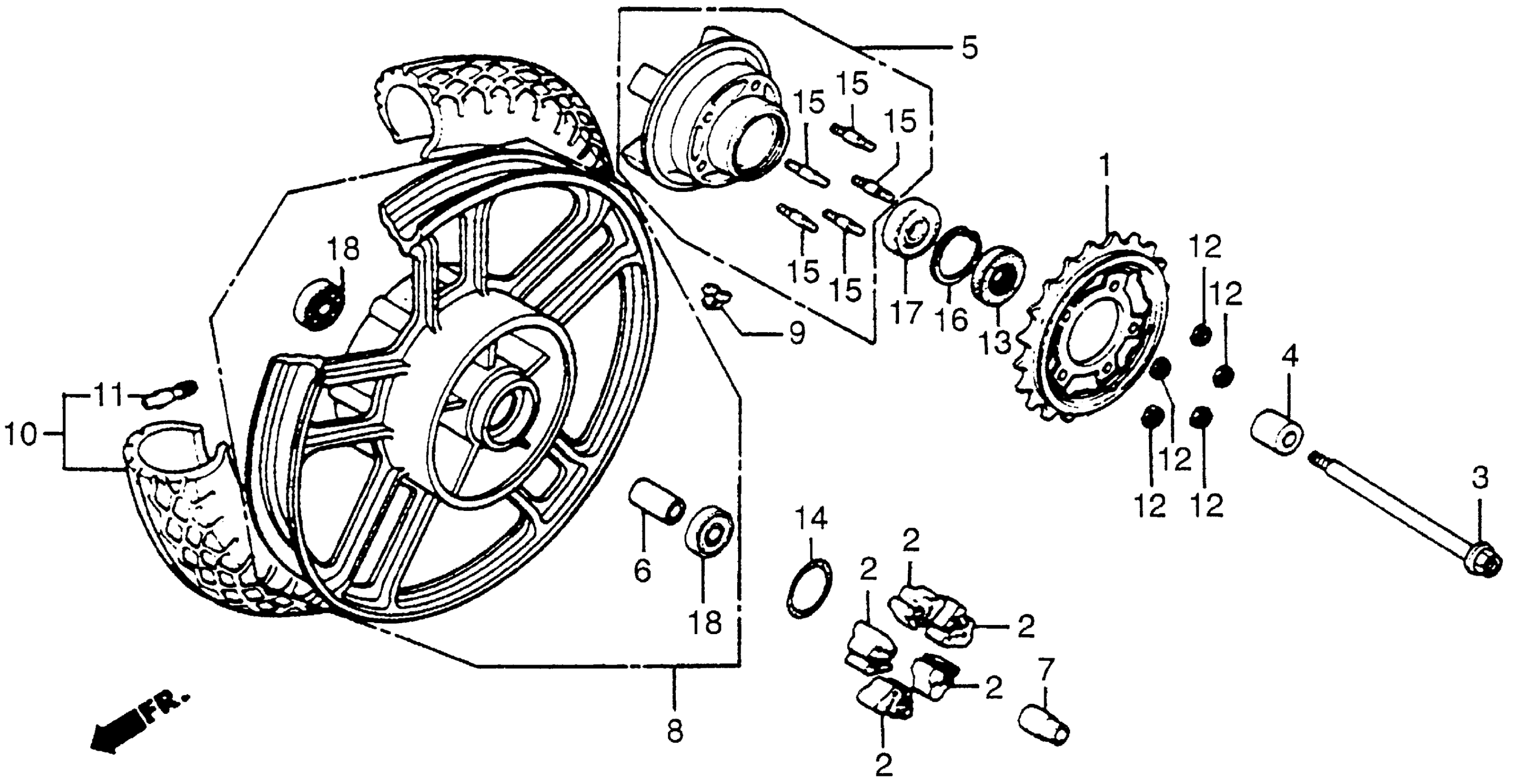

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 REAR WHEEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-MW3-671

$50.34

NI

SHOE KIT, BRAKE This part replaces 06430-415-000.

06430-MW3-671

$50.34

NI

SHOE KIT, BRAKE This part replaces 431A2-415-000.

06430-MW3-671

$50.34

1

SPROCKET, FINAL DRIVEN (44T) This part replaces 41200-MJ8-000.

41200-MN4-000

Unavailable

1

SPROCKET, FINAL DRIVEN (44T)

41200-MN4-000

Unavailable

2

DAMPER, RR. WHEEL

41241-MA6-000

$17.42

3

AXLE, RR. WHEEL This part replaces 42301-MJ8-000.

42301-MR3-920

Unavailable

3

AXLE, RR. WHEEL

42301-MR3-920

Unavailable

4

COLLAR, RR. WHEEL SIDE (SEE KIT P/N--END OF BLOCK)

42311-MJ8-000

Unavailable

5

FLANGE ASSY., FINAL DRIVEN

42610-KE7-000

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-KAZ-000

Unavailable

6

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MC4-000.

42620-KAZ-000

Unavailable

6

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MK5-680.

42620-KAZ-000

Unavailable

7

COLLAR B, RR. AXLE DISTANCE

42625-MA6-000

Unavailable

8

WHEEL SET, RR.

42650-MJ8-305

Unavailable

9

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

9

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

9

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

9

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

10

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME2-671.

42710-ME2-672

Unavailable

10

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

11

VALVE, RIM (BS)

42753-425-003

$11.00

11

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

12

NUT, HEX. (10MM)

90308-357-000

$4.85

13

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

13

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

13

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

14

O-RING (61X2)

91302-MA6-003

$5.17

15

BOLT, STUD (10X45)

92716-10045-0E

$2.75

16

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

16

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

16

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

17

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

18

BEARING, RADIAL BALL (6303UU)

96150-63030-10

$27.83
