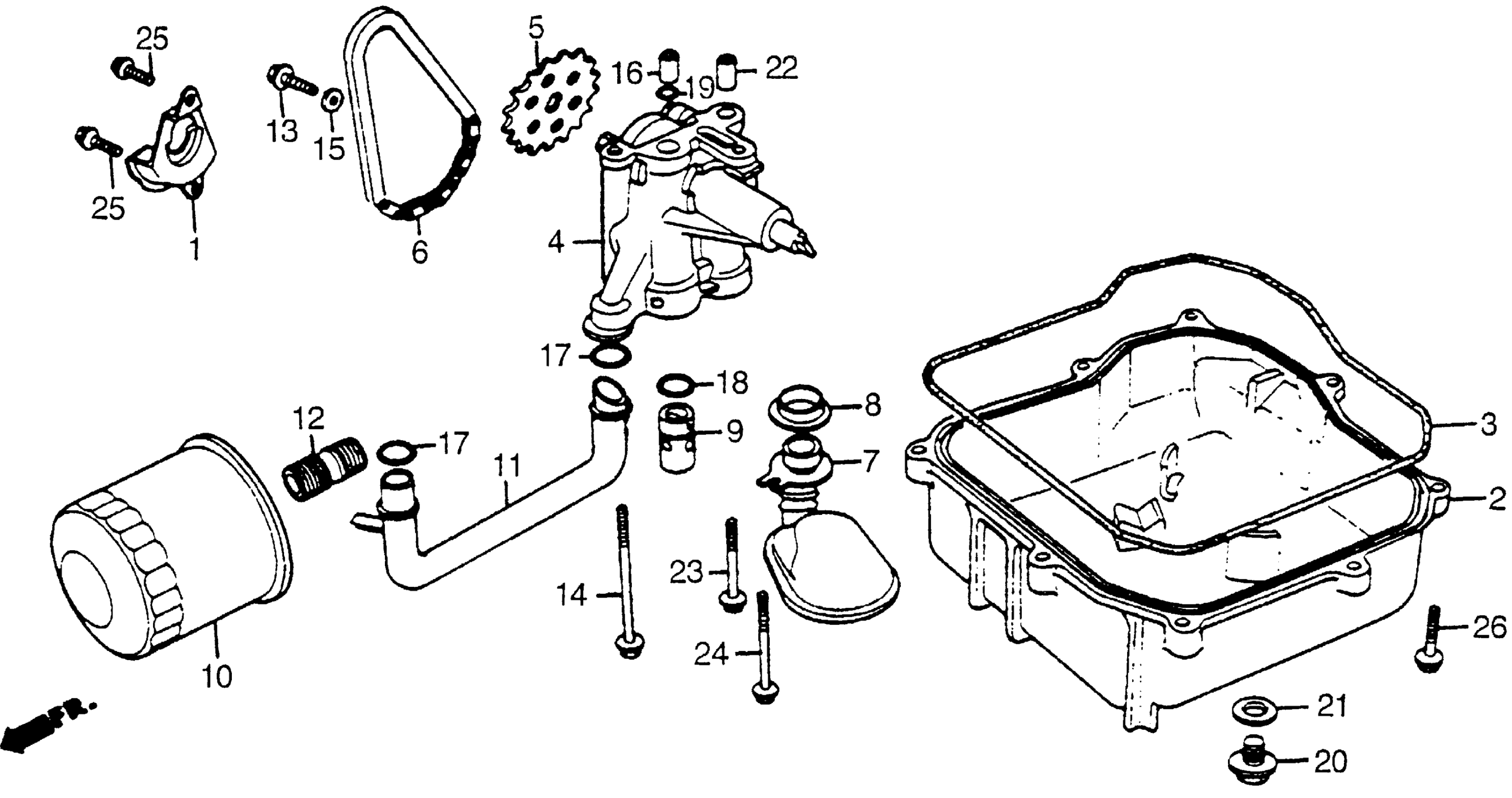

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 OIL FILTER Diagram

#

Description
Price

1

COVER, OIL PUMP CHAIN

11141-KE7-000

Unavailable

2

PAN, OIL (NOT AVAILABLE)

11210-KE7-020

Unavailable

3

GASKET, OIL PAN

11315-KE7-000

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MJ8-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (21T) | Use up to Engine SN 2106913 This part replaces 15134-KE8-000.

15134-KE8-010

$35.39

5

SPROCKET, OIL PUMP DRIVEN (21T)

15134-KE8-010

$35.39

6

CHAIN, OIL PUMP

15140-415-003

$51.99

7

STRAINER, OIL

15153-KE7-000

Unavailable

8

GASKET, OIL STRAINER

15154-KE7-000

Unavailable

9

VALVE ASSY., RELIEF

15220-MB0-010

$44.08

10

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

10

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

10

FILTER, OIL

15410-MJ0-405

$13.44

11

PIPE, OIL

15511-KE7-000

Unavailable

12

BOSS, OIL FILTER

90019-MB0-000

$8.61

13

BOLT, HEX. (6X16) This part replaces 90021-KE8-000.

90021-KE8-010

$2.28

13

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

14

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

15

WASHER (6X2.3)

90488-MB0-000

$4.37

16

PIN, KNOCK (8X14)

90701-MB0-000

Unavailable

17

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

18

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

18

O-RING (14.8X2.2)

91313-MG7-004

$3.67

19

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

19

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

19

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

23

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

24

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

24

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

25

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

26

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
