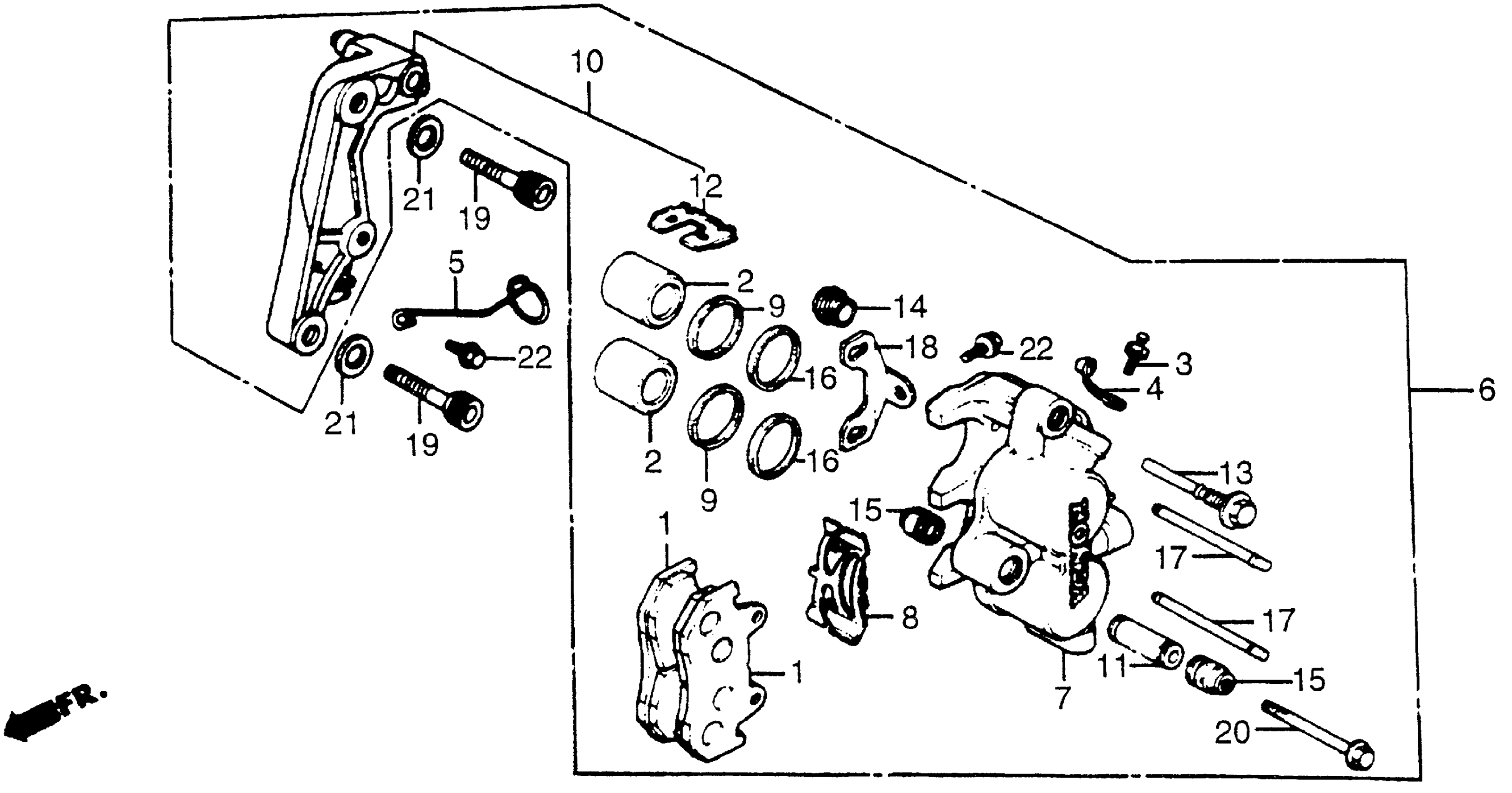

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET This part replaces 43105-MC7-007.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

2

PISTON

43107-MA7-006

$45.55

3

SCREW, BLEEDER

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

6

CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-MJ8-771.

45100-MJ8-773

Unavailable

6

CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-MJ8-772.

45100-MJ8-773

Unavailable

6

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MJ8-773

Unavailable

7

CALIPER, L.

45101-MB9-781

Unavailable

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-MA7-006

$5.31

10

BRACKET, L. FR. (NOT AVAILABLE)

45110-MA5-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

PIN, BOLT

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

SEAL, PISTON

45209-MA7-006

$6.61

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MJ0-006

Unavailable

19

BOLT, SOCKET (10X40) (NOT AVAILABLE)

90164-460-840

Unavailable

20

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

21

WASHER, PLAIN (10MM)

94102-10000

$1.49

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

22

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
