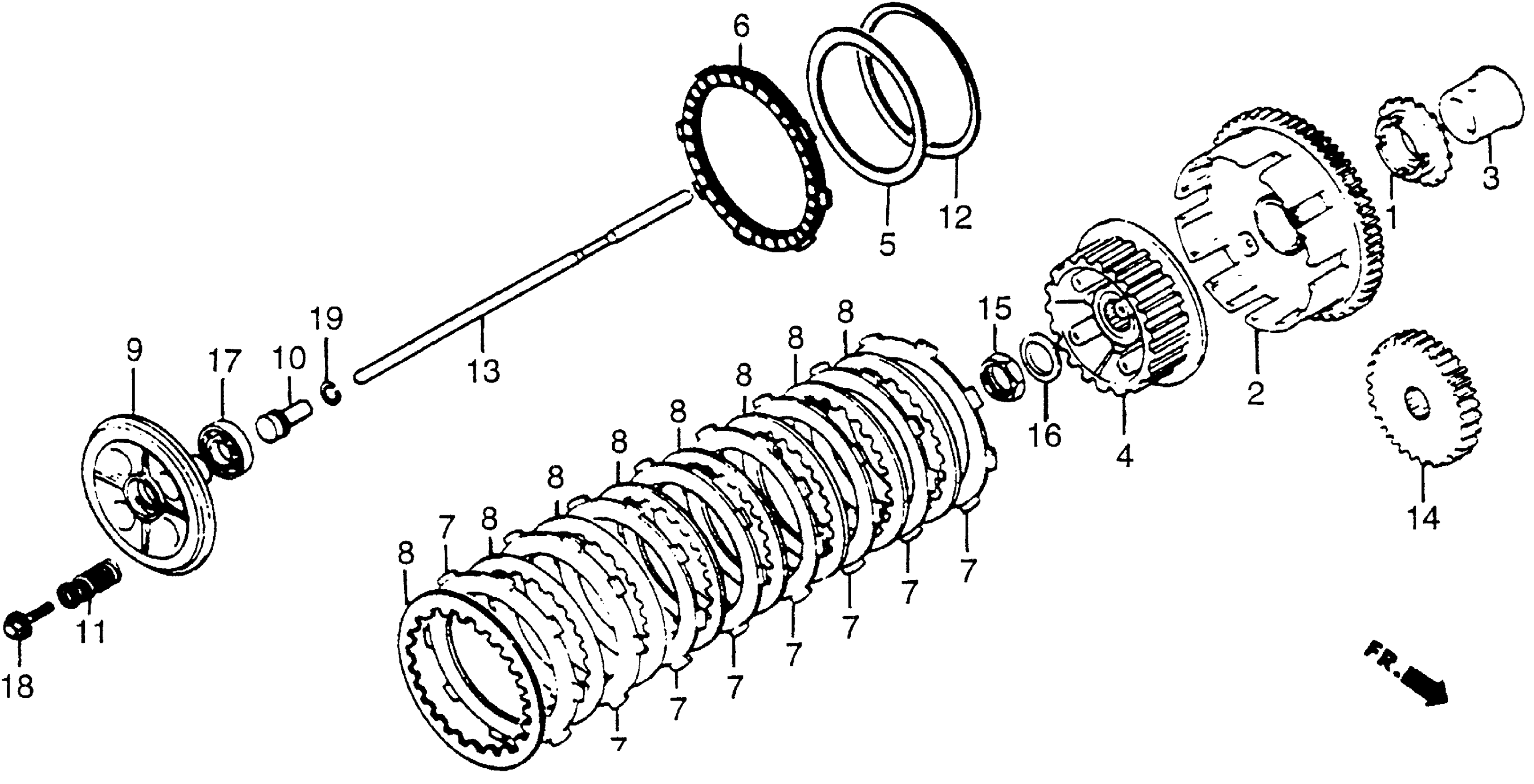

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 CLUTCH Diagram

#

Description
Price

1

SPROCKET,OIL PUMP This part replaces 15131-KE8-000.

15131-KCR-900

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MJ8-000.

22100-MJ8-020

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MJ8-010.

22100-MJ8-020

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MJ8-020

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MJ8-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2103476 This part replaces 22120-MJ8-000.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2103476 This part replaces 22120-MJ8-010.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2107642 This part replaces 22120-MJ8-010.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH This part replaces 22120-MJ8-020.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2103476 This part replaces 22120-MJ8-020.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2107642 This part replaces 22120-MJ8-020.

22120-ML0-000

Unavailable

4

CENTER, CLUTCH

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2103476

22120-ML0-000

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN 2107642

22120-ML0-000

Unavailable

5

SEAT, JUDDER SPRING This part replaces 22125-MJ8-000.

22125-MJ8-010

Unavailable

5

SEAT, JUDDER SPRING

22125-MJ8-010

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-KY1-000.

22201-KAZ-000

$26.51

6

DISK, CLUTCH FRICTION This part replaces 22201-MJ8-000.

22201-KAZ-000

$26.51

7

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

7

DISK, CLUTCH FRICTION

22201-166-000

$17.44

8

PLATE, CLUTCH

22321-KE7-000

$14.84

9

PLATE, CLUTCH PRESSURE This part replaces 22350-KE8-000.

22350-ML0-780

Unavailable

9

PLATE, CLUTCH PRESSURE

22350-ML0-780

Unavailable

10

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

11

SPRING, CLUTCH

22401-KE7-000

$4.06

12

SPRING, JUDDER This part replaces 22402-MJ8-000.

22402-MJ8-010

Unavailable

12

SPRING, JUDDER

22402-MJ8-010

Unavailable

13

ROD, CLUTCH LIFTER

22850-MJ8-000

Unavailable

14

GEAR, PRIMARY DRIVE (35T)

23103-MJ8-000

Unavailable

15

NUT, LOCK (20MM)

90241-MJ8-000

Unavailable

16

WASHER, LOCK

90432-121-000

$4.21

17

BEARING, RADIAL BALL

91007-KM7-702

Unavailable

17

BEARING, RADIAL BALL This part replaces 91008-KE8-003.

91007-KM7-702

Unavailable

18

BOLT-WASHER (6X16)

93404-06016-08

$1.55

18

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

19

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
