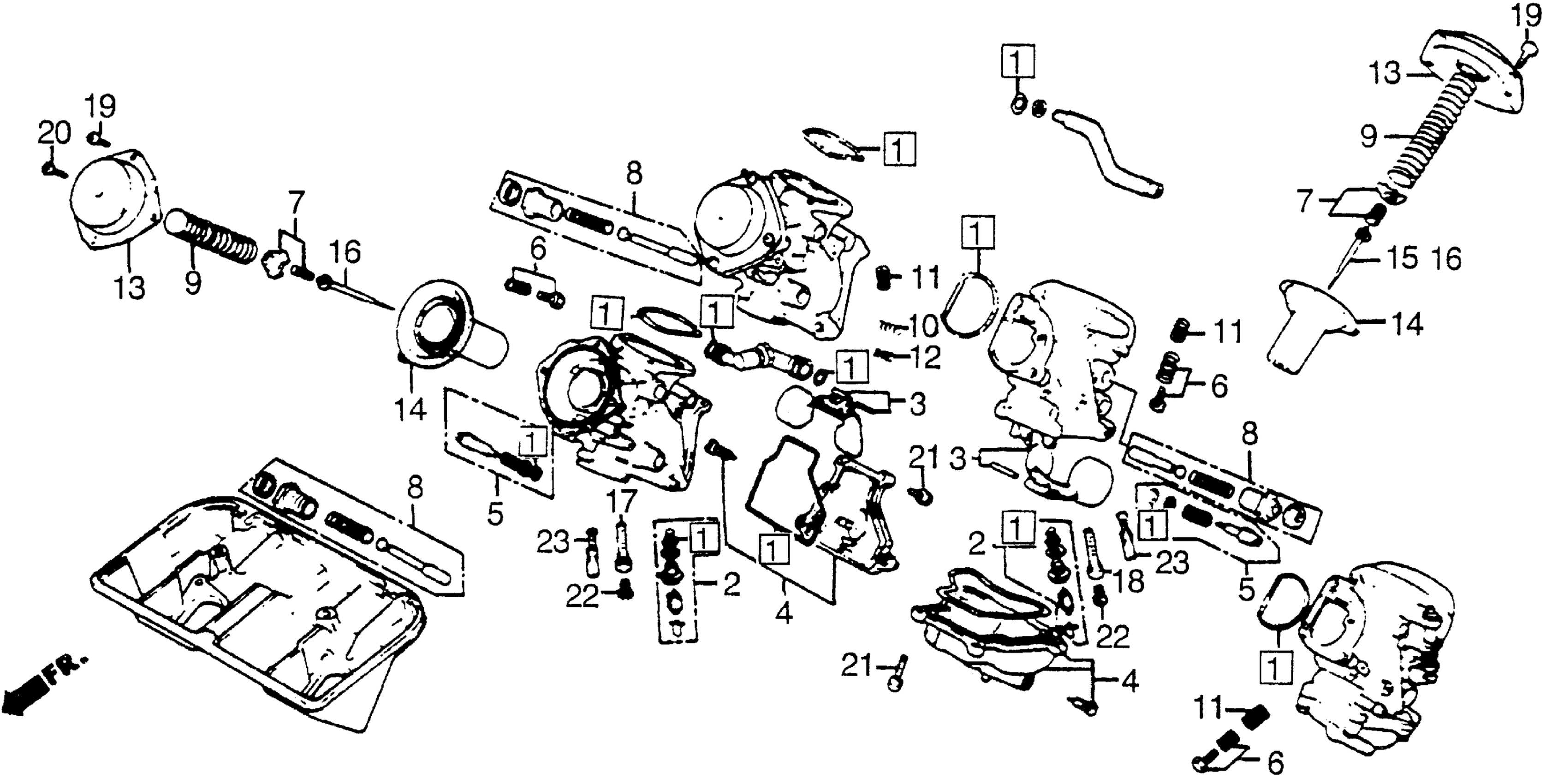

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 CARBURETOR COMPONENTS PARTS Diagram

#

Description
Price

1

GASKET SET

16010-KE7-305

$57.48

1

GASKET SET This part replaces 16010-MJ8-004.

16010-KE7-305

$57.48

1

GASKET SET This part replaces 16010-MJ8-771.

16010-KE7-305

$57.48

2

VALVE SET, FLOAT

16011-MB1-671

$76.50

3

FLOAT SET

16013-KE8-004

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-KE8-004.

16015-KE8-014

Unavailable

4

CHAMBER SET, FLOAT

16015-KE8-014

Unavailable

5

SCREW SET A (NOT AVAILABLE) This part replaces 16016-MJ8-004.

16016-KJ9-671

Unavailable

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-ME5-671

$29.52

8

VALVE SET, STARTER

16046-MA6-003

$78.81

9

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-KE8-004

Unavailable

10

SPRING (NOT AVAILABLE)

16051-KE7-003

Unavailable

11

SPRING

16052-MB0-671

$6.23

11

SPRING

16052-KG4-003

$5.81

12

SPRING

16053-MB0-671

$10.30

13

TOP This part replaces 16107-KE8-003.

16108-MJ1-671

$40.50

13

TOP This part replaces 16107-KE8-004.

16108-MJ1-671

$40.50

13

TOP This part replaces 16107-MB0-671.

16108-MJ1-671

$40.50

13

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$40.50

13

TOP

16108-MJ1-671

$40.50

14

PISTON, VACUUM

16111-MJ8-771

Unavailable

15

NEEDLE, JET (F) (NOT AVAILABLE)

16131-MF2-004

Unavailable

16

NEEDLE, FR. JET (NOT AVAILABLE)

16131-MJ8-004

Unavailable

17

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-KE7-003

Unavailable

18

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-MJ8-004

Unavailable

19

SCREW, PAN (4X10)

93500-04010-0H

$1.49

19

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

20

SCREW, PAN (4X12)

93500-04012-0H

$1.49

20

SCREW, PAN (4X12) This part replaces 93500-04012-1H.

93500-04012-0H

$1.49

21

SCREW-WASHER (4X16)

93892-04016-08

$1.49

21

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

22

JET, MAIN (#105)

99101-GHB-1050

$6.40

22

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

23

JET, SLOW (#38) This part replaces 99103-437-0380.

99103-MV9-0380

$11.73
