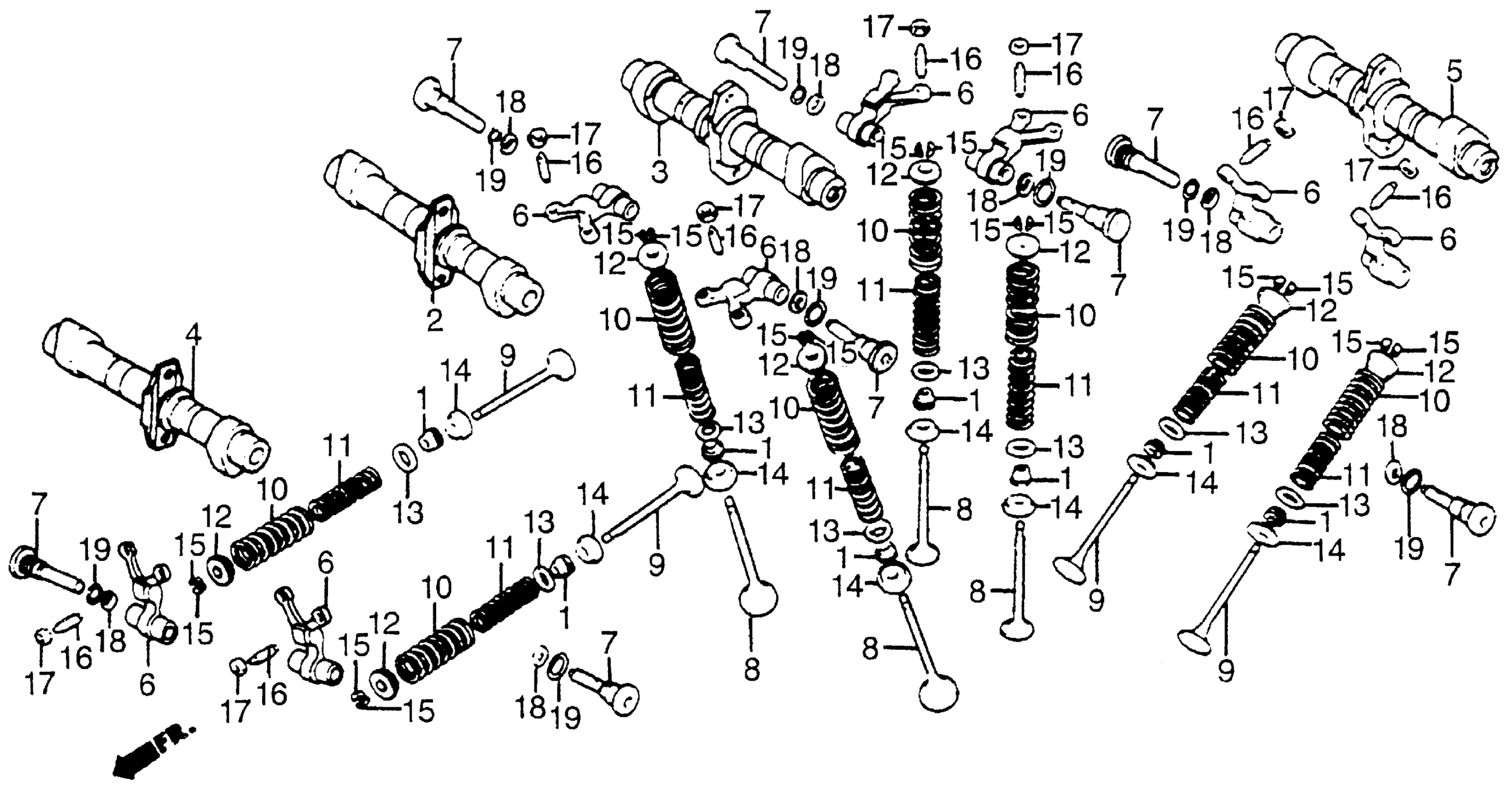

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KE8-005

$13.05

2

CAMSHAFT, FR. IN. | Use up to Engine SN 2106737

14110-MJ8-305

Unavailable

2

CAMSHAFT, FR. IN. (NOT AVAILABLE) | Use from Engine SN 2106738

14110-MJ8-010

Unavailable

3

CAMSHAFT, RR. IN. | Use up to Engine SN 2106937

14120-MJ8-305

Unavailable

3

CAMSHAFT, RR. IN. | Use from Engine SN 2106938

14120-MJ8-010

Unavailable

4

CAMSHAFT, FR. EX. | Use up to Engine SN 2106937

14130-MJ8-305

Unavailable

4

CAMSHAFT, FR. EX. | Use from Engine SN 2106938

14130-MJ8-010

Unavailable

5

CAMSHAFT, RR. EX. | Use up to Engine SN 2106937

14140-MJ8-305

Unavailable

5

CAMSHAFT, RR. EX. | Use from Engine SN 2106938

14140-MJ8-010

Unavailable

6

ARM, VALVE ROCKER

14611-MJ8-010

Unavailable

7

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14631-KE8-000

Unavailable

8

VALVE, IN.

14711-KE8-000

$22.02

9

VALVE, EX. This part replaces 14721-KE8-000.

14721-KM3-000

Unavailable

9

VALVE, EX.

14721-KM3-000

Unavailable

10

SPRING, VALVE (OUTER)

14751-KE8-003

Unavailable

11

SPRING, VALVE (INNER)

14761-KE8-003

Unavailable

12

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-KE7-000

Unavailable

13

SEAT, VALVE SPRING (OUTER)

14775-MA6-000

$3.67

14

SEAT, VALVE SPRING (NOT AVAILABLE) This part replaces 14777-KM3-000.

14777-KE8-000

Unavailable

15

COTTER, VALVE

14781-MA6-000

$2.92

16

SCREW, TAPPET ADJ.

90012-333-000

$2.75

17

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

18

WASHER, WAVE (12MM)

90402-428-000

$2.20

19

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44
