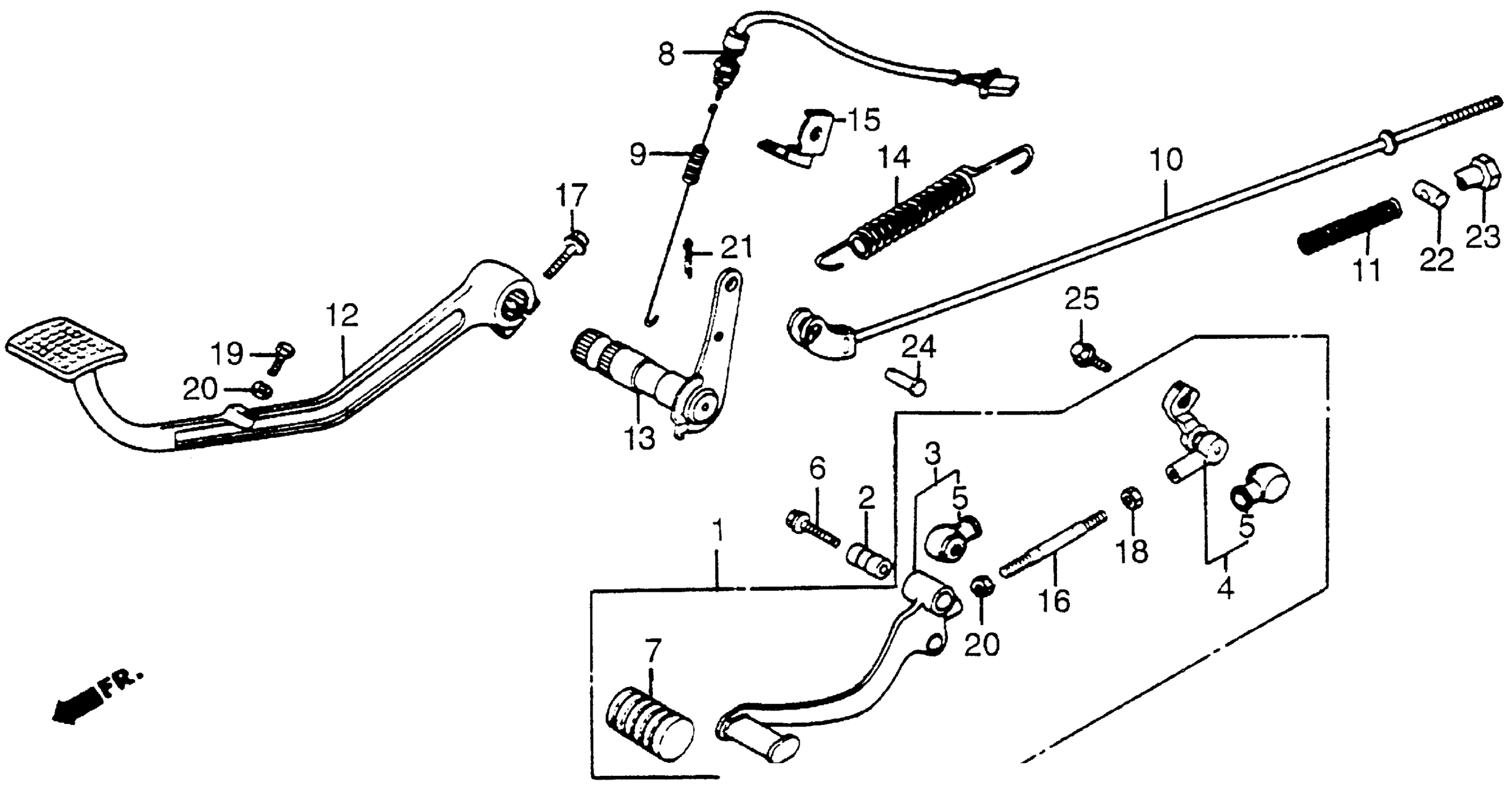

Honda VF500CA (85) V30 MAGNA, JPN, VIN# JH2PC130-FM100001 TO JH2PC130-FM107580 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-MJ8-000

Unavailable

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MT6-000

Unavailable

PEDAL, GEARSHIFT (NOT AVAILABLE)

24720-MJ8-000

Unavailable

ARM, CHANGE

24721-MJ8-000

Unavailable

COVER, DUST

24724-422-000

$6.68

BOLT, GEARSHIFT PEDAL PIVOT

24725-MB1-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH, RR. STOP This part replaces 35350-MJ8-000.

35350-MJ8-405

Unavailable

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-MJ8-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-MJ8-000

Unavailable

SPRING, BRAKE ROD

43472-460-840

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MJ8-000

Unavailable

ARM, MIDDLE

46513-MJ8-000

Unavailable

SPRING, RR. BRAKE

46514-MJ8-000

Unavailable

STAY, STOP SWITCH

50301-MJ8-000

Unavailable

BOLT, TIE ROD

90065-MJ1-000

Unavailable

BOLT, TIE ROD This part replaces 90065-MJ8-000.

90065-MJ1-000

Unavailable

BOLT, SPECIAL FLANGE (8X30) | Use up to Frame SN FM105840

90179-422-000

Unavailable

BOLT, SPECIAL FLANGE (8X30) | Use from Frame SN FM105841

90106-MB3-000

$4.63

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0B.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020-02.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20) This part replaces 92018-06020-02.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20)

92101-06020-0B

Unavailable

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
