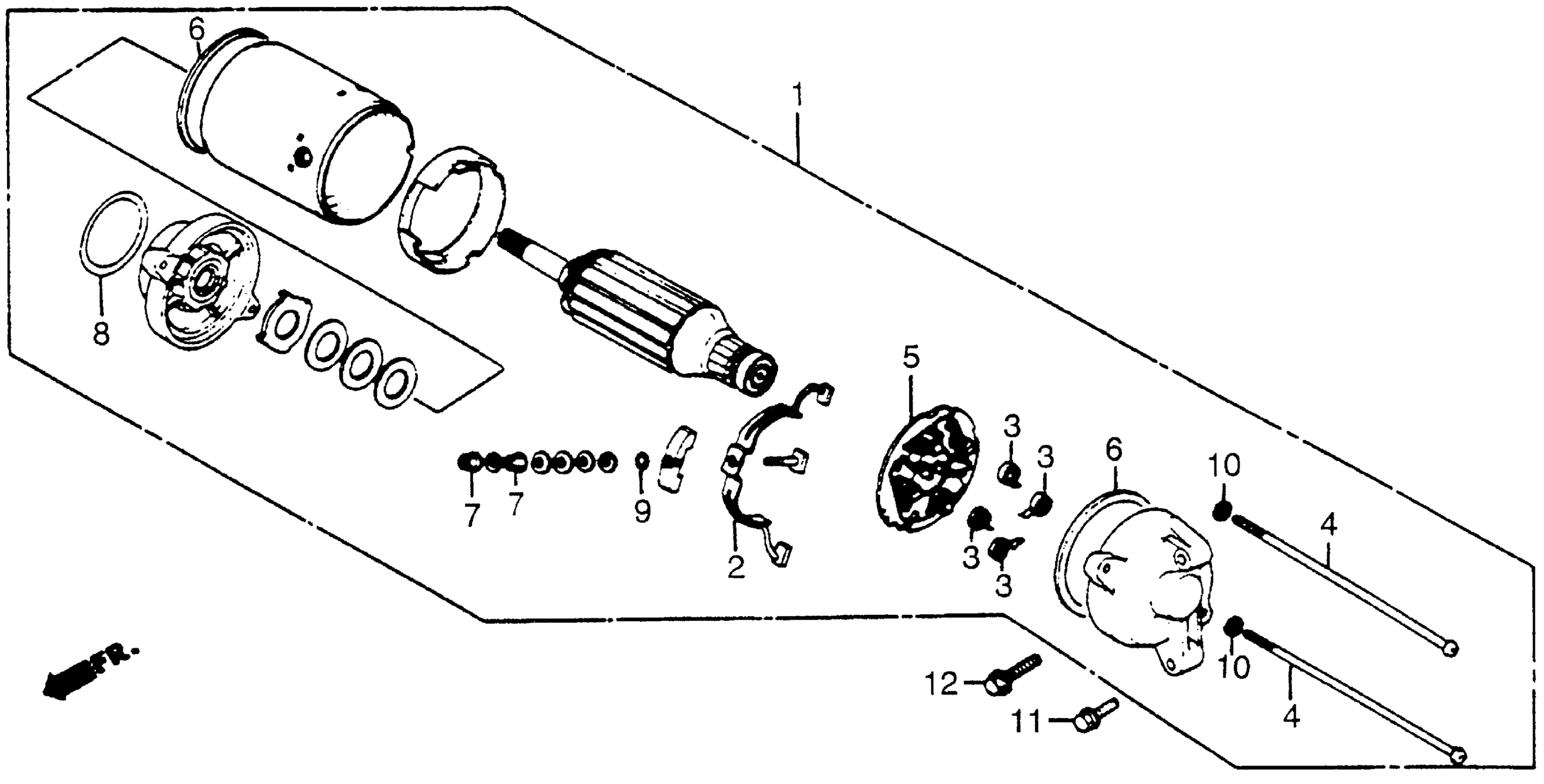

Honda VF500CA (84) V30 MAGNA, JPN, VIN# JH2PC130-EM000041 TO JH2PC130-EM010105 STARTER MOTOR Diagram

MOTOR ASSY., STARTER This part replaces 31200-KE8-018.

31200-KM3-405

Unavailable

MOTOR ASSY., STARTER

31200-KM3-405

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$28.39

SPRING, CARBON BRUSH

31204-MA6-000

$5.22

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

RING, SEAL

31207-179-711

$3.93

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
