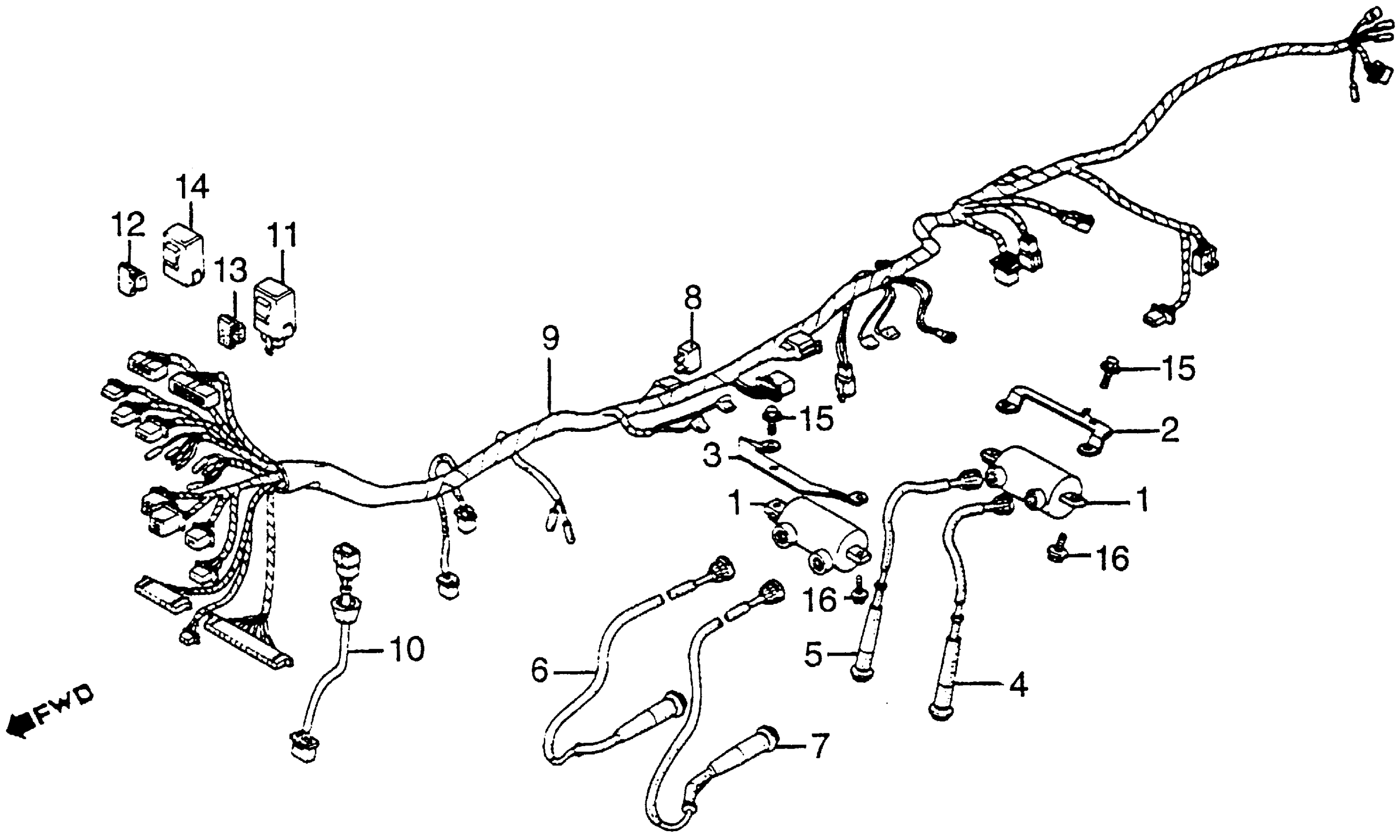

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 WIRE HARNESS + IGNITION COIL Diagram

COIL, IGNITION This part replaces 30510-MB0-702.

30510-MB0-703

Unavailable

COIL, IGNITION (NOT AVAILABLE)

30510-MB0-703

Unavailable

BRACKET B, IGNITION COIL (NOT AVAILABLE)

30515-MB3-000

Unavailable

BRACKET, FR. IGNITION COIL (NOT AVAILABLE)

30516-MB3-000

Unavailable

CAP ASSY. 1, SPARK PLUG (NOT AVAILABLE)

30751-MB2-000

Unavailable

CAP ASSY. 2, SPARK PLUG (NOT AVAILABLE)

30752-MB2-000

Unavailable

CAP ASSY. 2, SPARK PLUG (NOT AVAILABLE) This part replaces 30752-MB3-000.

30752-MB2-000

Unavailable

CAP ASSY. 3, SPARK PLUG (NOT AVAILABLE)

30753-MB2-000

Unavailable

CAP ASSY. 4, SPARK PLUG (NOT AVAILABLE)

30754-MB3-000

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-MB3-000

Unavailable

SUB-CABLE, CANCEL (NOT AVAILABLE)

32102-MB3-670

Unavailable

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-771

Unavailable

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-MF5-771.

38306-MF5-770

$5.77

RELAY, POSITION

38601-MB3-671

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
