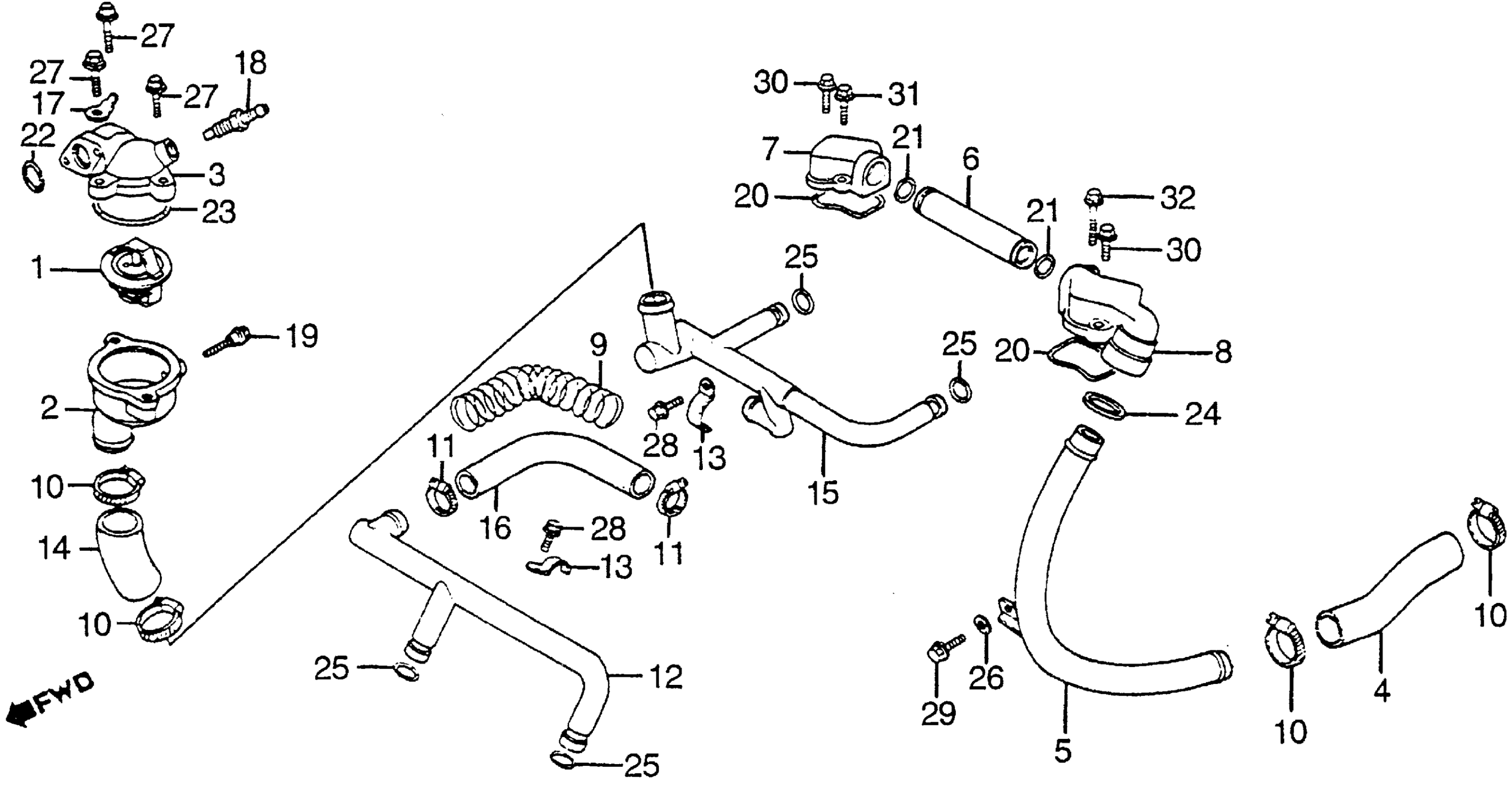

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$47.39

2

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MJ8-000

Unavailable

3

COVER, THERMOSTAT

19315-MB3-000

Unavailable

4

HOSE, CONNECTING (NOT AVAILABLE)

19502-MB4-000

Unavailable

5

PIPE, OUTLET CONNECTING (NOT AVAILABLE)

19504-MB4-000

Unavailable

6

PIPE, CONNECTING (NOT AVAILABLE)

19507-MB4-000

Unavailable

7

CAP A, CONNECTING

19508-MB0-000

Unavailable

8

CAP B, CONNECTING PIPE

19509-MB0-000

Unavailable

9

WIRE B, GUARD (NOT AVAILABLE)

19512-MB3-003

Unavailable

10

CLAMP, WATER HOSE

19503-MB1-870

$11.28

10

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$11.28

11

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

12

PIPE A, WATER (NOT AVAILABLE)

19520-MB0-000

Unavailable

13

CLAMP A, WATER PIPE (NOT AVAILABLE)

19524-MB0-000

Unavailable

14

HOSE, WATER (NOT AVAILABLE)

19526-MB3-000

Unavailable

15

PIPE B, WATER (NOT AVAILABLE)

19530-MB0-000

Unavailable

16

HOSE B, WATER (NOT AVAILABLE)

19536-MB0-000

Unavailable

17

CONNECTOR, GROUND

32152-MB3-000

$1.77

18

THERMO UNIT (DENSO)

37750-PC1-004

$73.04

19

BOLT, SPECIAL (8MM)

90042-MB6-000

Unavailable

20

GASKET, CONNECTING CAP

91301-MB0-000

$3.82

21

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.00

22

O-RING (21.9X2.3)

91301-MB6-003

$1.93

22

O-RING (21.9X2.3) This part replaces 91302-371-013.

91301-MB6-003

$1.93

22

O-RING (21.9X2.3) This part replaces 91302-371-023.

91301-MB6-003

$1.93

23

O-RING (54X2) (ARAI)

91307-MB0-003

$3.00

24

SEAL, WATER PIPE

91315-MB0-013

Unavailable

25

O-RING (13X2.5)

91335-567-000

$3.73

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.48

27

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

28

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.09

28

BOLT, FLANGE (6X14)

96001-06014-07

$1.09

29

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

29

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

30

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.68

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

31

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

31

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

32

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

32

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
