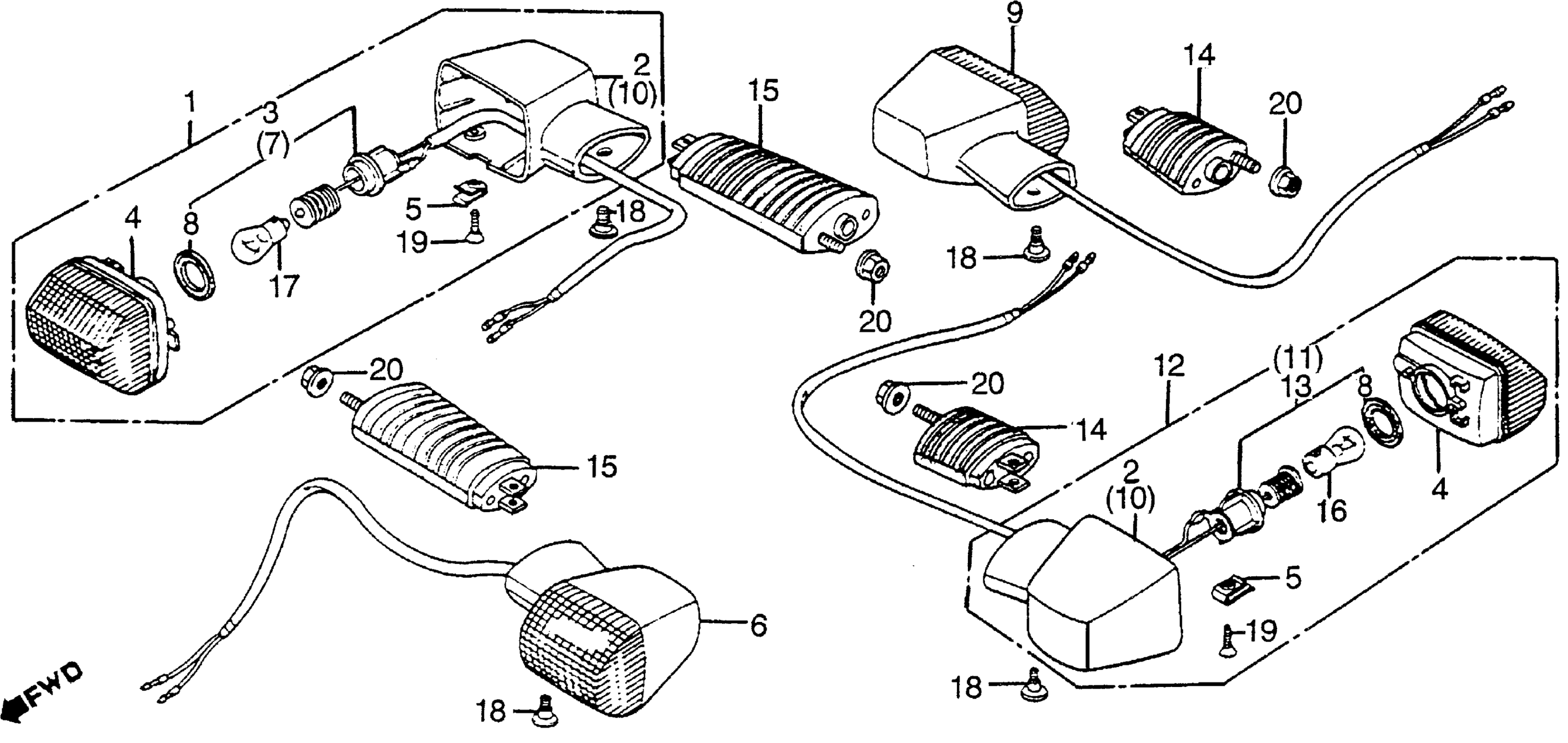

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-MB3-670.

33400-MF2-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-MF2-670.

33400-MF2-406

Unavailable

2

BASE, R. TURN SIGNAL *NH1* (BLACK)

33401-MB6-003

Unavailable

3

SOCKET, TURN SIGNAL This part replaces 33405-MB2-671.

33405-MF2-405

Unavailable

4

LENS, TURN SIGNAL

33406-MB2-671

Unavailable

5

NUT, SPECIAL

33407-MB2-003

$3.81

6

TURN SIGNAL ASSY.

33400-MN8-405

Unavailable

6

TURN SIGNAL ASSY. This part replaces 33450-MB3-670.

33400-MN8-405

Unavailable

6

TURN SIGNAL ASSY. This part replaces 33450-MF2-670.

33400-MN8-405

Unavailable

7

SOCKET, TURN SIGNAL This part replaces 33455-MB2-671.

33405-MF2-405

Unavailable

8

GASKET, SEAL

33518-MB2-003

$3.51

9

TURN SIGNAL ASSY. This part replaces 33600-MB6-671.

33600-MN8-405

Unavailable

10

BASE, L. TURN SIGNAL *NH1* (BLACK)

33601-MB6-003

Unavailable

11

SOCKET, TURN SIGNAL (NOT AVAILABLE)

33605-MB2-003

Unavailable

12

LIGHT, TURN SIGNAL This part replaces 33650-MB3-670.

33600-MB3-405

Unavailable

13

SOCKET COMP WINKE This part replaces 33655-MB3-670.

33605-MB3-405

Unavailable

14

STAY, TURN SIGNAL

33691-MB3-003

Unavailable

15

STAY, FR. TURN SIGNAL (NOT AVAILABLE)

33691-MJ0-003

$32.16

16

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

17

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

18

SCREW, SPECIAL (6X8)

90380-MB2-000

$3.38

19

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.49

19

SCREW-WASHER (4X12) This part replaces 93700-04012-1G.

93891-04012-07

$1.49

19

SCREW-WASHER (4X12)

93891-04012-07

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49
