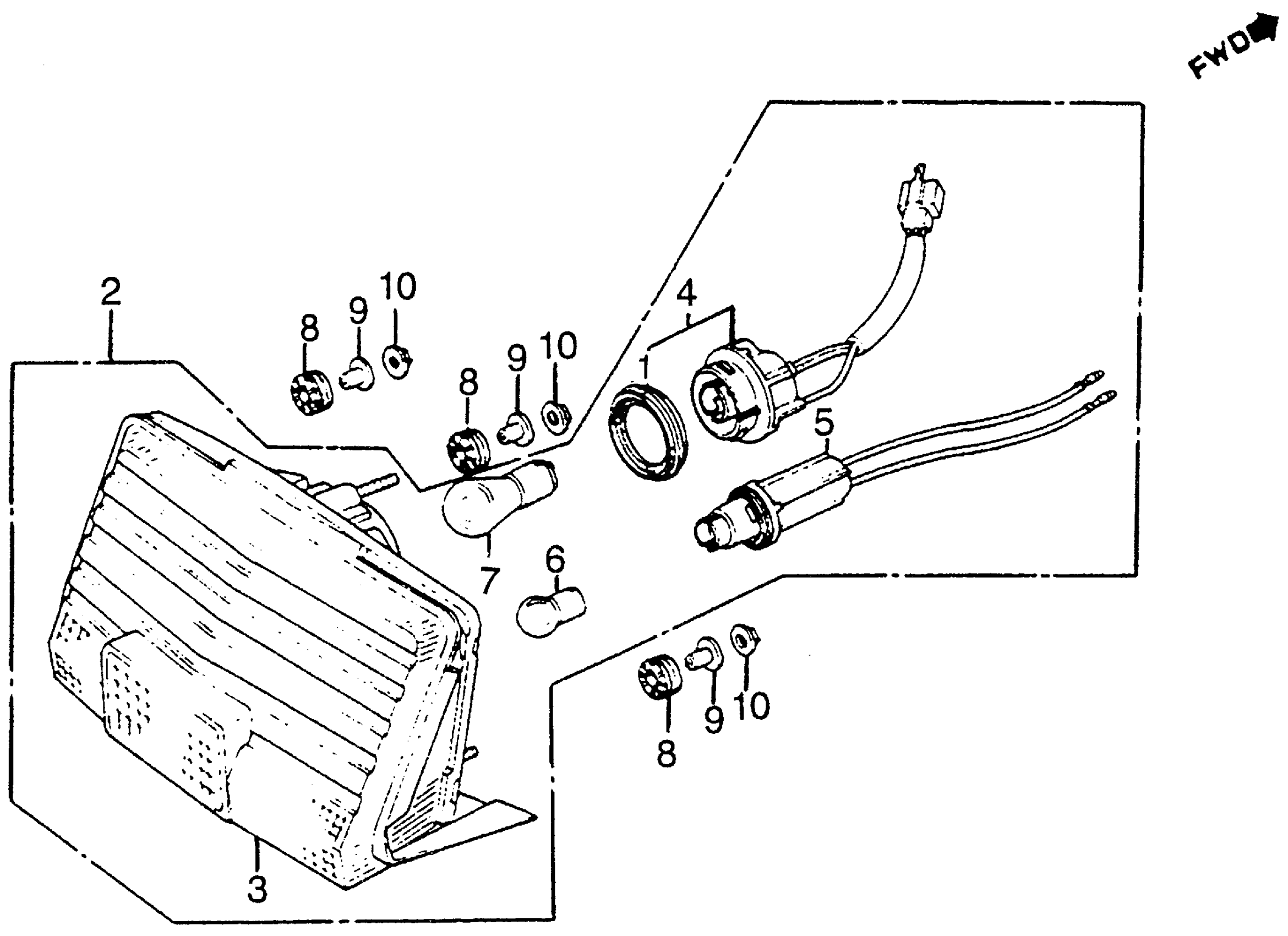

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 TAILLIGHT Diagram

#

Description

Price

1

GASKET, SEAL

33518-SA2-003

$4.38

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-MB3-672

Unavailable

3

TAILLIGHT SUB-ASSY. (NOT AVAILABLE)

33704-MB3-671

Unavailable

4

WIRE, TAILLIGHT (NOT AVAILABLE)

33705-MJ0-003

Unavailable

5

WIRE, LICENSE (NOT AVAILABLE)

33706-MJ0-003

Unavailable

6

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

6

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

6

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

6

BULB (12V8W)

34909-505-003

$2.92

6

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

7

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

8

CUSHION, TAILLIGHT

80112-MA6-000

$3.92

9

COLLAR (6.2X12)

90501-425-000

$4.69

10

NUT, FLANGE (6MM)

94050-06000

$1.49
