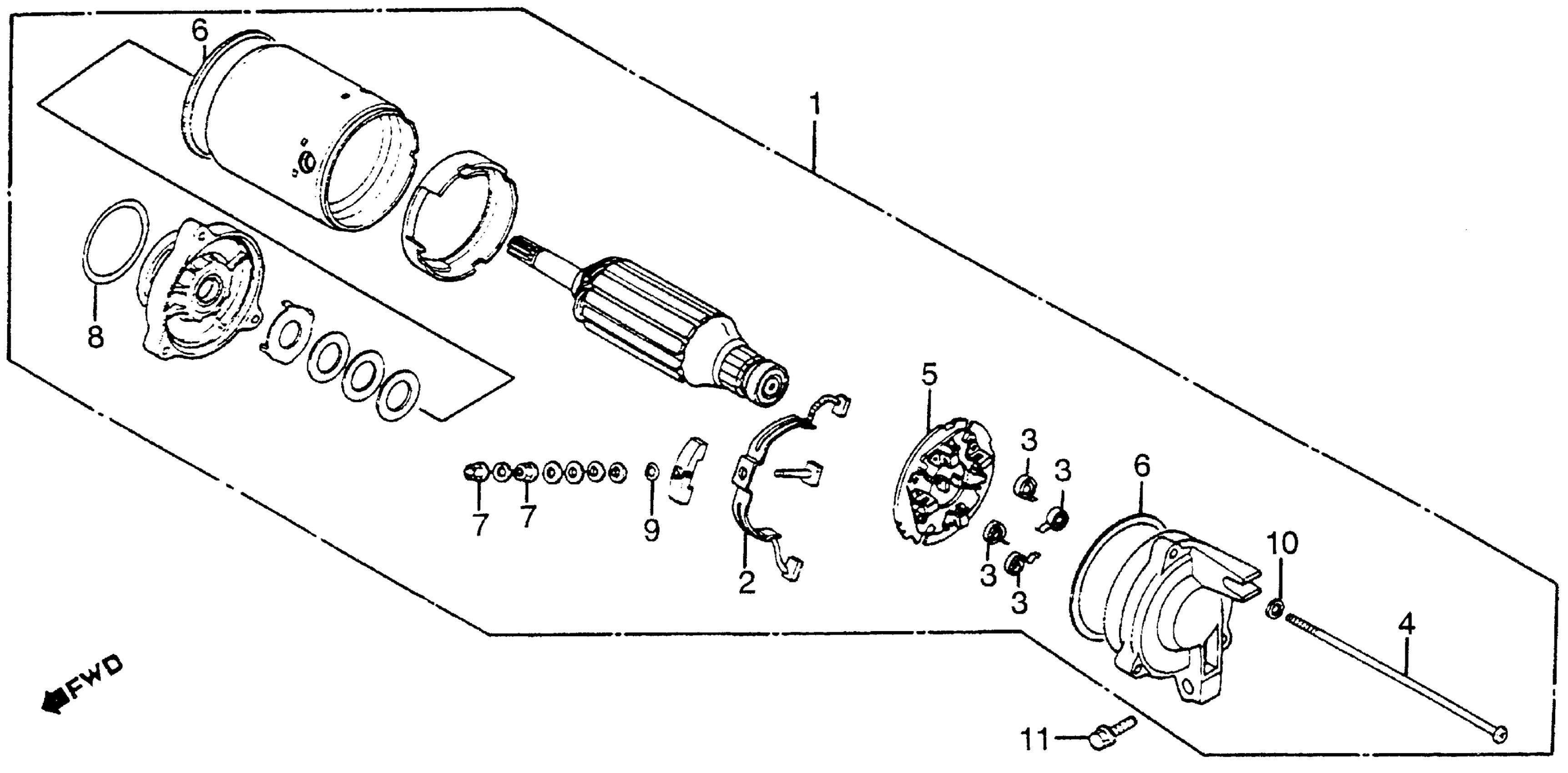

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-MB4-008.

31200-MB4-405

Unavailable

2

TERMINAL SET, BRUSH

31201-KM3-000

Unavailable

2

TERMINAL SET, BRUSH This part replaces 31201-ME9-000.

31201-KM3-000

Unavailable

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.22

4

BOLT, SETTING (NOT AVAILABLE)

31205-MB4-000

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MC8-008.

31206-MM5-008

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

6

RING, SEAL

31207-179-711

$3.93

7

NUT-WASHER (6MM)

90071-MB0-000

$1.88

8

O-RING

91309-MA6-000

$3.69

9

O-RING (4X2)

91320-MB0-000

$2.20

10

WASHER, SPRING (5MM)

94111-05000

$1.03

11

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

11

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
