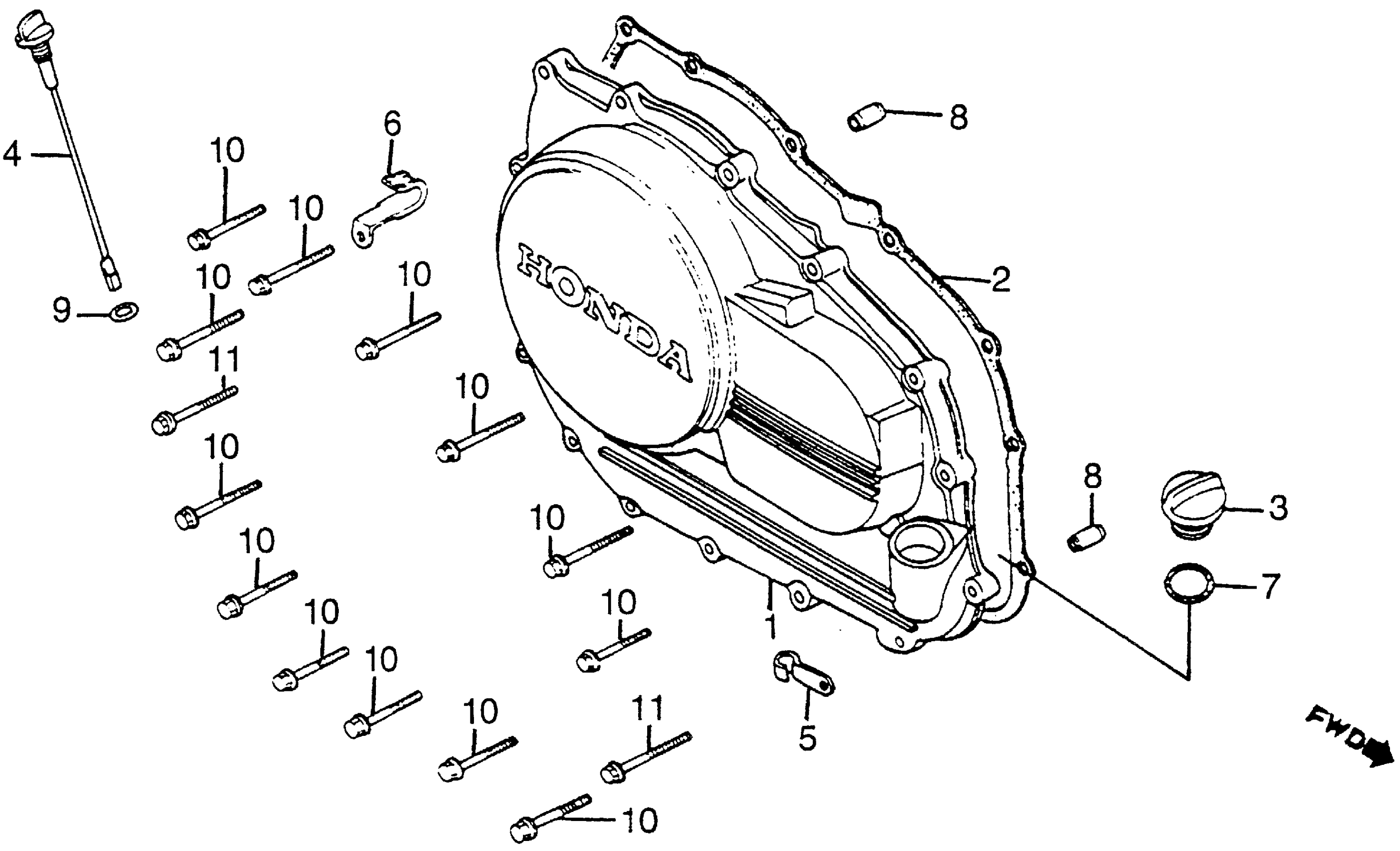

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 RIGHT CRANKCASE C0VER Diagram

#

Description
Price

1

COVER ASSY., R. CRANKCASE (NOT AVAILABLE)

11330-MB3-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-MB4-000.

11394-MB4-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-MB4-306

Unavailable

3

CAP, OIL FILLER

15611-MB0-000

$8.54

4

DIPSTICK, OIL (NOT AVAILABLE)

15650-MB3-000

Unavailable

5

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17215-393-780

Unavailable

6

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

7

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.55

7

O-RING (21.5X3.2)

91307-425-003

$2.55

8

PIN, DOWEL (8X14)

94301-08140

$2.04

9

O-RING (8.4X2.4)

91316-MJ8-003

$2.38

10

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.38

10

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

11

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

11

BOLT, FLANGE (6X35)

96001-06035-07

$1.97
