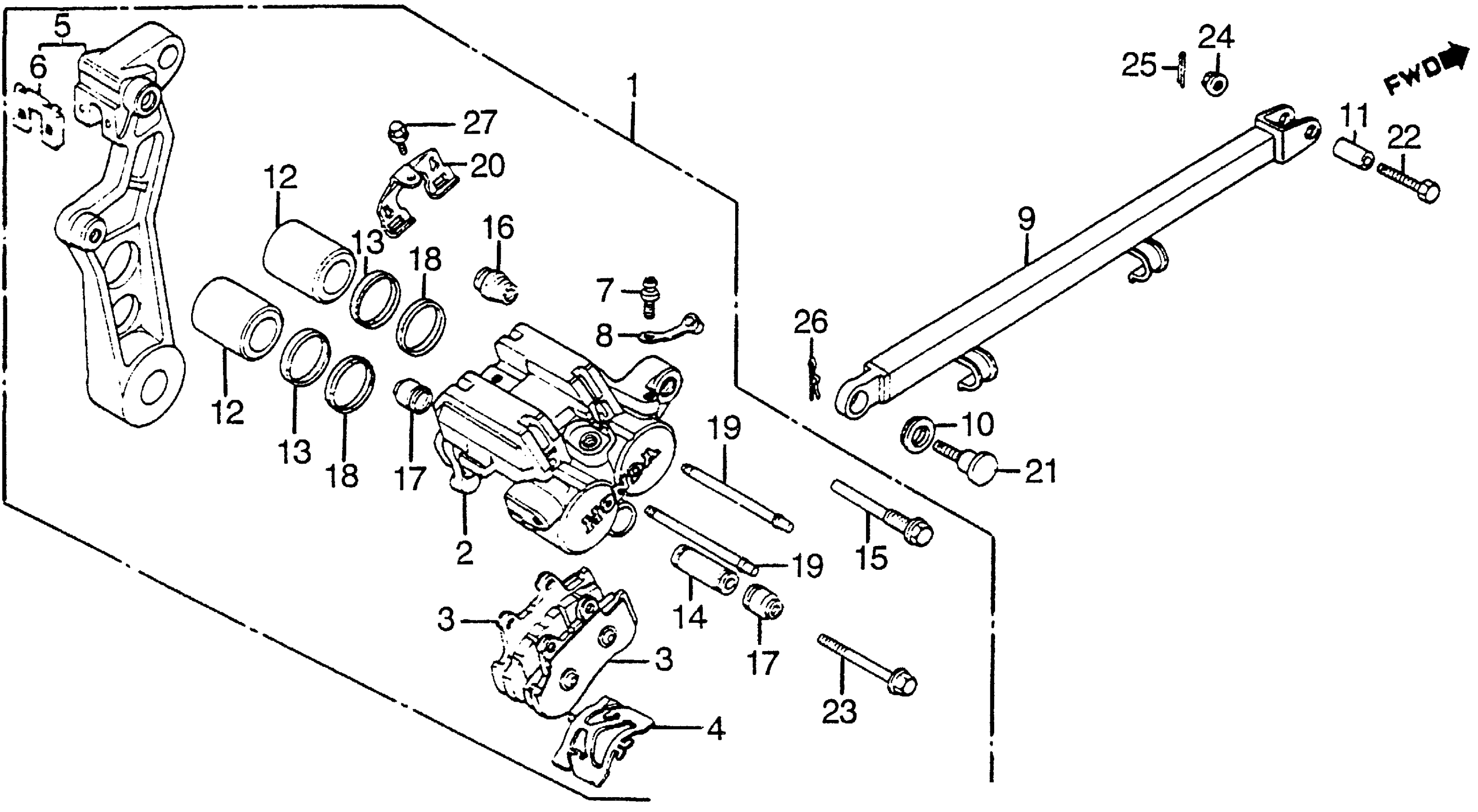

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT

431A0-MB4-306

Unavailable

NI

BRAKE PAD KIT This part replaces 431A0-MB4-307.

431A0-MB4-306

Unavailable

1

CALIPER ASSY., RR. (NOT AVAILABLE)

43100-MB3-007

Unavailable

1

CALIPER ASSY., RR. (NOT AVAILABLE)

43100-MB3-008

Unavailable

2

CALIPER, RR. (NOT AVAILABLE)

43101-MB4-006

Unavailable

3

PAD, RR. (ASK) This part replaces 43105-MB4-007.

43105-MB4-017

$21.48

3

PAD, RR. (ASK) This part replaces 43105-MB4-008.

43105-MB4-017

$21.48

3

PAD, RR. (ASK)

43105-MB4-017

$21.48

3

PAD, RR. This part replaces 43105-MB6-008.

43105-MB6-018

Unavailable

3

PAD, RR.

43105-MB6-018

Unavailable

4

SPRING, PAD

43108-MB9-781

Unavailable

5

BRACKET, RR. (NOT AVAILABLE)

43110-MB6-006

Unavailable

6

RETAINER, RR. BRACKET

43112-445-631

Unavailable

7

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

8

CAP, BLEEDER

43353-461-771

Unavailable

9

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43430-MB3-000

Unavailable

10

WASHER, TORQUE LINK

43434-MA3-640

Unavailable

11

COLLAR, LINK

43435-392-000

$5.64

12

PISTON

45107-MA3-006

$46.13

13

DUST SEAL

45109-166-006

$6.12

14

SLEEVE

45111-MA3-006

$12.28

15

BOLT, PIN

45131-MA3-006

$16.14

16

BOOT B

45133-MA3-006

$5.21

17

BOOT, PIN

45133-166-016

$3.43

18

SEAL, PISTON

45209-166-006

$8.47

19

PIN, HANGER

45215-MA2-006

Unavailable

20

PLATE

45217-MJ0-006

Unavailable

21

BOLT, TORQUE LINK (NOT AVAILABLE)

90121-MA3-640

Unavailable

22

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

23

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

23

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

24

NUT, FLANGE (8MM)

94050-08000

$0.87

25

PIN, SPLIT (2.0X15)

94201-20150

$1.04

26

PIN, LOCK (10MM)

94251-10000

$1.16

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.63

27

BOLT, FLANGE (6X10)

95701-06010-07

$1.63
