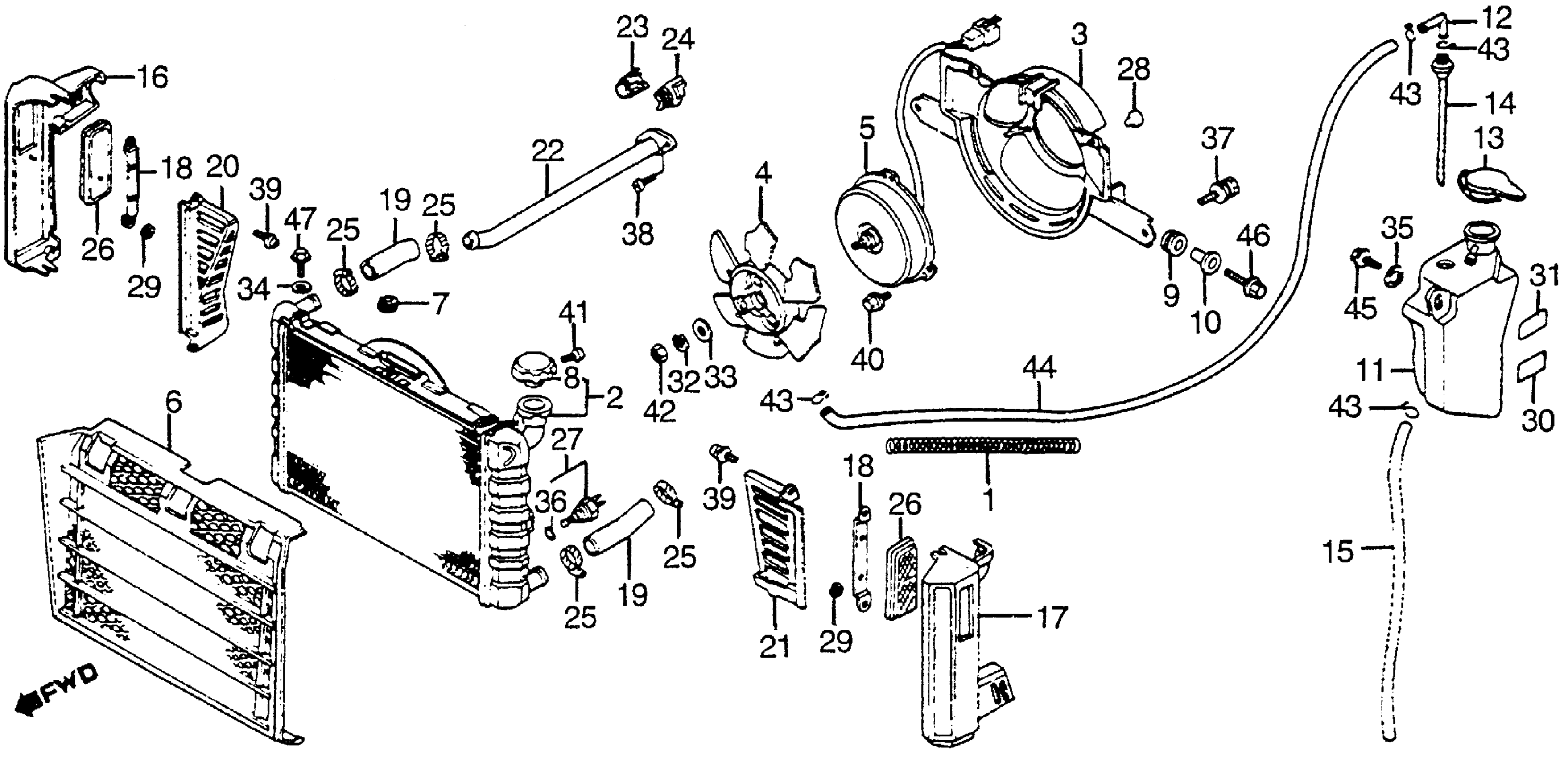

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 RADIATOR Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

2

RADIATOR (NOT AVAILABLE)

19010-MB3-003

Unavailable

3

SHROUD (NOT AVAILABLE)

19015-MB3-003

Unavailable

4

FAN, COOLING (NOT AVAILABLE)

19020-MB0-702

Unavailable

5

MOTOR, COOLING FAN This part replaces 19030-MB0-701.

19030-MB0-405

Unavailable

6

GRILLE, RADIATOR (NOT AVAILABLE)

19032-MB3-000

Unavailable

7

GROMMET, RADIATOR SETTING

19034-MB3-000

$4.05

8

CAP, RADIATOR This part replaces 19045-MB3-000.

19045-MZ3-405

$32.49

8

CAP, RADIATOR (TOYO)

19045-MZ3-405

$32.49

9

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

10

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

11

TANK, RESERVE (NOT AVAILABLE)

19101-MB3-000

Unavailable

12

JOINT, TUBE (NOT AVAILABLE)

19103-463-000

Unavailable

13

CAP, RESERVE TANK

19104-MB0-700

$12.16

14

TUBE, LEVEL This part replaces 19108-MB0-000.

19108-MB0-010

$11.50

14

TUBE, LEVEL

19108-MB0-010

$11.50

15

TUBE, OVERFLOW This part replaces 19108-MB4-000.

19109-KM3-405

Unavailable

16

COVER, R. RADIATOR (NOT AVAILABLE)

19110-MB3-000

Unavailable

17

COVER, L. RADIATOR (NOT AVAILABLE)

19111-MB3-000

Unavailable

18

PLATE, R. RADIATOR SETTING (NOT AVAILABLE)

19112-MB3-300

Unavailable

19

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19115-MB3-000

Unavailable

20

COVER, R. RR. RADIATOR (NOT AVAILABLE)

19118-MB3-000

Unavailable

21

COVER, L. RR. RADIATOR (NOT AVAILABLE)

19119-MB3-000

Unavailable

22

TUBE, WATER (NOT AVAILABLE)

19150-MB3-000

Unavailable

23

COVER A, WATER TUBE (NOT AVAILABLE)

19152-MB3-770

Unavailable

24

COVER B, WATER TUBE (NOT AVAILABLE)

19153-MB3-770

Unavailable

25

CLAMP, WATER HOSE

19503-MB1-870

$12.56

26

REFLECTOR, FR. REFLEX (NOT AVAILABLE)

33741-MB3-671

Unavailable

27

SWITCH ASSY., THERMO

37760-MB4-770

Unavailable

28

PLUG, CHAIN CASE

40514-333-000

$2.57

29

NUT, SPEED (4MM) This part replaces 77201-ME5-000.

90313-172-000

$5.85

30

LABEL, RESERVE TANK

87507-MB4-670

Unavailable

31

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

87508-MA1-770

Unavailable

32

WASHER, SPRING (5MM) (NOT AVAILABLE)

90401-679-003

$1.70

33

WASHER, PLAIN (5MM) This part replaces 90402-679-003.

94103-05800

$1.49

33

WASHER, PLAIN (5MM)

94103-05800

$1.49

34

WASHER, RR. COVER GROMMET

90439-MB0-000

$1.72

35

WASHER (6X9)

90513-323-000

$1.84

36

O-RING (13.5X1.4)

91307-PH7-660

$2.83

36

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

37

BOLT-WASHER (6X10)

93493-06010-00

$1.49

38

SCREW, PAN (5X8)

93500-05008-0G

$1.49

39

SCREW-WASHER (5X12)

93893-05012-07

$1.49

40

SCREW-WASHER (6X12)

93893-06012-07

$1.49

41

SCREW, TAPPING (3X8)

93901-22180

$1.49

42

NUT, HEX. (5MM)

94001-050800S

$1.49

43

CLIP, TUBE (C11)

95002-70000

$1.56

44

BULK HOSE, VACUUM (7X3000) (7X870)

95005-70003-30M

$23.45

45

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

46

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

46

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

47

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

47

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
