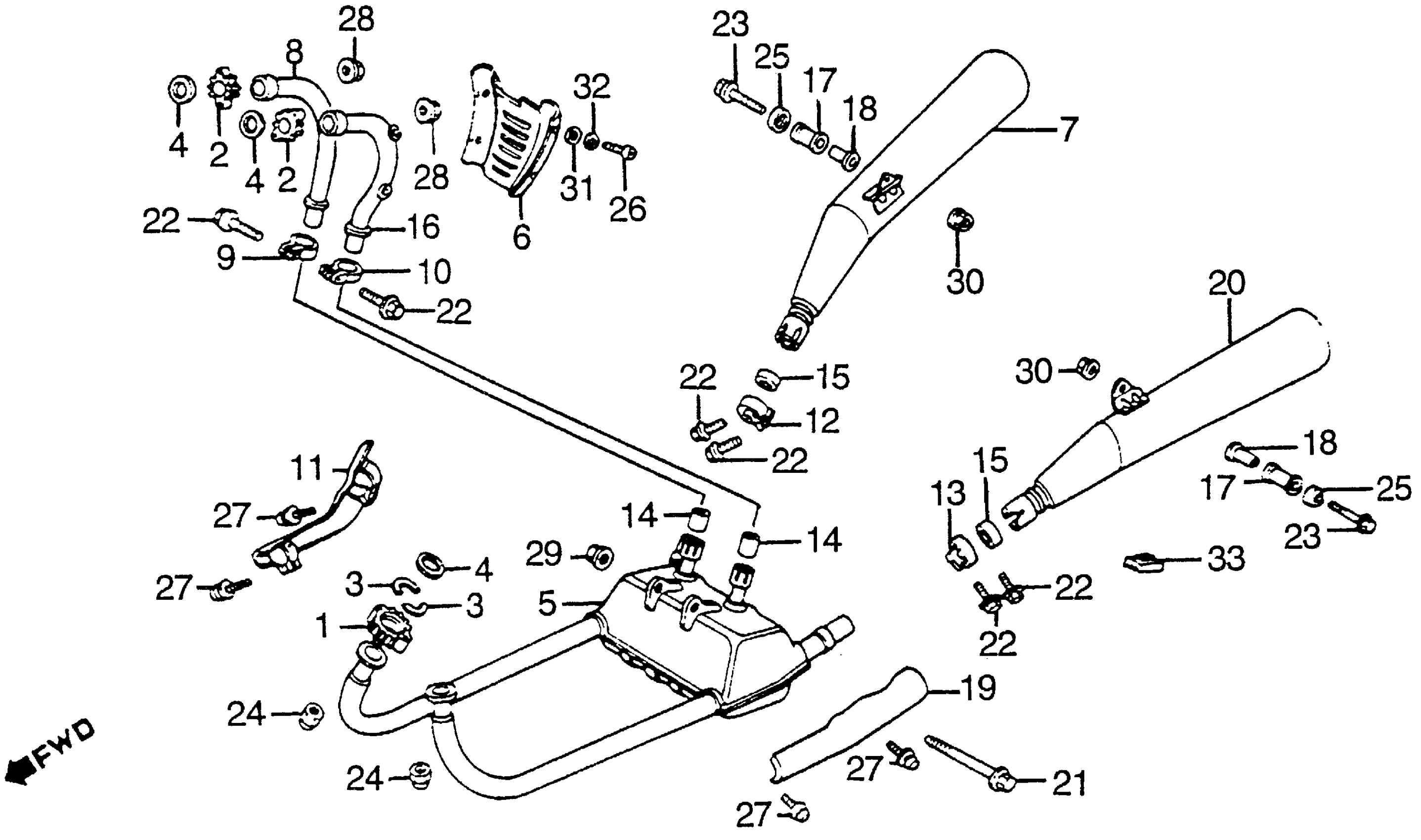

Honda VF1100SA (85) V65 SABRE, USA, VIN# 1HFSC170-FA100001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-MB3-000

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-MB4-000

$43.26

3

SPACER, EX. PIPE JOINT (NOT AVAILABLE)

18232-MB3-000

Unavailable

4

GASKET, EX. PIPE

18291-MN4-920

$4.94

4

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$4.94

5

MUFFLER, EX. (NOT AVAILABLE)

18300-MB3-003

Unavailable

6

PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)

18316-MB3-003

Unavailable

7

MUFFLER, R. (NOT AVAILABLE)

18330-MB3-003

Unavailable

8

PIPE, R. RR. EX. (NOT AVAILABLE)

18370-MB3-003

Unavailable

9

BAND, R. EX. PIPE

18373-MB6-003

Unavailable

10

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

11

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18375-MB3-003

Unavailable

12

BAND, R. MUFFLER

18376-MB4-003

$37.00

13

BAND, L. MUFFLER

18377-MB4-003

$36.96

14

GASKET, EX. This part replaces 18391-MJ4-000.

18392-ML0-000

Unavailable

14

GASKET, EX. This part replaces 18391-425-000.

18392-ML0-000

Unavailable

14

GASKET, EX.

18392-ML0-000

Unavailable

15

GASKET, RR. MUFFLER

18392-MJ4-670

$14.41

15

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$14.41

16

PIPE, L. RR. EX. (NOT AVAILABLE)

18420-MB3-003

Unavailable

17

RUBBER, MUFFLER SETTING

18421-438-000

$5.71

18

COLLAR, MUFFLER MOUNTING

18422-438-000

Unavailable

19

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18425-MB3-003

Unavailable

20

MUFFLER, L. (NOT AVAILABLE)

18430-MB3-003

Unavailable

21

BOLT, FLANGE (8X70) (NOT AVAILABLE)

90112-MB4-000

Unavailable

22

BOLT, FLANGE (8X37) This part replaces 90118-MB4-000.

90118-471-000

$2.96

22

BOLT, FLANGE (8X37)

90118-471-000

$2.96

23

BOLT, FLANGE (10X50) This part replaces 90176-MA5-000.

96400-10050-00

$1.90

23

BOLT, FLANGE (10X50) This part replaces 90176-422-000.

96400-10050-00

$1.90

23

BOLT, FLANGE (10X50)

96400-10050-00

$1.90

24

NUT, CAP (6MM)

90304-438-000

$6.64

25

WASHER, SPECIAL (10MM) (NOT AVAILABLE)

90557-438-000

Unavailable

26

SCREW, PAN (6X8)

93500-06008-4J

$2.09

27

SCREW-WASHER (6X16)

93891-06016-00

Unavailable

28

NUT, FLANGE (6MM)

94050-06000

$0.59

29

NUT, FLANGE (8MM)

94050-08080

$0.86

30

NUT, FLANGE (10MM)

94050-10000

$1.41

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

31

WASHER, PLAIN (6MM)

94101-06800

Unavailable

32

WASHER, SPRING (6MM)

94111-06000

$0.86

33

RUBBER A, STAND STOPPER

95011-61000

$1.13
